Delta WASP 2040 Clay

£3,583.80 £2,986.50
SKU
DLT20008

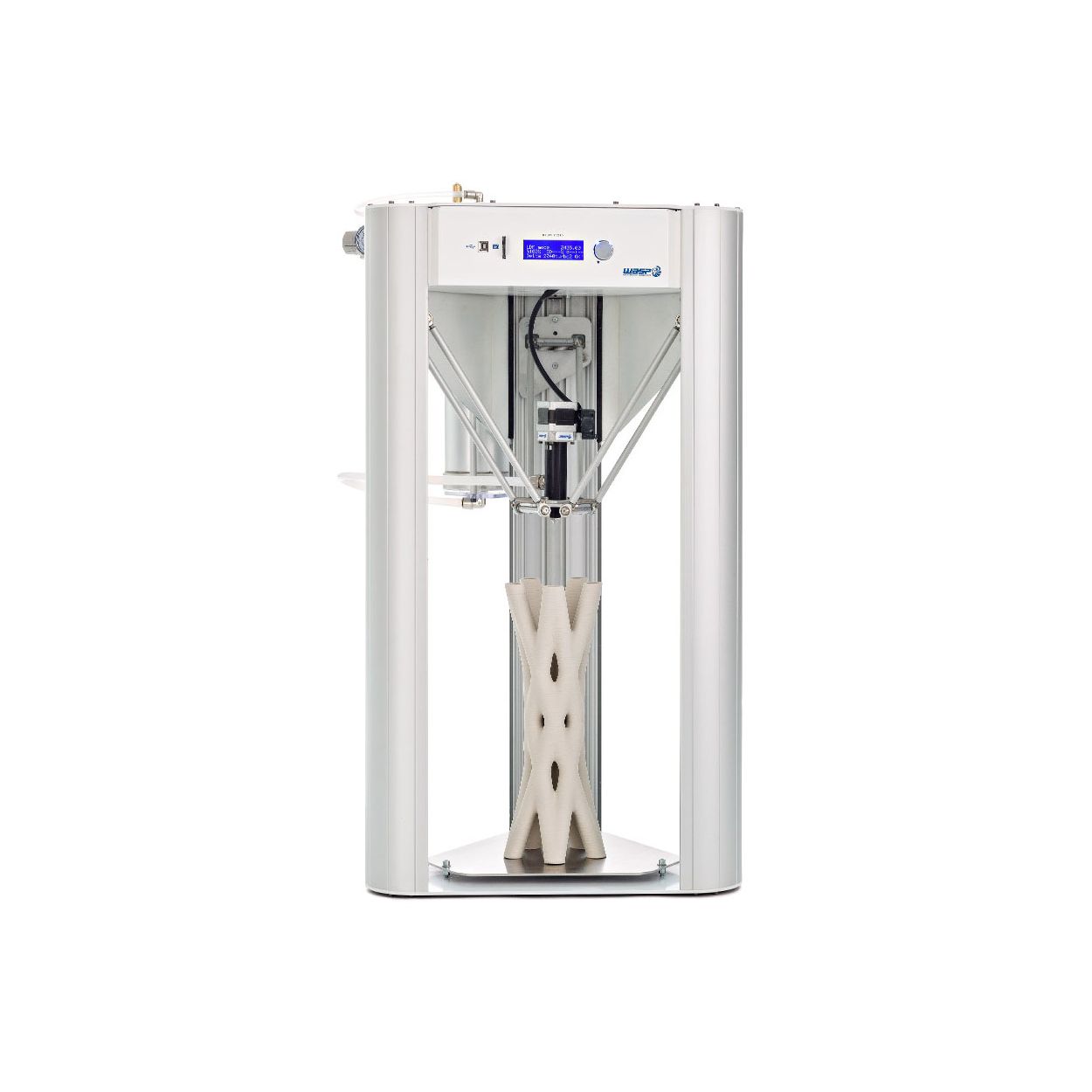

Delta Wasp 2040 Clay

The Delta WASP 2040 Clay is a unique and fast delta Clay 3D printer. This 3D printer prints clay and other dense materials with speeds of up to 150mm/s, and can print highly detailed objects with layer heights down to 0.5 mm. The delta configuration maximises the build volume while minimising the space required on the desk.


Clay Only Model

The Delta WASP 2040 Clay 3D printer cannot be used with plastic solutions, only ceramic. This printer is designed to work specially with dense fluid materials such as clay, extruding it to create pieces of the highest quality. If you want to be able to print plastic and clay then the original Delta WASP 2040 Pro comes fitted with a plastic extruder and a separate clay extruder option so you can switch between printing plastics and ceramics.


Innovated Design

The Delta WASP 2040 Clay 3D Printer has an extruder pressure chamber mounted into the machine so that you only need to provide compressed air to get an integrated clay solution. The print platform has an adjustable sliding-system on bearings that guarantee excellent stability. In addition it has an open frame for better access, which is beneficial for clay modelling.

*When printing with dense materials on clay 3D printers, you will need to use an air compressor to get rid of all the air bubbles in the material tank, this is so the mixture can flow through the extruder smoothly without any breaks. You can use any EU specified air compressor with 3.5 - 5.5 bar pressure, which you can get online or at a hardware store. The printer comes with a pressure gauge and all fittings included to connect the air compressor to the tank.


Delta Geometric System

Other FDM 3D printers work on the Cartesian System providing an x, y, and zed axis. The Delta WASP 2040 Clay uses the Delta Geometric System, which consists of 3 main arms connecting to the extruder, which move up and down independently. The position of the extruder is calculated by using trigonometric functions. This results in the printed product being more precise as inertia is inherently lower.


Suspended Cushioned Bowden System

The inertia surrounding the extruder can cause inaccuracy in 3D prints. WASP developed the Suspended Bowden System on the Delta WASP 2040 Clay Line to further disperse the inertia onto hanging elastic 'gantries', which have improved the printing the speed and quality.


Resurrection System

The Delta WASP 2040 Clay features the Wasp signature Resurrection System, which is an auto-save and back up feature created by WASP’s engineers, allowing you to stop 3D printing before completion and continue hours, days or weeks later from where you left off. The need to stop or interrupt print production and to get it back to it in the future at the same point where it was left inspired WASP to evolve the function of “stop and save” i.e. Resurrection.


Free Zed System

As well as a resurrection system, the Delta WASP 2040 Clay 3D Printer also has the Free Zed System, a new and different solution to recovering prints. The Free Zed System can recover prints where it is not possible to use the resurrection function, or if after you have your print has been resurrected, the print is not to standard and needs to be reprinted.

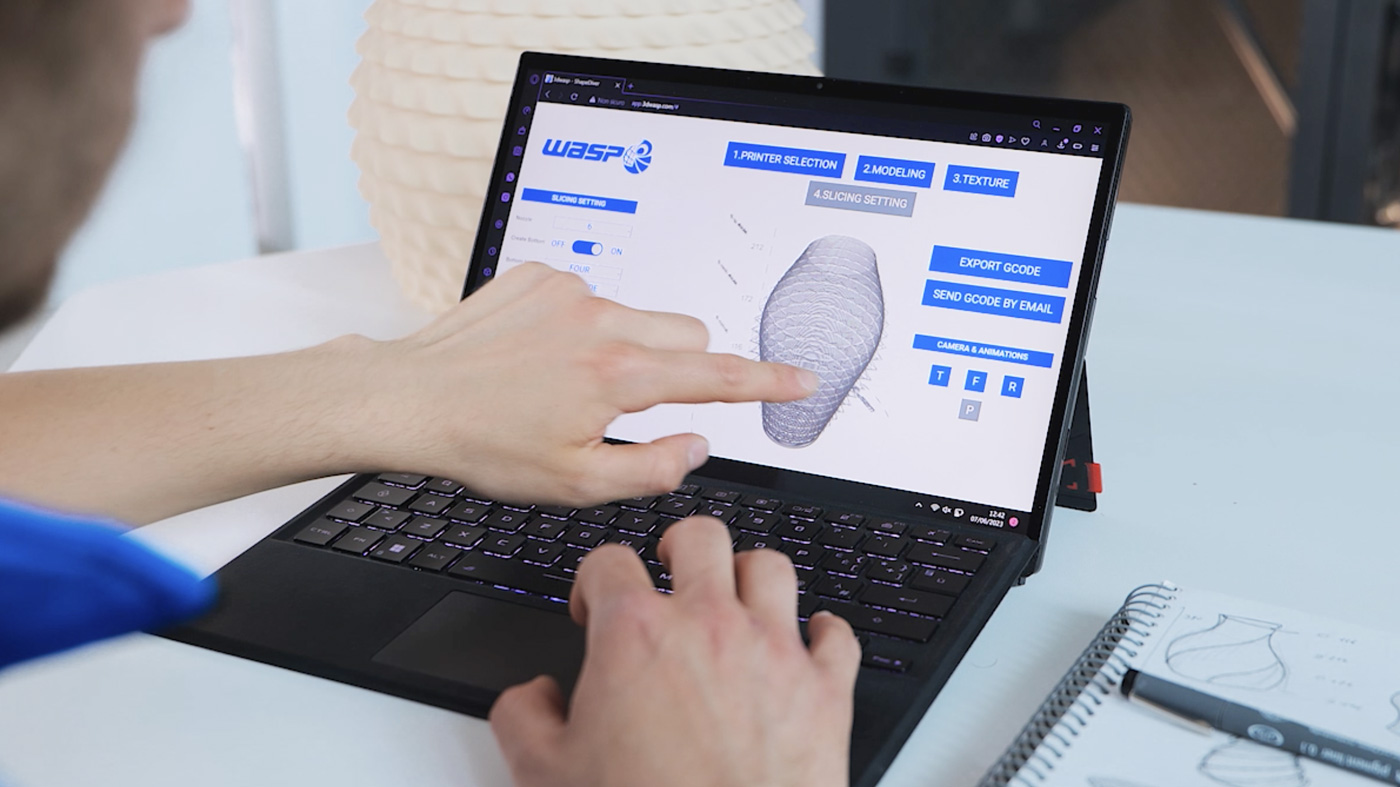

User Friendly Interface

The Delta WASP 2040 Clay offers a new 32 bit industrial quality proprietary board for improved speed, an LCD Display, built-in Wi-Fi and SD Card compatibility. It is also compatible with Windows, Mac, and Linux operating systems. File extensions include: .stl, .gcode, .obj.

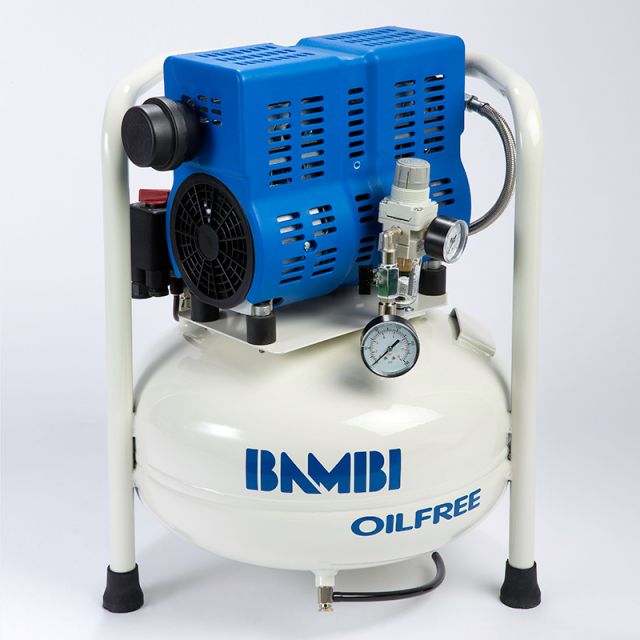

PT and VT Air Compressors

Embark on a new era of tranquillity and efficiency with Bambi's PT Range, PT24 & PT50 – a testament to over 40 years of air compressor manufacturing expertise. Designed for ultra-quiet, oil-free operation, the PT compressors deliver an acoustic experience from just 52 dB(A), making them ideal for diverse applications. Benefit from 100% oil-free operation, low maintenance, and a compact design suitable for tight spaces. Click here to find out more!


Discover precision and reliability in compressed air technology with Bambi's VT Oil Free Compressor series, VT75 & VT150. Crafted with a focus on quality, these compressors feature a revolutionary Vee Twin pump unit, employing cutting-edge "tilting piston" technology for remarkably low noise levels. Whether for dentistry, scientific labs, food packaging, or other critical applications, the VT range guarantees superior air quality and minimal maintenance. Explore the soft start valve, internally coated receivers, and optional air dryer unit, ensuring unmatched performance. Elevate your standards with Bambi VT – where excellence meets innovation. Click here to find out more!

More Information
Technical Specifications

Tech Specs

Build Volume: Ø 200 x h 400 mm
Minimum Layer Height: 0.5 mm
Print Speed Max: 150 mm/s
Travel Speed Max: 150 mm/s
Acceleration: 500 mm/s2
Nozzle Diameter (Standard Wasp LDM Extruder): 1.2 mm
Material: Porcelain
Hearthware
Gres
Refractory
Clay
Extruders: LDM Wasp Extruder - stainless steel nozzle diameter 1.2mm
Operating Systems: Windows, Mac, Linux

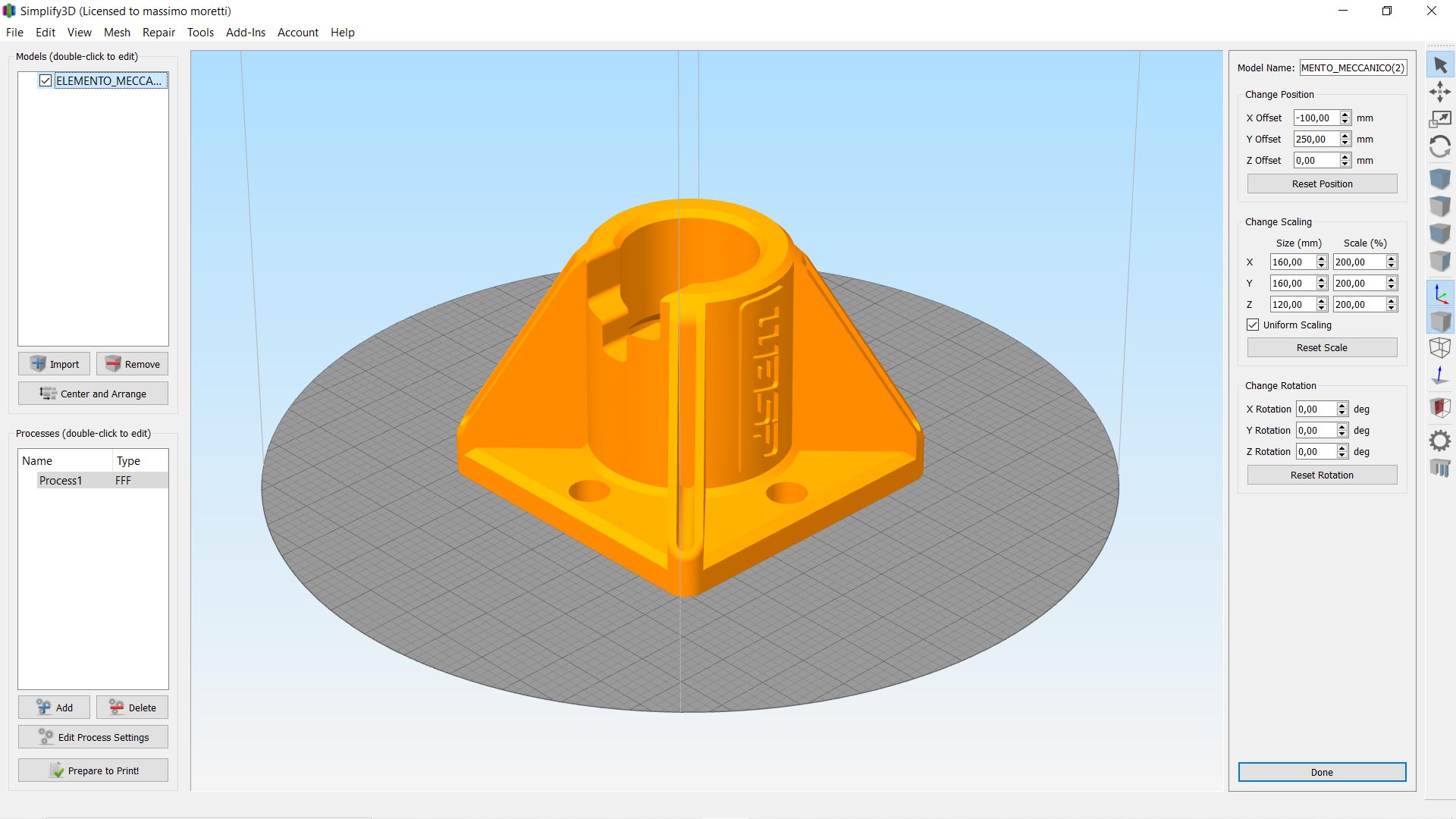

Software slicing: Cura – SLic3r – Simplify 3d
File type: .stl, .obj, .gcode
Interface: SD Card – LCD Screen
Supply: 29V Industrial power supply
Input: 220/240 V 50/60 Hz
Temperature: Use - 20-30 °C
Warehouse - 0-30 °C
Dimensions: 49cm x 44cm x 87cm
Machine weight: 40kg
Standard Equipment: 1 LDM Wasp extruder with stainless steel nozzle diam. 1.2mm

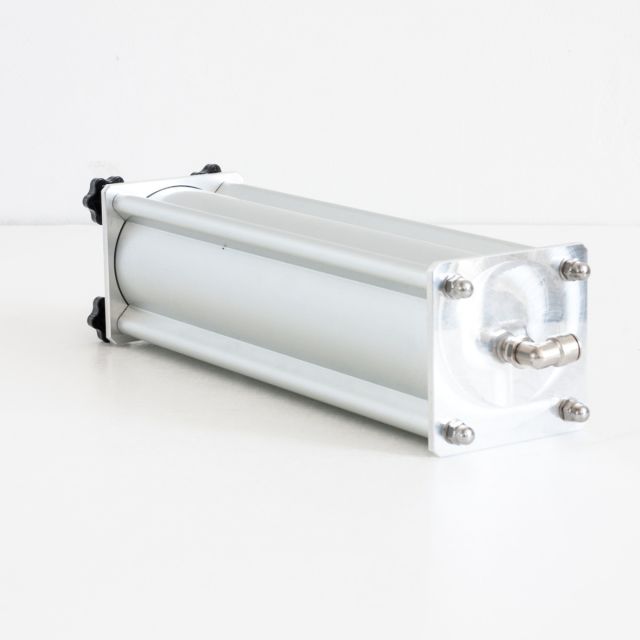

1 3L tank
1 print platform in Marine Multilayer
10kg of porcelain
Technical innovation: Extruder with controlled material delivery by screw (2013)
Integrated air pressure control on the printer
New sliding-system on bearings to guarantee excellent stability
Dedicated firmware
Free Zed System: It allows to print a file from a precise height of the model to be printed, height previously selected. Find out more about how it works here.
Resurrection System: It is a system which allow users to save their print job and resume it in the case of power failure.
Warranty: All of our machines come with a standard 12 month return to base warranty (parts only), this means “you the customer" are responsible for sending the item back to us. All return shipping costs for warranty work are at the cost of the customer and the return must be sent back in the original packaging. Please check the Shipping & Returns page for more warranty information.
Write Your Own Review
You're reviewing:Delta WASP 2040 Clay

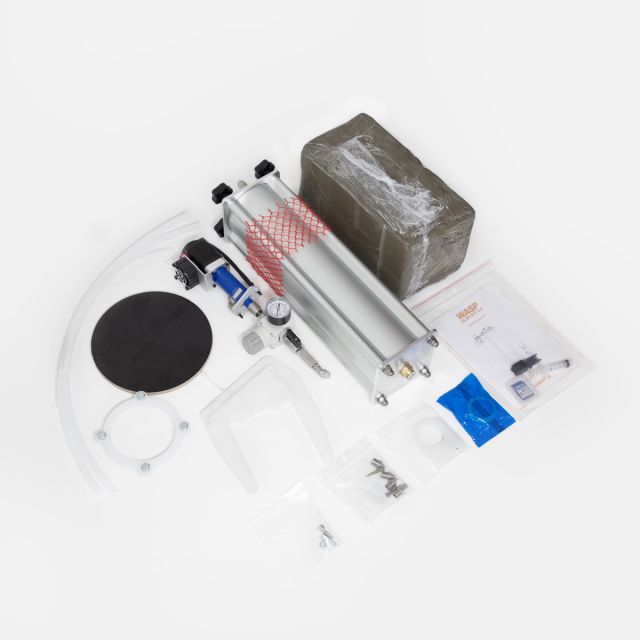

What's in the Box

  • 1 LDM Wasp Extruder with stainless steel nozzle diam. 1.2mm, 2mm
  • 1 x 3L Tank
  • 10kg porcelain clay
  • 1 x Print Platform - Marine Ply
  • Packaging for national/international shipping in wooden box (50 x 58 x 101 cm), weight 50kg

Built to Order - Typically 3 weeks
