Delta WASP 3MT Industrial 4.0 LDM

Delta Wasp 3MT Industrial 4.0 LDM

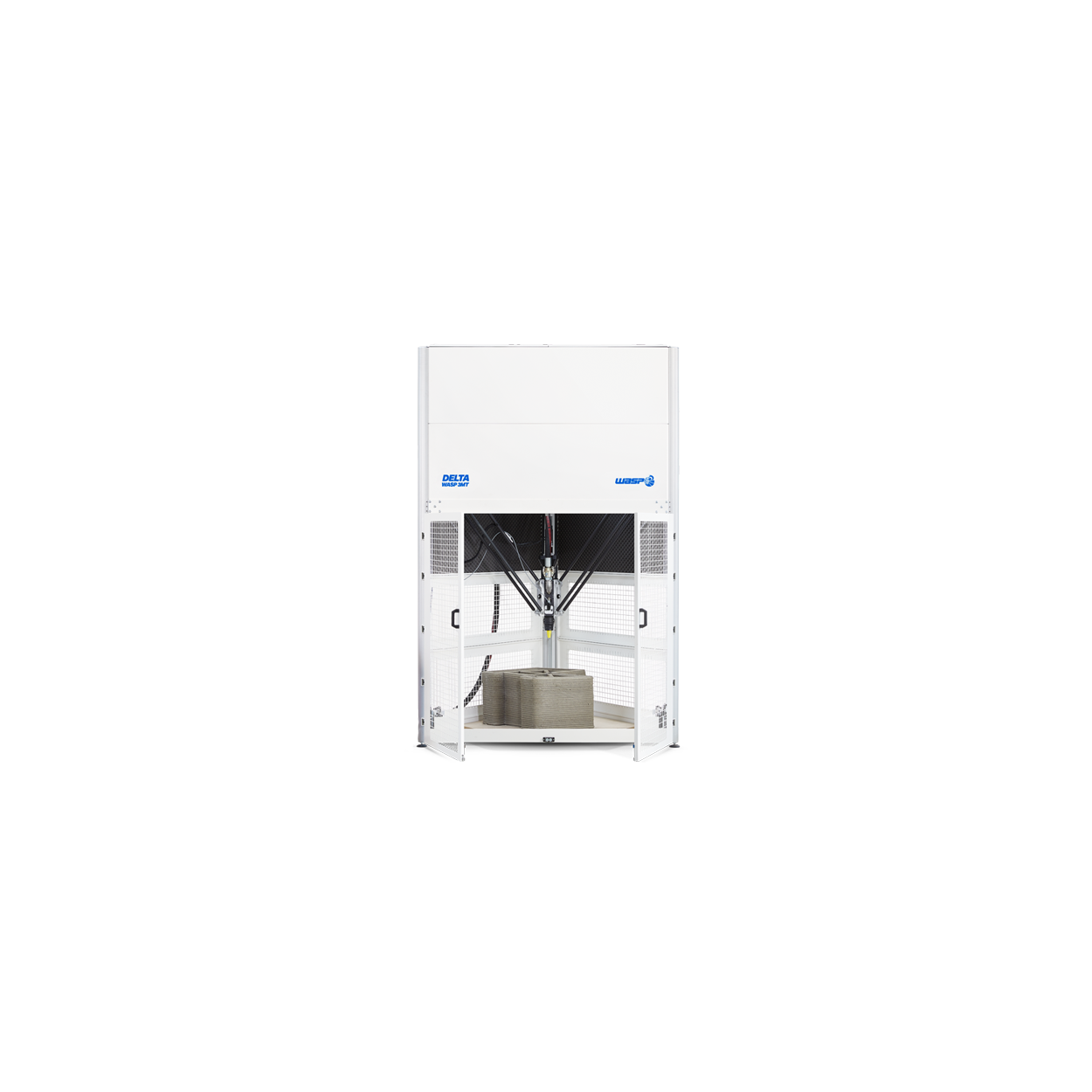

With a closed build area of big dimension and its unique versatility, the professional 3D printer Delta WASP 3MT INDUSTRIAL 4.0 defines a new standard in the world of additive manufacturing. The Delta Wasp 3MT Industrial 4.0 is a multi-tool machine that allows new access to personal large fabrication. This printer is a revolutionary tool that gives users the ability to print large prints that they couldn't do with other 3D printers, loaded with a large print nozzle and giant print bed, this printer enables you to produce immense structures relatively quickly.

Clay Extruders

Wasp has created the LDM WASP Extruders as a new and faster extruder to print with the toughest dense ceramic fluid materials. They have a high torque motor that enables the printing of harder mixtures and therefore faster prints by taking advantage of the entire printing volume of the Delta WASP 3MT Industrial 4.0 LDM. The extruders have a degasser that avoids air bubbles in the mixture, eliminating the probability of air bubbles and reducing the risk of interruptions to the print, guaranteeing smooth results. With this technology it is possible to precisely manage the flow of the output material until the use of the retraction to stop the deposition. The 3MT Industrial 4.0 LDM can come with one of 2 different extruders.

LDM Clay Extruder XL

The LDM Clay Extruder for dense ceramic fluid materials such as clay, porcelain & grès. The LDM Extruder XL comes with the dedicated cap for the 5L tank, the connecting tube from an extruder cap, a conical plastic nozzle and four stainless steel nozzles with different diameters: 4mm, 6mm, 8mm.

LDM Concrete Extruder XXL

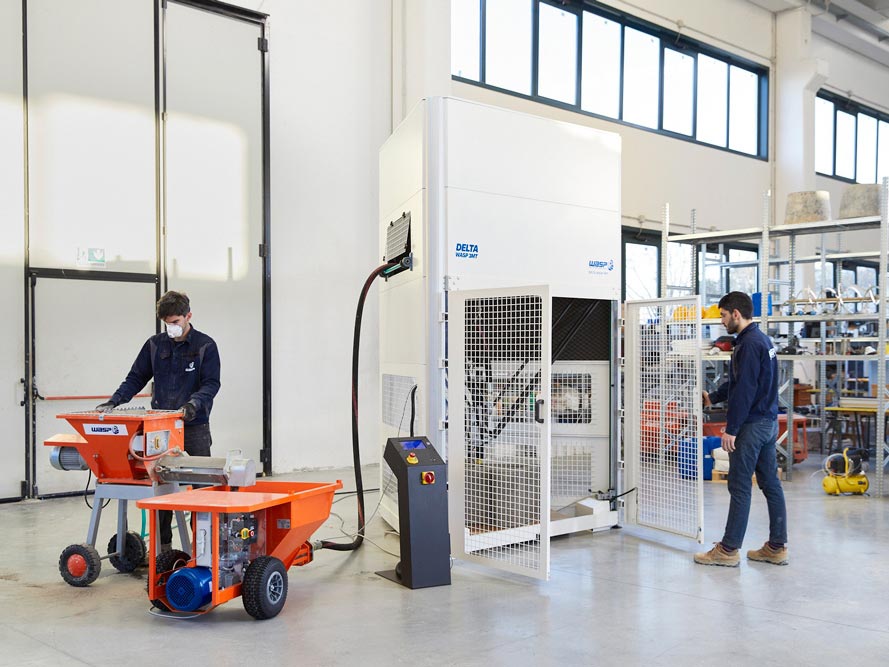

The LDM Clay Extruder XXL is for the dense ceramic fluid materials, but with bigger nozzle diameters of 8mm + 18mm. The LDM WASP Extruder XXL is feeded using a mortar pump that delivers the material through a tube. The flow rate is controlled via a pressure sensor mounted on the extruder inlet, that is capable of continuously measuring the pressure and therefore the flow of outbound material in order to achieve the best extrusion conditions. By using the pump control unit, all the pumping variables can be set according to the type of material and to the paste consistency. Continuous Feeding System consists of: mortar pump (80 l) with control unit, 5 m long tube with pressure sensor at the outlet.

Huge Build Volume

With a huge build volume of Ø1000 x h1000 mm, you will be able to create large scale prints, without the sacrifice of time. Layer thicknesses range between 0.50mm to 2.00mm and the nozzle size is 3mm for fast output of material.

Resurrection System

The Resurrection System is an auto-save and back up feature on the Delta WASP 3MT 3D Printer which allows you to stop 3D printing before completion and continue hours, days or weeks later from where you left off. The need to stop or interrupt print production and to get it back to it in the future at the same point where it was left, has been the motivation to create this new implementation. By interrupting the track to the Arduino with 12 volt and have added a diode and a 10.000 µF-condenser (little battery), WASP have evolved the function of “stop and save.”

Free Zed System

The Free Zed System is a recovery process on the Delta WASP 3MT 3D Printer useful for clay and prototyping which gives you the ability to start printing from anywhere within the 3D print’s instructions. It allows you to print a file starting from a precise height of the model, as long as the height was previously selected. Essentially giving you the ability to print the one half of your design on the Delta WASP 3MT 3D Printer and then begin a new print of the second half.

Delivery & Requirements

The machine travels disassembled and it’s assembled in the work area. The required height for the room of the assembly is 3.6m.
