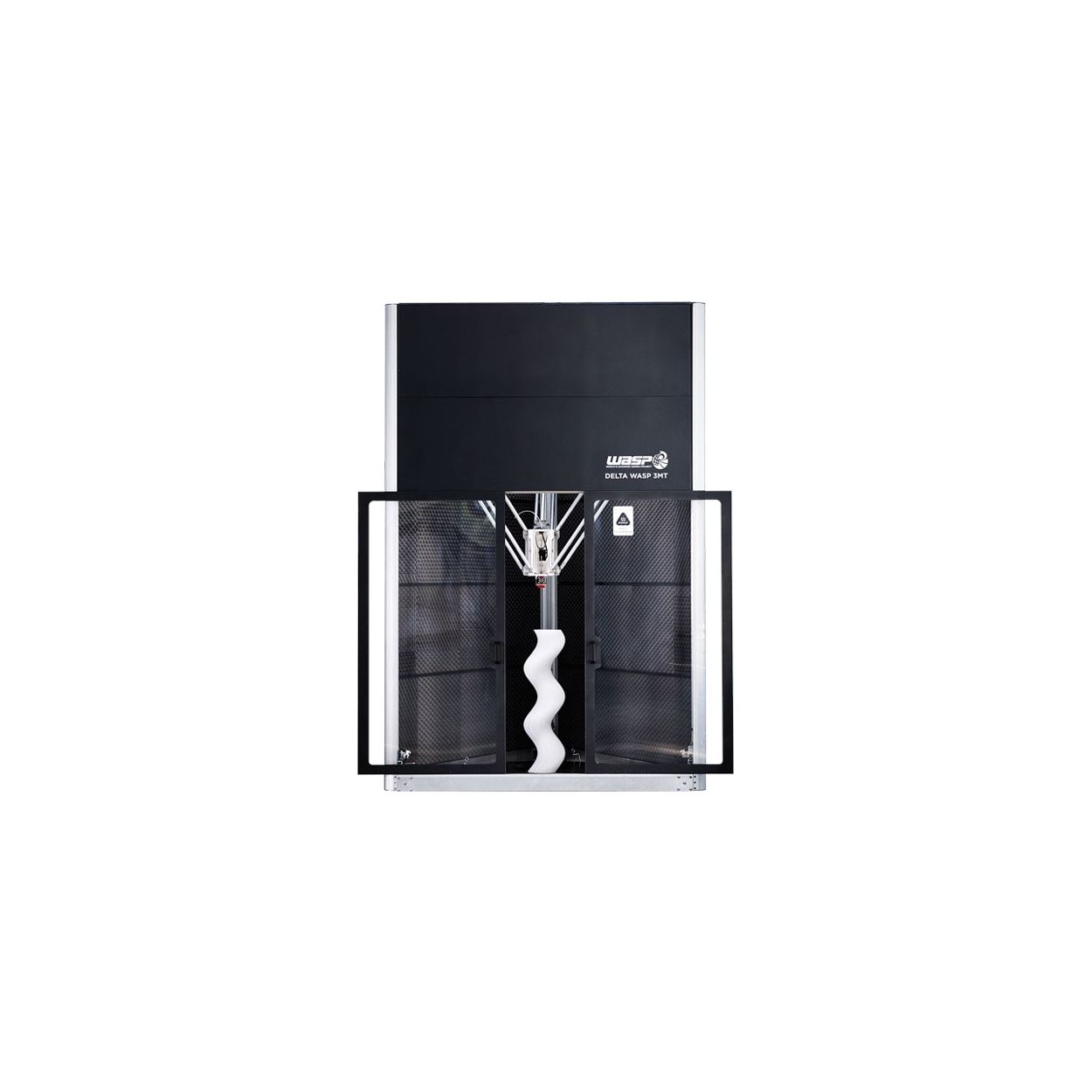

Delta WASP 3MT Industrial 4.0

£28,127.40 £23,439.50
SKU
DLT4013000

*These machines are made to order, please allow 4 - 6 weeks for delivery. The machine also requires assembly in the work area on delivery and will need to be installed by a Wasp technician which will require a separate quotation for NON EU customers. Please contact us regarding this. Space required for assembly: 5.5m x 2.5m x 3.6m (w x d x h).

Delta Wasp 3MT

With a closed build area of big dimension and its unique versatility, the professional 3D printer Delta WASP 3MT INDUSTRIAL 4.0 defines a new standard in the world of additive manufacturing. With the all new auto feeder pellet tank and an end pellet sensor you will achieve an even more reliable and accurate print. The Delta Wasp 3MT Industrial 4.0 is a multi-tool machine that allows new access to personal large fabrication. This printer is a revolutionary tool that gives users the ability to print large prints that they couldn't do with other 3D printers, loaded with a large print nozzle and giant print bed, this printer enables you to produce immense structures relatively quickly.


Huge Build Volume

With a huge build volume of Ø1000 x h1000 mm, you will be able to create large scale prints, without the sacrifice of time. Layer thicknesses range between 0.50mm to 2.00mm and the nozzle size is 3mm for fast output of material.


Interchangeable Extruders

The pellet extruder allows you to print raw polymeric materials such as pellets, opening to a new idea of ecological production. The Red Spitfire extruder provides double the printing speed, whilst still achieving high quality large sized 3D printed objects.


Wasp Spitfire Red Extruder

The Spitfire Red Extruder comes standard on the Delta WASP 3MT. Two different cartridges (offering low or high temperature extrusion) expand the capabilities of this extruder by providing 3 different nozzles (each meeting certain design/material specifications) to fit into the Extruder by a simple adjustment. Newly updated, the Spitfire Red Extruder can heat the nozzle up to 350°C for printing more complex materials. With the Spitfire you can print PLA, PETG, ABS, ASA, PVA, HIPS & Polypropylene.


Wasp Pellet Extruder

The Wasp Continuous Feed Pellet Extruder is for printing with plastic pellets that are normally used in the injection moulding industry. With a nozzle diameter of 3mm, this extruder is optimised for large and strong prints. To provide continuous flow, the extruder requires compressed air up to 8 Bar. With this extruder you will get 3 bins of PLA pellets that in total weigh 22.5kg.


Resurrection System

The Resurrection System is an auto-save and back up feature on the Delta WASP 3MT 3D Printer which allows you to stop 3D printing before completion and continue hours, days or weeks later from where you left off. The need to stop or interrupt print production and to get it back to it in the future at the same point where it was left, has been the motivation to create this new implementation. By interrupting the track to the Arduino with 12 volt and have added a diode and a 10.000 µF-condenser (little battery), WASP have evolved the function of “stop and save.”


Free Zed System

The Free Zed System is a recovery process on the Delta WASP 3MT 3D Printer useful for clay and prototyping which gives you the ability to start printing from anywhere within the 3D print’s instructions. It allows you to print a file starting from a precise height of the model, as long as the height was previously selected. Essentially giving you the ability to print the one half of your design on the Delta WASP 3MT 3D Printer and then begin a new print of the second half.


Delivery & Requirements

The machine travels disassembled and is assembled in the work area. The required height for the room of the assembly is 3.6m.


Installation & Training

Wasp offers an installation and training course for customers in Europe. This consists of standard installation of the 3MT printer, and training from a wasp technician. Travel and accommodation fees for the Wasp technician are included in the cost. Two additional people from you, the customers side are needed, in total 3 people are required.


Consumables Packs - Red Spitfire Only

PLA Pack

  • 3 x Daemon3D Recommends PLA

ABS Pack

  • 3 x Daemon3D Recommends ABS

PETG Pack

  • 3 x PETG White or Black,0.75kg reel

Multi Pack

  • 1 x Daemon3D Recommends PLA
  • 1 x Daemon3D Recommends ABS
  • 1 x PETG, 0.75kg Spool
More Information
Technical Specifications

Tech Specs

Build Volume: Ø 1000 x h 1000 mm (h max 1200 mm)
Minimum Layer Height: 100 Micron (Filament)
500 Micron (Pellets)
Print Speed Max: 200 mm/s
Travel Speed Max: 400 mm/s
Acceleration: 150 mm/s2
Bed Temperature Max: 110°C
Nozzle Diameter (Spitfire Red Extruder): LT 1.2mm
Configurable Tools: Red Spitfire Extruder
Wasp Pellet Extruder
Product Weight: 250 kg
Product Dimensions: 215 cm x 235 cm x 305 cm (Product Dimensions)
Box A - 310 x 60 x 55 cm / Box B - 227 x 60 x 136 cm (Shipping Box Dimensions)
Supported Materials: PLA, ABS, PETG, TPU, Polypropylene, PA
Software: Operating Systems - Windows, Mac, Linux
Slicing Software - compatible with all slicing softwares (Cura, Slic3r, Simplify3D)
File Type - .stl, .obj, .gcode
Interface: Pendrive USB
Wifi Network
Display TFT Touch
Temperature: Use - 20-30°C
Warehouse - 0-30°C
Warranty: All of our machines come with a standard 12 month return to base warranty (parts only), this means “you the customer" are responsible for sending the item back to us. All return shipping costs for warranty work are at the cost of the customer and the return must be sent back in the original packaging. Please check the Shipping & Returns page for more warranty information.
Write Your Own Review
You're reviewing:Delta WASP 3MT Industrial 4.0

What's in the Box

  • Simplify3D License
  • With Pellet Extruder - 3 x 7.5kg pails of PLA Pellets
  • With Red Spitfire Extruder - 2 x 1 kg spool of PLA
  • Packaging for national/international shipping in 2 wooden boxes - box A: 310 x 60 x 55 cm / box B : 227 x 60 x 136 cm)

Built to Order - Typically 8 weeks
