EinStar 2 3D Scanner
In Stock
Order Now, Ships within 24 hours

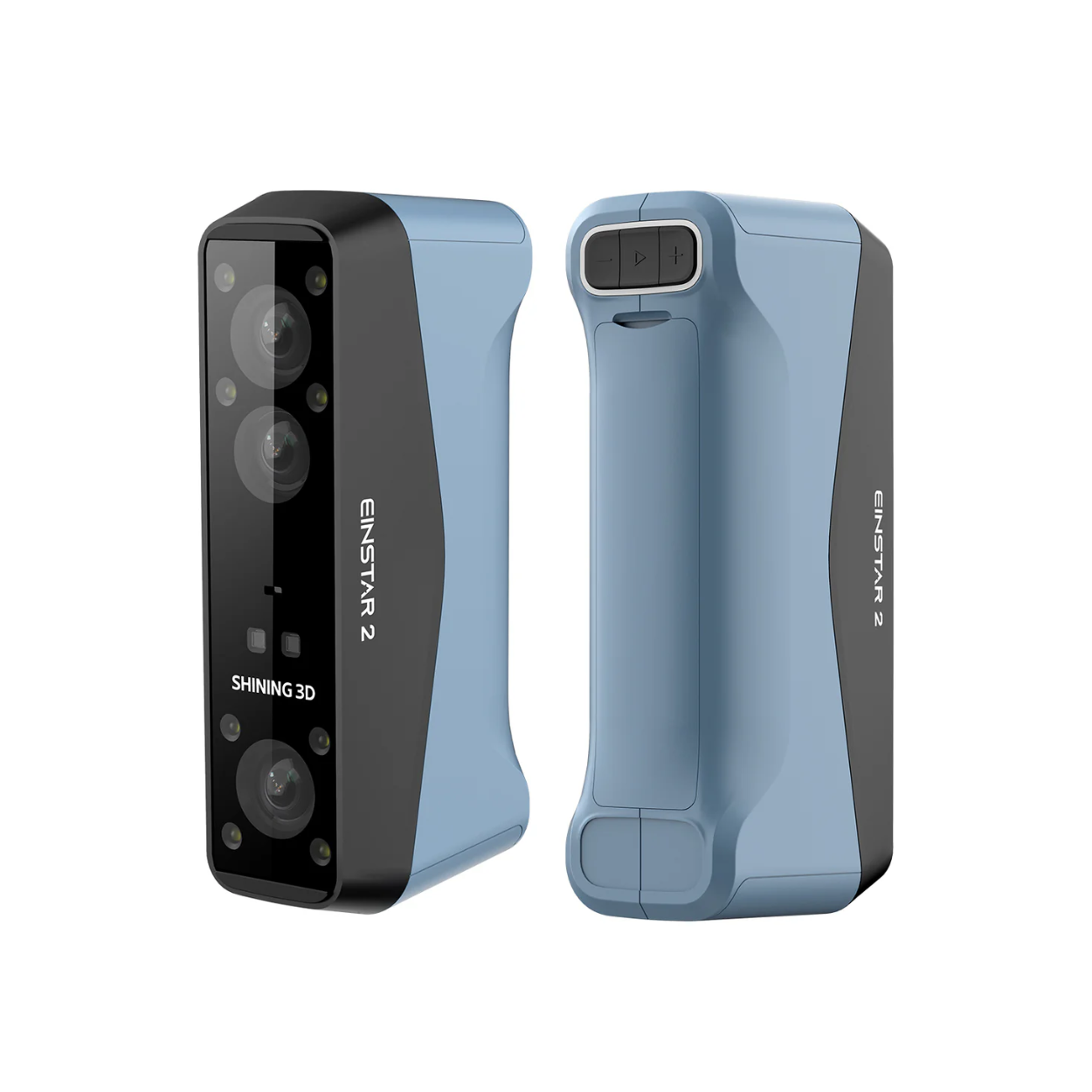

EINSTAR 2 - Wireless handheld 3D scanner (Hybrid Light: Blue Laser + IR VCSEL)
EINSTAR 2 is a palm-sized, wireless handheld scanner designed for fast, reliable capture on real projects. It combines a 17-line blue-laser array for high-detail “Laser HD” scanning with an IR VCSEL “Rapid” mode that’s forgiving on challenging surfaces. At just 420 g with a swappable battery (up to ~3 hours per pack), it’s built for mobile workflows in workshops, studios and on-site work.
Hybrid Light Source for Versatile Scanning
Switch between Laser HD (17 parallel blue laser lines) and IR Rapid (IR VCSEL) to match the job. Use Laser HD for small parts and fine features; use IR Rapid for larger items and surfaces that are dark or reflective.
- Laser HD light source: 17 parallel blue-laser lines
- IR Rapid light source: IR VCSEL for broader coverage
- Surface flexibility: improved performance on dark/reflective materials
- Use-case range: from small components to medium/large objects
Portable, Wireless, and Field-Ready
Cut the cord. EINSTAR 2 runs wirelessly with a swappable built-in battery (approx. up to 3 hours per pack), so you can scan on the move. Prefer tethered? A cable connection is available if you’re in a high-interference environment.
- Weight: ~420 g; dimensions: 130 × 37 × 61 mm
- Battery: swappable; up to ~3 hours runtime per battery
- Wireless workflow (cable option supported)
- IP50 + CE/FCC/ROHS/WEEE/FDA certifications
Speed, Resolution & Working Range
Two scan modes cover detail and throughput. Laser HD focuses on accuracy and fine features; IR Rapid maximises coverage and speed.
- Laser HD — Resolution: 0.05–10 mm; Speed: 2.5 M pts/s; Working distance: 100–600 mm; Max FOV: 490 × 580 mm
- IR Rapid — Resolution: 0.2–10 mm; Speed: 1.44 M pts/s; Working distance: 160–1400 mm; Max FOV: 1170 × 1385 mm
- Alignment (Laser HD): Global Marker / Markers
- Minimum scan volume (Laser HD): 1 × 1 × 1 cm
Software Workflow: EXStar + EXModel
Capture in EXStar, then clean and optimise meshes. For CAD-ready deliverables, use EXModel to convert meshes to parametric solids and speed up downstream work (reverse-engineering, design edits, CAM).
- EXStar v1.2: sharper textures, faster processing, smaller project sizes
- Reduced PC requirements vs earlier versions; runs on Windows 11
- Optional EXModel adds mesh-to-CAD conversion tools
- Exports for common DCC/CAD tools (OBJ/PLY/STL etc.)
Applications & Practical Advantages
EINSTAR 2 is a practical daily driver for capturing physical parts into digital pipelines. Use it for quick design references, reverse-engineering, and textured assets for visualisation or XR.
- Product design & reverse-engineering (fixtures, housings, brackets)
- Digital art & XR (game assets, props, vis)
- Education & labs (portable demos, mobile capture)
- On-site work (battery power, IR mode for tricky surfaces)
| Technical Specifications |
|
|---|
- Carrying Case
- Calibration Board
- Universal Holder (for Calibration Board)
- Power Adapter
- Battery
- Battery Compartment
- Battery Compartment Charging Cable
- Type-C Cable (for Scanner & Battery Compartment)
- 3 mm and 6 mm Markers
- Packing List
- Software Downloads
