Delta Wasp 3MT

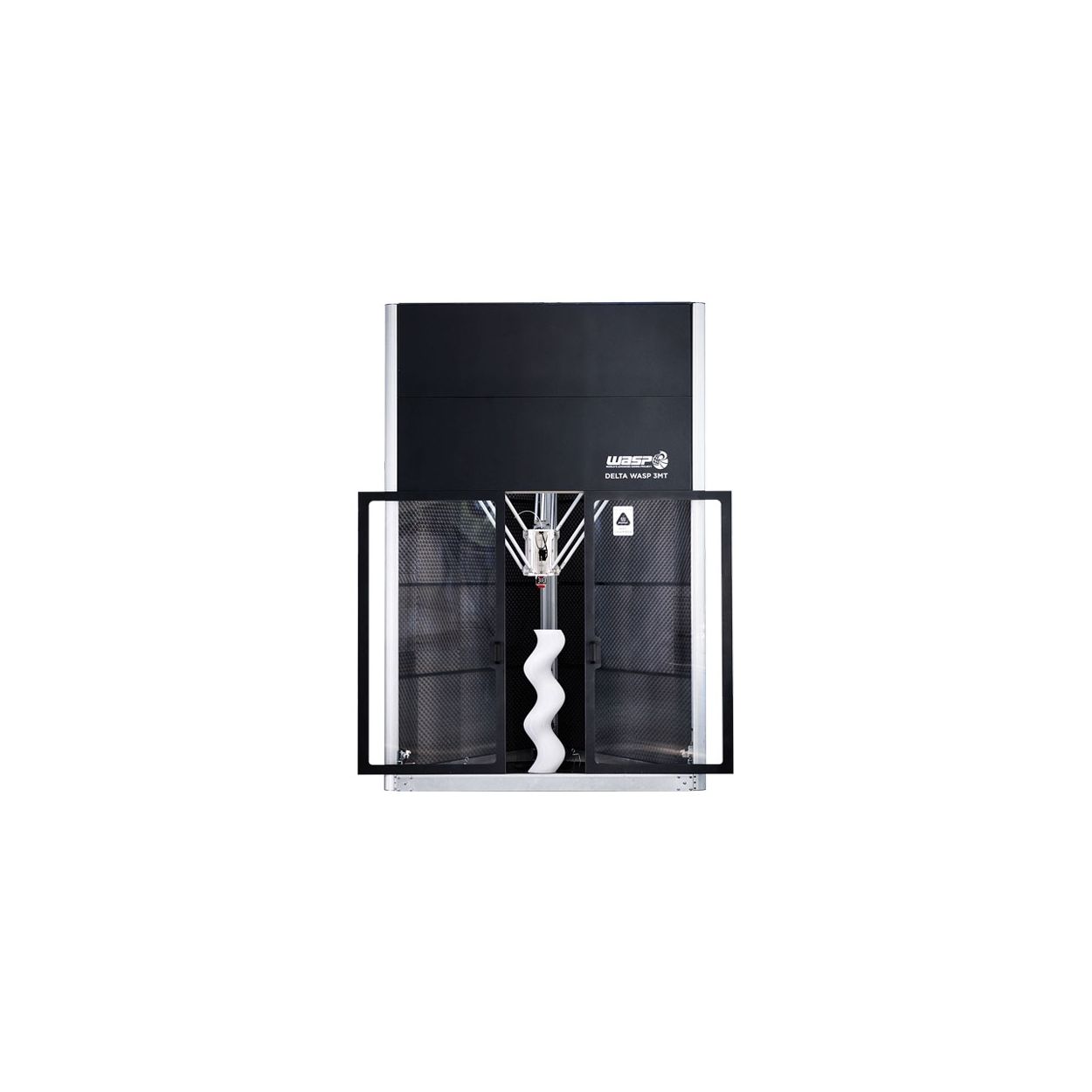

With a closed build area of big dimension and its unique versatility, the professional 3D printer Delta WASP 3MT INDUSTRIAL 4.0 defines a new standard in the world of additive manufacturing. With the all new auto feeder pellet tank and an end pellet sensor you will achieve an even more reliable and accurate print. The Delta Wasp 3MT Industrial 4.0 is a multi-tool machine that allows new access to personal large fabrication. This printer is a revolutionary tool that gives users the ability to print large prints that they couldn't do with other 3D printers, loaded with a large print nozzle and giant print bed, this printer enables you to produce immense structures relatively quickly.

Huge Build Volume

With a huge build volume of Ø1000 x h1000 mm, you will be able to create large scale prints, without the sacrifice of time. Layer thicknesses range between 0.50mm to 2.00mm and the nozzle size is 3mm for fast output of material.

Interchangeable Extruders

The pellet extruder allows you to print raw polymeric materials such as pellets, opening to a new idea of ecological production. The fluid-dense extruder gives shape to concrete, porcelain, but also geopolymers, a structural material for sustainable architecture. The milling machine is a must have in every crafts lab, it can be incorporated with the DeltaWASP 3MT 3D Printer to give you great new possibilities of creation. The Spitfire extruder provides double the printing speed, whilst still achieving high quality large sized 3D printed objects.

Wasp Spitfire Red Extruder

The Spitfire Red Extruder comes standard on the DeltaWASP 3MT. Two different cartridges (offering low or high temperature extrusion) expand the capabilities of this extruder by providing 3 different nozzles (each meeting certain design/material specifications) to fit into the Extruder by a simple adjustment. Newly updated, the Spitfire Red Extruder can heat the nozzle up to 350°C for printing more complex materials. With the Spitfire you can print PLA, PETG, ABS, ASA, PVA, HIPS & Polypropylene.

Wasp Pellet Extruder

The Wasp Pellet Extruder is for printing with plastic pellets that are normally used in the injection moulding industry. With a nozzle diameter of 3mm, this extruder is optimised for large and strong prints. With this extruder you will get 3 bins of PLA pellets that in total weigh 22.5kg.

LDM Wasp Extruder XL

Wasp has created the LDM WASP Extruder XL, a new and faster extruder to print with the toughest dense ceramic fluid materials. The LDM Extruder XL has a high torque motor that enables the printing of harder mixtures, with a degasser extruder that avoids air bubbles in the mixture it eliminates the possibility of air bubbles and reduces the risk of interruptions to the print, guaranteeing smooth results. With this technology it is possible to precisely manage the flow of the output material until the use of the retraction to stop the deposition.

The LDM Extruder XL comes with the dedicated cap for the tank (3L / 5L), the connecting tube from an extruder cap, a conical plastic nozzle and four stainless steel nozzles with different diameters: 2mm, 4mm, 6mm, 8mm. This extruder is only compatible with the Spitfire Red Extruder.

Resurrection System

The Resurrection System is an auto-save and back up feature on the DeltaWASP 3MT 3D Printer which allows you to stop 3D printing before completion and continue hours, days or weeks later from where you left off. The need to stop or interrupt print production and to get it back to it in the future at the same point where it was left, has been the motivation to create this new implementation. By interrupting the track to the Arduino with 12 volt and have added a diode and a 10.000 µF-condenser (little battery), WASP have evolved the function of “stop and save.”

Free Zed System

The Free Zed System is a recovery process on the DeltaWASP 3MT 3D Printer useful for clay and prototyping which gives you the ability to start printing from anywhere within the 3D print’s instructions. It allows you to print a file starting from a precise height of the model, as long as the height was previously selected. Essentially giving you the ability to print the one half of your design on the DeltaWASP 3MT 3D Printer and then begin a new print of the second half.

Delivery & Requirements

The machine travels disassembled and it’s assembled in the work area. The required height for the room of the assembly is 3.6m.
