EinScan H

As low as £4,258.42
SKU
SHG-000023

Available for Pre-Order, stock expected Q4 2020

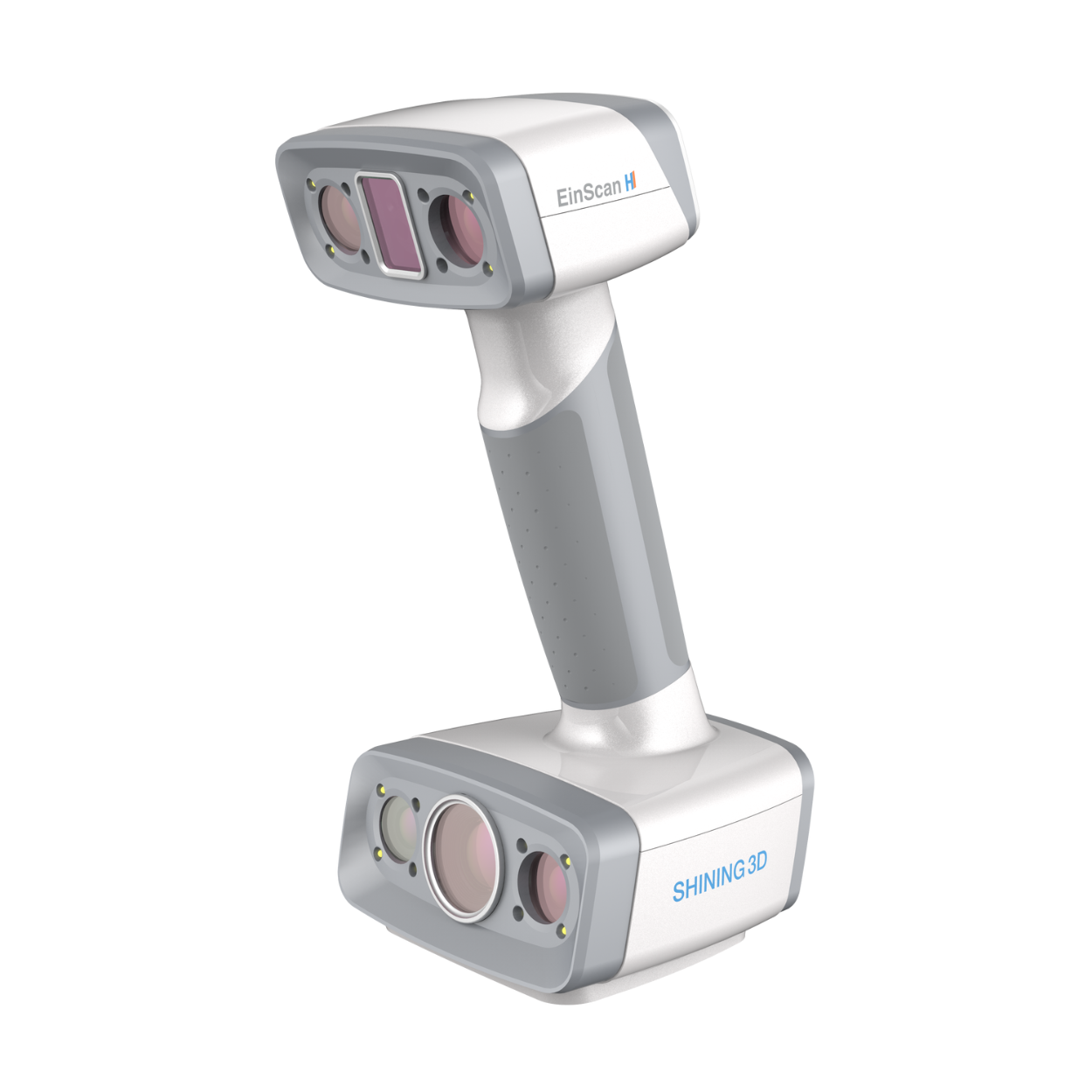

EinScan H


Hybrid LED & infrared light source handheld colour 3D scanner

With strengths of technical accumulation on 3D vision technology in more than a decade, SHINING 3D is now introducing its new developed handheld 3D scanner, EinScan H. Based on hybrid structure light technology of LED and invisible infrared light, EinScan H is making human face scanning more comfortable without strong light. With a built-in colour camera and large field of view, EinScan H provides high quality 3D data with full colour ready-to-use in minutes.


Infrared & Structured Light Hybrid Light Source

Hybrid structure light source technology integrating LED structured light and invisible infrared light into one device and adding advanced smart pre-setting in different scan modes allows 3D scanning in a broad range of applications and promotes the popularization of portable 3D scanning technology.


The Era of Scanning with Hair Acquisition

The invisible infrared light source provides a reliable solution to the problem of acquiring dark-coloured objects and enables an easy acquisition of human hair.


Invisible Light 3D Scanning Experience

The new face scanning mode on the EinScan H adopts invisible infrared light enabling a safe and comfortable scanning process.


Fine Details

Impressive high resolution reaches 0.25 mm, EinScan H captures full geometry of objects such as artwork or furniture with fine details . The high accuracy of scanned data up to 0.05 mm and volumetric accuracy 0.1mm/m improves the precision of 3D modelling in a dense points cloud or polygon meshes.


Fast Scanning

Scan speed up to 1,200,000 points/s and large scan FOV of 420*440 mm ensure fast 3D scanning of large size objects. The optimised alignment algorithm enables efficient alignment despite small movements of the scanned object or person.


Full-colour Reproduction

The built-in colour camera supports full colour texture capturing and tracking by texture.


Portable & Easy Operation

The EinScan H software is intuitive and user-friendly. Easy operation for professional users and beginners alike. Easy to own, easy to use.





More Information

Tech Specs

Scan Mode: Standard Scan Body Scan Face Scan
Light Source: White Light, visible White Light, visible Infrared light, invisible
Safety: LED light (eye-safe LED light (eye-safe CLASS І (eye-safe)
Scan Accuracy: Up to 0.05mm Up to 0.05mm Up to 0.6mm
Volumetric Accuracy*: 0.05+0.1mm/m 0.05+0.1mm/m -
Scan & Align Speed: 1,200,000points/s, 20FPS 1,200,000points/s, 20FPS 720,000points/s, 20FPS
Camera Frame Rate: 55FPS
Align Modes: Markers Alignment, Feature Alignment,
Hybrid Alignment, Texture Alignment
Feature Alignment Feature Alignment
Working Distance: 470mm
Depth of Field: 200-700mm 200-700mm 200-1500mm
Maximum FOV: 420mm*440mm 420mm*440mm 780mm*900mm
Point distance: 0.25mm-3mm 0.5mm-3mm 0.5mm-3mm
Built-in Color Camera: Yes
Color Scanning: Support
Connection Standard: USB3.0
Output Formats: OBJ, STL, ASC, PLY, P3, 3MF
Dimensions: 108mm*110mm*237mm
Weight: 703g
Certifications: CE,FCC,ROHS,WEEE,KC
Recommended Configuration: OS:Win10,64 bit;Graphics card:NVIDIA GTX1080 and higher;Video memory:≥4G;Processor:I7-8700;Memory:≥32GB
Write Your Own Review
You're reviewing:EinScan H

What's in the Box


  • 1 x EinScan H
EinScan H Brochure
(Size: 4.2 MB)
EinScan H Guide
(Size: 1.3 MB)
