EinScan Pro HD R.E.D Bundle

As low as £11,109.88 £9,258.23
SKU
SHG-000020

EinScan Pro HD Reverse Engineering Design Bundle

Meet the completely new EinScan Pro HD Series, the next generation of handheld 3D scanners with the latest technology. Being faster and more accurate than ever before, the EinScan Pro HD will improve the efficiency of high-quality 3D modeling by integrating the High Definition module directly into the Handheld Unit. The EinScan Pro HD differs from the rest of the Pro 2X family by having an enlarged scan range that allows you to scan larger objects with an enhanced, in-built handheld HD scan mode.


What is in the Bundle

For Reverse Engineering Design, the EinScan Pro HD is bundled with GeoMagic and Solid Works (Shining3D edition) which offer a seamless and powerful solution. Use the Pro HD in either handheld mode or with the included tripod & turntable to scan parts of all sizes, convert to CAD and prepare for manufacturing. Simple and efficient, the EinScan Reverse Engineering Design Bundle does the whole process end to end and dovetails into your existing design packages to really fit your business requirements.

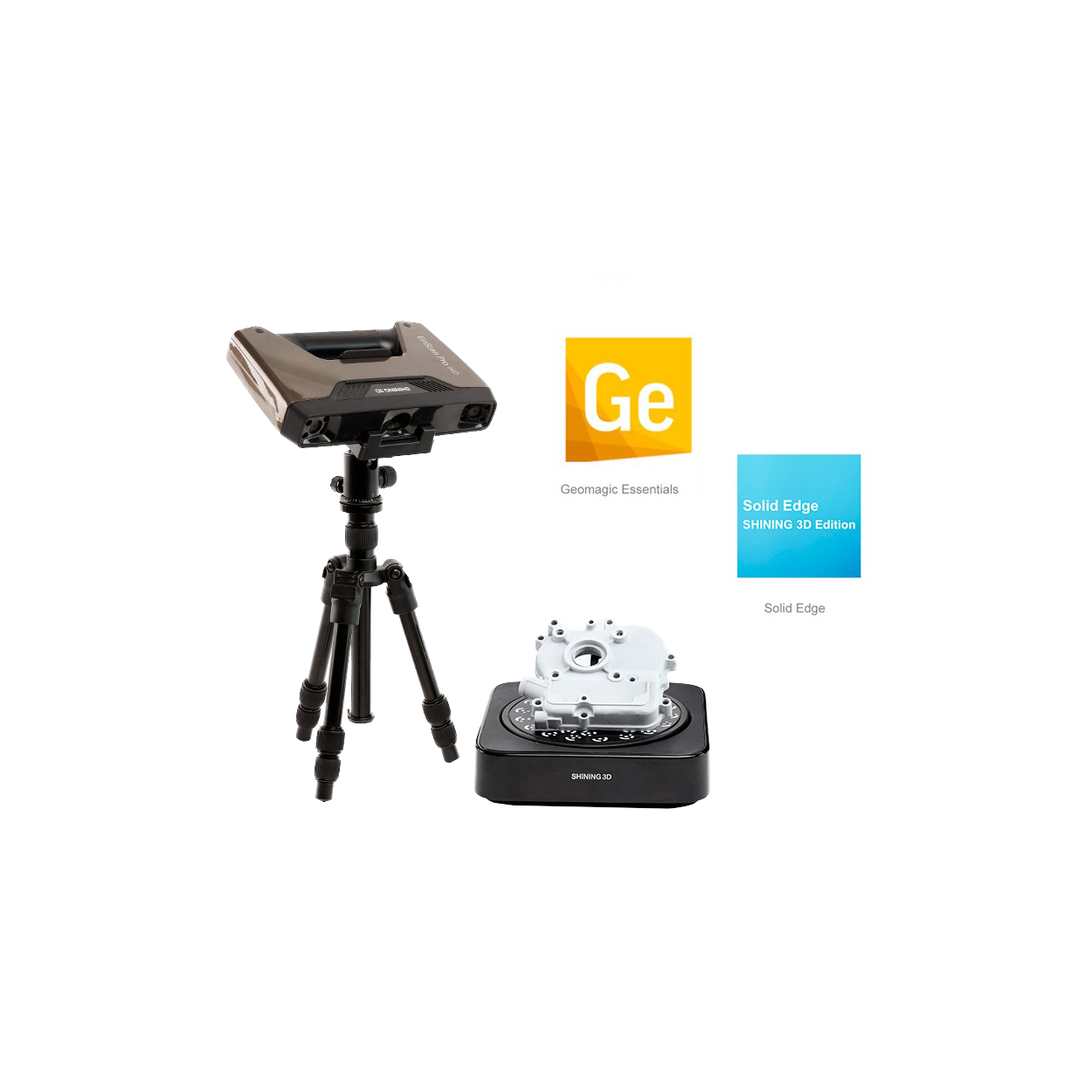

This bundle includes:
  • EinScan Pro HD 3D Scanner
  • EinScan Industrial Pack of Tripod & Turntable
  • GeoMagic Essential Software
  • SolidEdge Shining 3D Edition CAD software

EinScan Industrial Pack

The Industrial Pack adds a Turntable and Tripod into the Reverse Engineering Bundle, allowing you to capture high-accuracy and high-resolution 3D data of small to medium objects. It enables Fixed Scan with or without turntable to achieve high accuracy and detail of scanned 3D data.

The Fixed Scan with Turntable is perfect for completing a 360-degree automatic scan in few minutes. Recommend for small objects, such as industrial components, ornaments, and small artistic pieces.


1 x Geomagic Essentials Scan to CAD Software

Geomagic Essentials provides the tools needed for processing 3D Scan data for scan to print, downstream reverse engineering workflows in your native CAD.

Features:

  • Scan processing allows you to directly edit scan data
  • Manage file size through decimation for faster processing
  • Scan-native application for better performance
  • High quality, automatic CAD conversion
  • Feature extraction to retrieve perfect shapes from scan data
  • Precise geometry allows you to compare design features to scan data for accuracy analysis
  • Convert your 3D scan to a solid format
  • Import all geometry into your native CAD package


1 x Solid Edge Shining 3D Edition

Solid Edge Shining 3D Edition includes reverse engineering, generative design and simulation together with CAD tools on a single platform.

Features:

  • Reverse Engineering
  • Convergent Modelling
  • Synchronous Modelling
  • Simulation
  • Generative Design
  • Additive Manufacturing


Scan Bigger Objects with a Larger Scan Range

The EinScan Pro HD offers a larger scan range than the EinScan Pro 2X, meaning you can scan medium to large objects to higher efficiency and gives you the opportunity for a wider range of applications.


Scan Faster than Ever Before

The latest development in data capture hardware and optimised algorithms, make the next generation EinScan Pro HD series a dramatic breakthrough in scanning speed, processing up to 1,500,000 points per second (30 fps) under Handheld Rapid Scan Mode.

High Speed Data Transmission - USB 3.0


High Accuracy

Single scan accuracy under Fixed Scan without Turntable Mode is up to 0.04 mm. When using markers, the volumetric accuracy under handheld scanning modes is up to 0.05mm+0.3mm/m.


Catch Fine Details

The minimum point distance is up to 0.2mm under Handheld Rapid Scan and Handheld HD Scan modes, generating high resolution 3D data.


Versatile Scan Modes & Align Modes

Supports Handheld Rapid Scan, Handheld HD Scan, Fixed Scan without Turntable, and Fixed Scan with Turntable modes, as well as multiple alignment modes including feature alignment, markers alignment, turntable coded targets alignment, and manual alignment.


Modular Design to Meet Wider Range of Applications

With the and HD capability built in, the Color Pack and Industrial Pack are optional add-ons to the EinScan Pro HD for various scanning experiences and applications.


Colour Pack

By attaching the Colour Pack, the EinScan-Pro HD series can capture not only high-definition detail, but now also full-colour & texture.

Extended Battery Pack

The Extended Battery Pack for the EinScan Pro 2X Plus allows you to use your Handheld Scanner for up to 6 hours without the need to be plugged into a mains supply.

More Information
Technical Specifications

Tech Specs

Configurable Add Ons: Colour Pack
Transport Case
Extended Battery
Scan Accuracy Handheld HD Scan: up to 0.045 mm
Handheld Rapid Scan: up to 0.1 mm
Fixed Scan with Turntable: 0.04 mm (single shot accuracy
Fixed Scan without Turntable: 0.04 mm (single shot accuracy)
Volumetric Accuracy* Handheld HD Scan: 0.3 mm/m (Markers Alignment)
Handheld Rapid Scan: 0.3 mm/m (Markers Alignment)
Fixed Scan with Turntable: /
Fixed Scan without Turntable: /
Scan Speed Handheld HD Scan: 10 frames/s; 3,000,000 points/s
Handheld Rapid Scan: 30 frames/s; 1,500,000 points/s
Fixed Scan with Turntable: Single Scan <0.5s
Fixed Scan without Turntable: Single Scan <0.5s
Point Distance Handheld HD Scan: 0.2 mm - 3 mm
Handheld Rapid Scan: 0.25 mm - 3 mm
Fixed Scan with Turntable: 0.24 mm
Fixed Scan without Turntable: 0.24 mm
Single Scan Range: 209*160 mm — 310*210 mm
Depth of Field: ±100 mm
Working Distance: 510 mm
Light Source: LED
Align Mode Handheld HD Scan: Markers Alignment
Handheld Rapid Scan: Markers Alignment, Feature Alignment (with rich geometrical features on the surface), Hybrid Alignment (Markers and Feature)
Fixed Scan with Turntable: Turntable Coded Targets, Feature, Markers, Manual Alignment
Fixed Scan without Turntable: Markers, Feature, Manual Alignment
Texture Scan Handheld HD Scan: No
Handheld Rapid Scan: Yes (with Add-on: Color Pack)
Fixed Scan with Turntable: Yes (with Add-on: Color Pack)
Fixed Scan without Turntable: Yes (with Add-on: Color Pack)
Outdoor Operation: Set up the shelter or cover to avoid direct sunlight
Special Objects for Scanning: For the transparent, highly reflective or dark objects, please spray powder before scanning
Printable Data Output: Able to export watertight 3D model directly to 3D printing
Output Formats: OBJ; STL; ASC; PLY; P3 ; 3MF
Scanner Body Weight: 1.13kg (include the USB3.0 cable)
Supported OS: Win7; Win8; Win10; (64bit)
Recommended Configuration: Graphics card: NVIDIA GTX1080 and higher; video memory: >4G, processor: I7-8700,
memory: 64G; interface: high-speed USB 3.0
Required Configuration: Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R)
xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
Write Your Own Review
You're reviewing:EinScan Pro HD R.E.D Bundle

What's in The Box

  • 1 x Scanner
  • Einscan Industrial Pack - Tripod & Turntable
  • Solid Edge Shining 3D Edition
  • Geomagic
  • 1 x Power Adaptor
  • 1 x Power Cable
  • 1 x Calibration Board
  • 1 x Calibration Board Support
  • 1 x Markers
  • 1 x USB Drive
  • 1 x Markers Remover/Module Port Cap Lifter
  • 1 x Phone Screen Mount
  • 1 x Cable Clip
Icon Label Description Type Size Download
pdf EinScan Pro HD Guide Book pdf 1.1 MB Download
pdf EinScan Comparison Sheet pdf Download
