WASP 40100 Clay Continuous Feed System

£7,923.46 £6,602.88
SKU
DLK00CFCLAY2

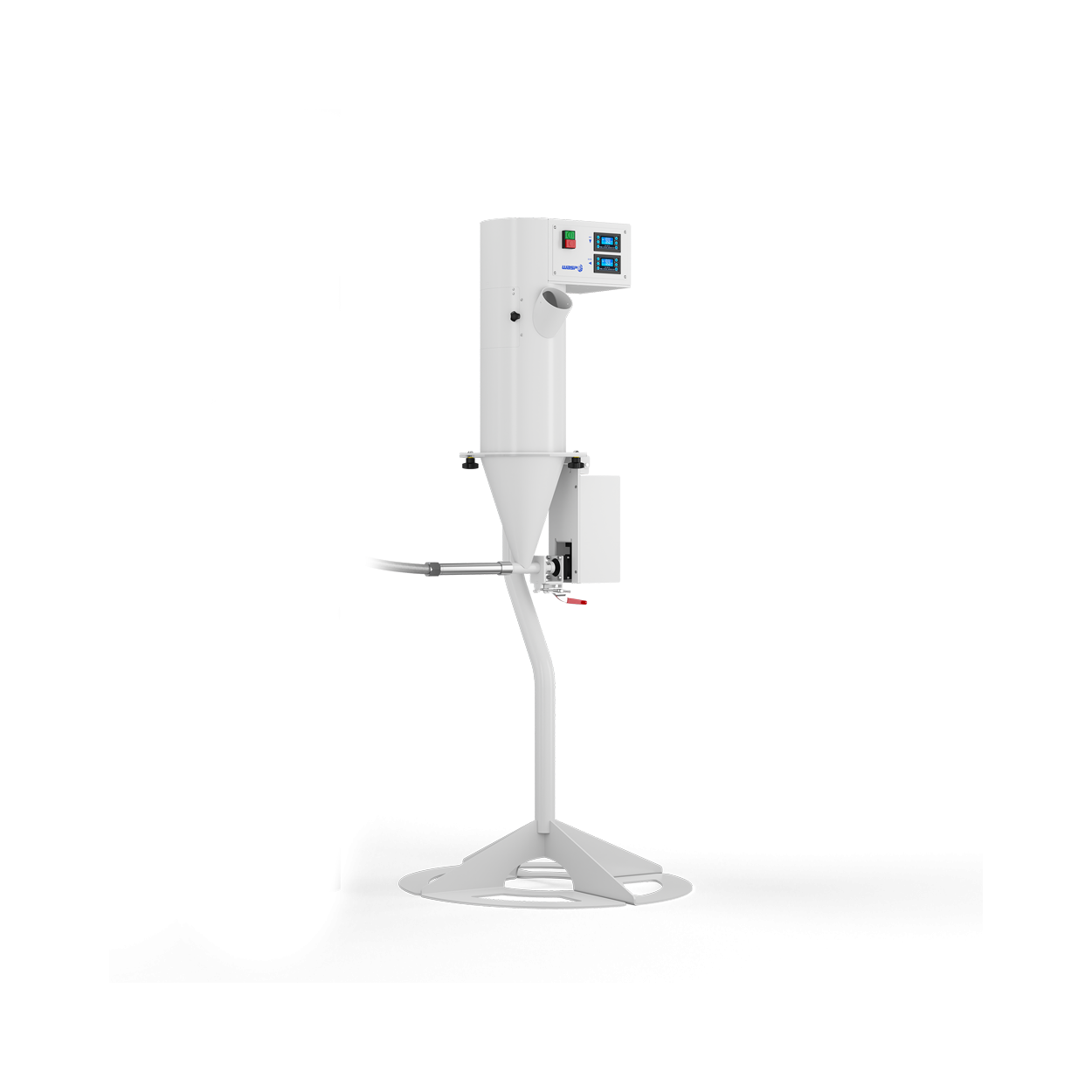

Continuous Feed System Wasp 40100 Clay Extruder

Introducing the world's first continuous feed system for dense fluid materials for additive manufacturing that replaces the limited capacity tank with a theoretically infinite feed system.

Revolutionising Ceramic Industry

The Wasp 40100 Clay Extruder Continuous Feed System responds to the needs of the additive market in the ceramic sector in the production sector by replacing the 5l aluminium tank with a pump to print without ever running out of material. With the continuous feed, not only are the tank and compressor no longer needed, but you can also handle harder materials and print faster with consistent material flows.

Infinity Printing

Wasp 40100 Clay Extruder Continuous Feed System can be fed continuously without ever interrupting the printing process. The material, after being mixed and brought to the correct consistency for printing, can then be introduced prior to starting the system from the large side door and subsequently from the circular inlet during the printing phase.

It no longer matters that the material is compacted and degassed before being introduced, as the constant movement of the mixer has the task of removing all air bubbles.

The lower transport area has an auger which pushes the material up to the extruder mounted on the printer. The mesh tube is solid enough to work in harmony with the whole system without creating particular efforts for either the 3D printer or the Wasp 40100 Clay Extruder Continuous Feed System.

The Wasp 40100 Clay Extruder Continuous Feed System enjoys ease of disassembly, designed primarily for cleaning and maintenance.

The Wasp 40100 Clay Extruder Compatibility

The Wasp 40100 Clay Extruder Continuous Feed System is ONLY compatible with the Delta WASP 40100 Clay as a stand-alone kit and the rotation speeds of the elements can be controlled from the two integrated LCD displays.

More Information
RM 48 shipping rule No
Technical Specifications
Light Source Infrared VCSEL structured light*
Point Distance 0.1mm ~ 3mm
Effective Working Distance 160 mm ~ 1400
Optimal Working Distance 400 mm
FOV (under optimal work distance) 434 mm x 379 mm
Scan Rate Up to 14 fps
Data Alignment Mode Texture/ Feature/ Hybrid Alignment/ Global Markers*
Full Colour Scanning Yes
Outdoor Scanning Yes
Output Formats OBJ, STL, PLY, ASC, 3MF, P3
Scanner Weight 0.5 kg
Scanner Dimensions 220 mm x 46 mm x 55 mm
Carrying Case Dimensions 245 mm x 245 mm x 90 mm
Interface USB 2.0 or above
Supported OS Windows 10/11 64-bit
Write Your Own Review
You're reviewing:WASP 40100 Clay Continuous Feed System
  • Connection harness for Delta WASP 40100 Clay
  • Continuous Feeding System
  • WASP LDM XL 3.0 extruder with special connection flange
  • PTFE/INOX mesh tube
  • Rotating stand for Continuous Feed System
