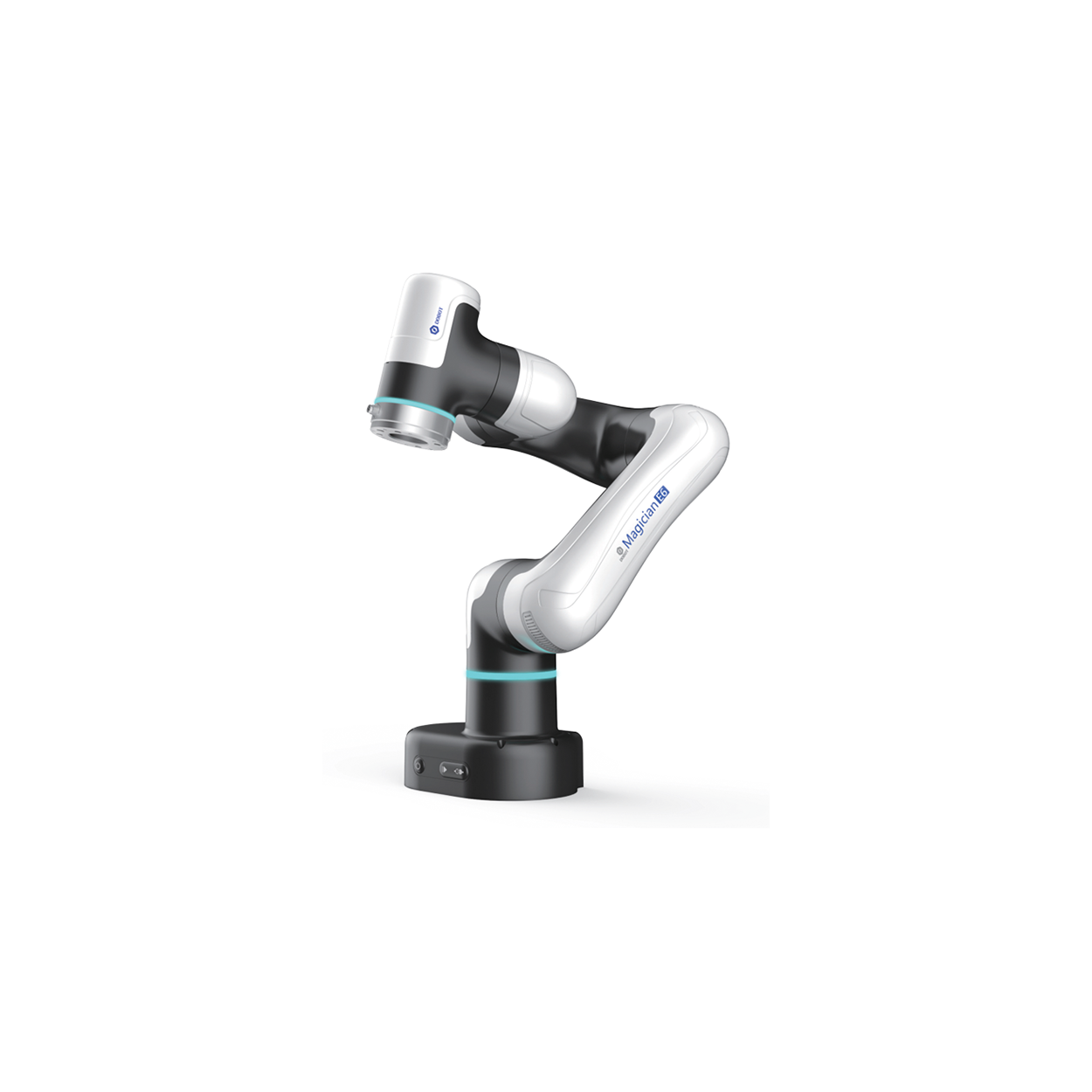

Dobot Robotics E6 – 6-Axis Collaborative Robot Arm
The Dobot E6 is a high-precision, compact, and safe 6-axis collaborative robot designed for modern automation, R&D, and education. With a 6 kg payload, 917 mm reach, and ±0.03 mm repeatability, the E6 combines strength, accuracy, and flexibility — ideal for small-scale manufacturing, assembly, testing, and robotic training environments.
Industrial Precision with Full Motion Control
Designed for efficiency and versatility, the Dobot E6 features six degrees of freedom for unrestricted movement, enabling detailed handling, screw-driving, and inspection tasks. Its lightweight 23 kg body is easy to integrate into workbenches or multi-robot setups, while the high repeatability ensures consistent precision across continuous operations.
- Payload: 6 kg
- Reach: 917 mm
- Repeatability: ±0.03 mm
- Degrees of Freedom: 6
- Weight: 23 kg
Flexible Programming and Integration
The E6 supports DobotStudio Pro and DobotSC Studio software, offering graphical programming and code-based control through Python, C++, and ROS. Its open SDK and communication interfaces (TCP/IP, Modbus, EtherNet/IP) make it compatible with industrial systems, vision modules, and educational platforms alike.
- Compatible with Blockly, Python, and ROS
- Open SDK for advanced control
- Supports vision modules and conveyors
- Tool I/O: Digital, Analog, RS485
Safe, Collaborative, and Ready to Deploy
Built for safe collaboration, the E6 includes collision detection and joint torque feedback for human-robot interaction without external barriers. Its 24 V DC power supply enables low-energy operation and easy portability between workstations, making it ideal for both classroom demonstrations and production use.
- Integrated collision detection
- Torque-based safety control
- 24 V DC low-voltage operation
- Compact design for educational and industrial use
| Technical Specifications |
|
|---|
What's in the Box
- 1 x Dobot Robotics E6
