NEW Einscan Transcan C
The EinScan Transcan C is a professional-grade 3D scanner that captures exceptionally high resolution and accurate scans of objects from small to medium for various industries. In addition, the 12 mega-pixel cameras produce rich and detailed textured 3D models, giving an intuitionistic image of the physical object.
- Adjustable scanning range to meet various object scanning needs.
- Smoothly interchange between 3 levels of resolution in one project to create great detail with high efficiency.
- 12 MP professional colour cameras provide rich and detailed colour textured 3D model.
EinScan HX
Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into the EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting the multiple needs of users.
- High resolution and accuracy
- Minimum point distance 0.05 mm
- Accuracy up to 0.04 mm under Laser Scan/li>
- Processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s
- EinScan HX is plug and play with user-friendly software which is easy to operate

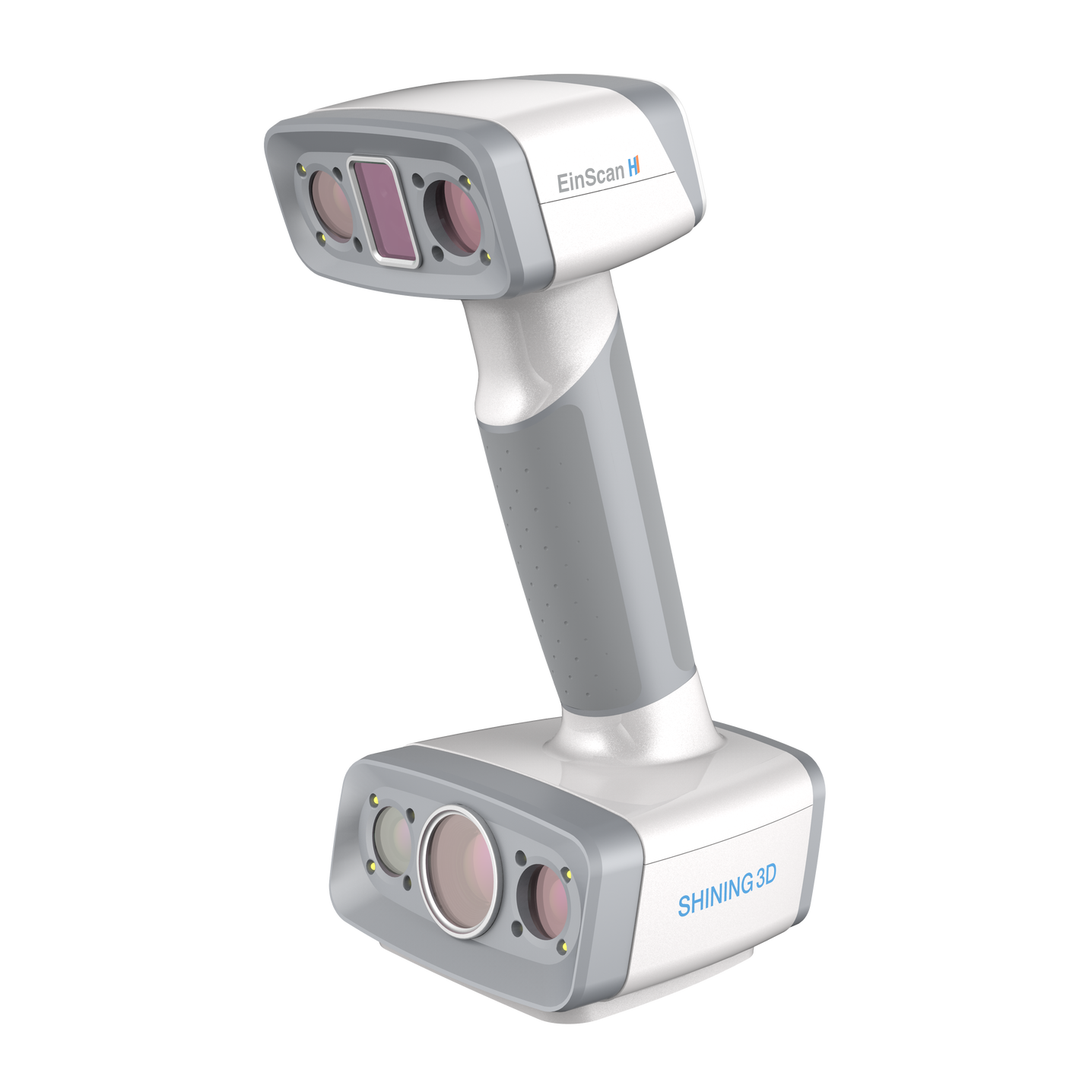

EinScan H
Based on hybrid structure light technology of LED and invisible infrared light, the EinScan H is making human face-scanning more comfortable without strong light. With a built-in colour camera and large field of view, EinScan H provides high-quality 3D data with full-colour ready-to-use in minutes.
- The new face scanning mode adopts invisible infrared light enabling a safe and comfortable scanning process
- Impressive high resolution reaches 0.25 mm, capturing full geometry of objects such as artwork or furniture with fine details
- Scan speed up to 1,200,000 points/s and large scan FOV of 420*440 mm ensure fast 3D scanning of large size objects
- The built-in colour camera supports full colour texture capturing and tracking by texture
- The EinScan H software is intuitive and user-friendly

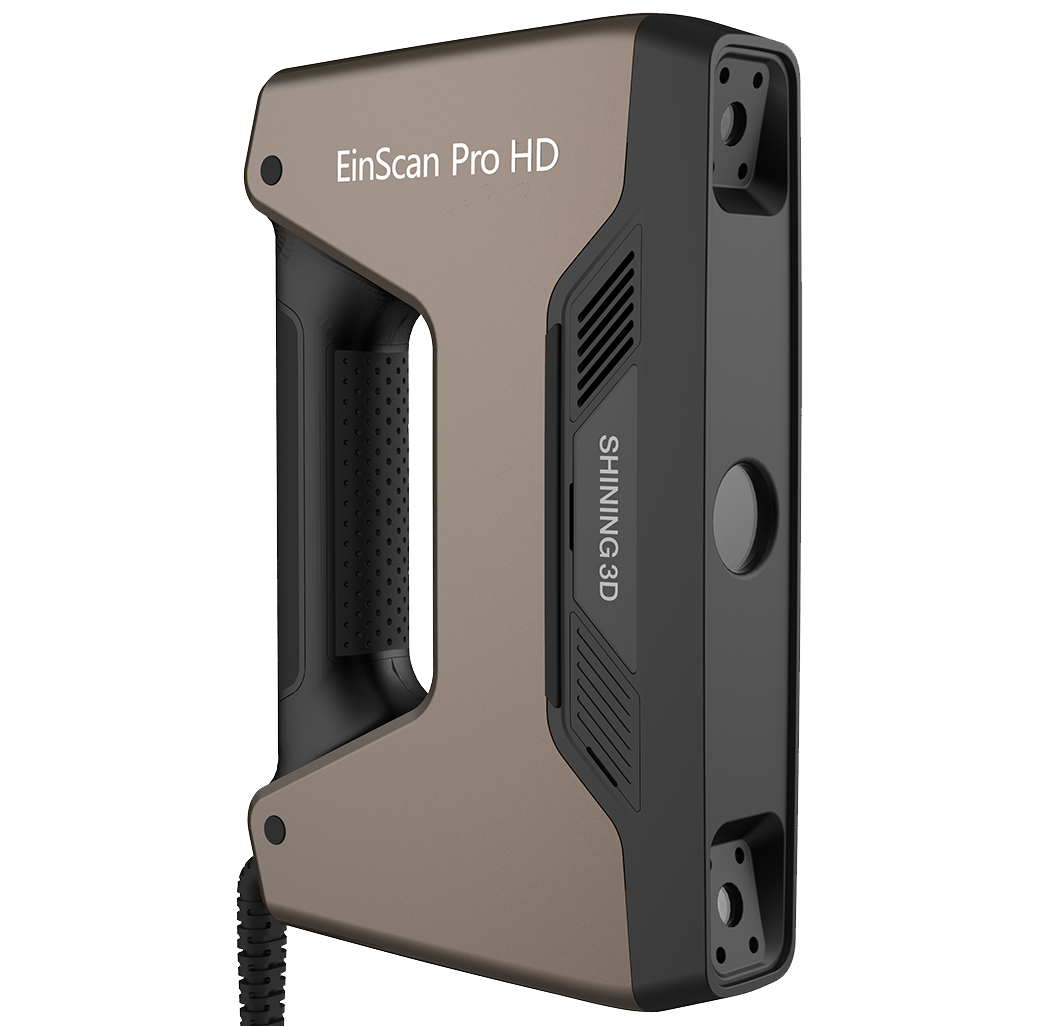

EinScan Pro HD
The EinScan Pro HD is a part of the next generation of handheld 3D scanners with the latest technology. Faster and more accurate than ever before, the portable versatile EinScan Pro HD will improve the efficiency of high-quality 3D modelling by integrating the High-Definition module directly into the Handheld unit.
- With a light weight and compact size, you can easily take the EinScan Pro HD anywhere
- The EinScan Pro HD offers a larger scan range than the EinScan Pro 2X, meaning you can scan medium to large objects to a higher efficiency
- Next generation scanning speed, processing up to 1,500,000 points per second (30 fps) under Handheld Rapid Scan Mode.
- Single scan accuracy under Fixed Scan without Turntable Mode is up to 0.04 mm.
- By attaching the Colour Pack, the EinScan Pro HD series can capture not only high-definition detail, but now also full-colour & texture
EinScan Pro 2X 2020
Meet the EinScan Pro 2X 2020. This new model is based on the feedback from thousands of users and the valuable input of SHINING 3D’s own R&D team. Being faster and more accurate than ever before, the portable versatile EinScan Pro 2X 2020 will improve the efficiency of high-quality 3D modelling.
- With a light weight and compact size
- The latest development in data capture hardware and optimized algorithms, allows processing speeds up to 1,500,000 points per second
- Single scan accuracy under Fixed Scan Mode is up to 0.04 mm
- When using markers, the volumetric accuracy under handheld scanning modes is up to 0.045mm+0.3mm/m
- The minimum point distance is up to 0.2mm under Handheld Rapid Scan

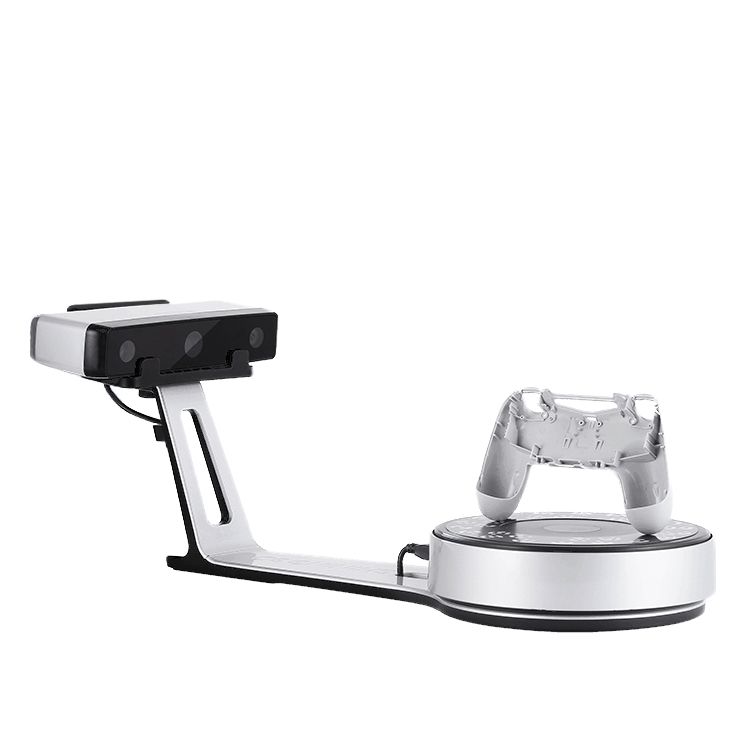

EinScan SP
The EinScan-SP is a powerful companion for educators, engineers and individuals. With its dual scan modes (auto scan and fixed scan), and its easy to operate, easy to scan experience this scanner can be used by specialists and non-technical users alike.
- Reconstruct the real geometry of the object with fine details
- Every scan generates a high-quality 3D data
- Automatic calibration with no rigid set-up required
- One-click scanning with the EinScan-SP
- 2 minutes for a 360-degree scan under auto scan mode
- Visible white light, no laser, eyes secure for children

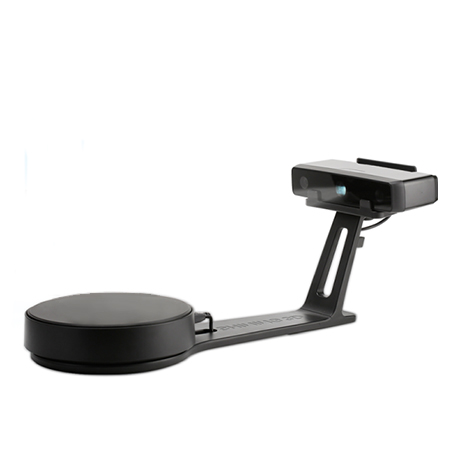

EinScan SE
The EinScan-SE is a powerful companion for educators, engineers and individuals. With its dual scan modes (auto scan and fixed scan), and its easy to operate, easy to scan experience this scanner can be used by specialists and non-technical users alike.
- Dual scan modes: Auto Scan and Fixed Scan
- One-Click scanning with the EinScan-SE
- 4 seconds for a single scan
- 1 minute for a 360-degree scan under auto scan mode
- Seamlessly connect to 3d printers
