Einscan Rigil + EXModel Pro
EinScan Rigil + EXModel Pro Bundle
This bundle combines the EinScan Rigil — a tri-mode professional laser scanner — with EXModel Pro, a complete scan-to-CAD reconstruction platform. Together, they deliver a powerful workflow for reverse engineering, inspection, design, and industrial measurement. The Rigil captures high-accuracy laser data across multiple scanning modes, while EXModel Pro converts that data into clean, editable CAD geometry for downstream design and manufacturing.
Tri-Mode Laser Scanning

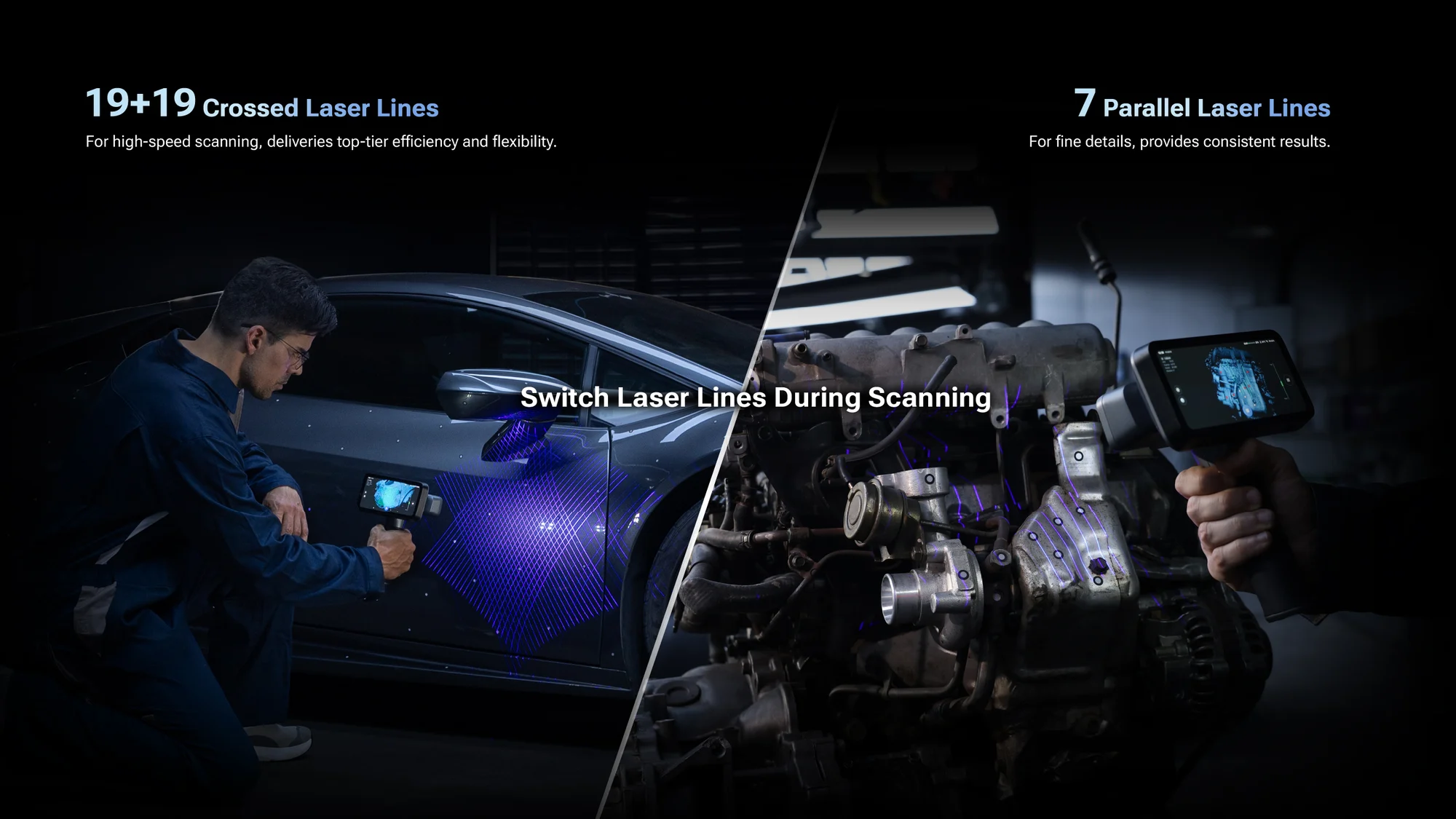

EinScan Rigil offers three scanning modes—Single Line, Cross Line, and Multi Line—giving it the versatility required for a wide range of geometries and surfaces. Engineers can switch between precision edge capture, enhanced feature tracking, or rapid area coverage depending on the project requirements. These modes function across wired and wireless setups, enabling flexible scanning in workshop or field environments.
Hybrid Light Source
Rigil combines structured-light projection with laser scanning to maximise surface compatibility and reduce failure points. This hybrid approach helps the scanner handle dark, reflective, or challenging materials without excessive surface prep. The system intelligently switches or blends projection modes to maintain accuracy across materials, colours, and lighting conditions.
High-Definition Laser Mode

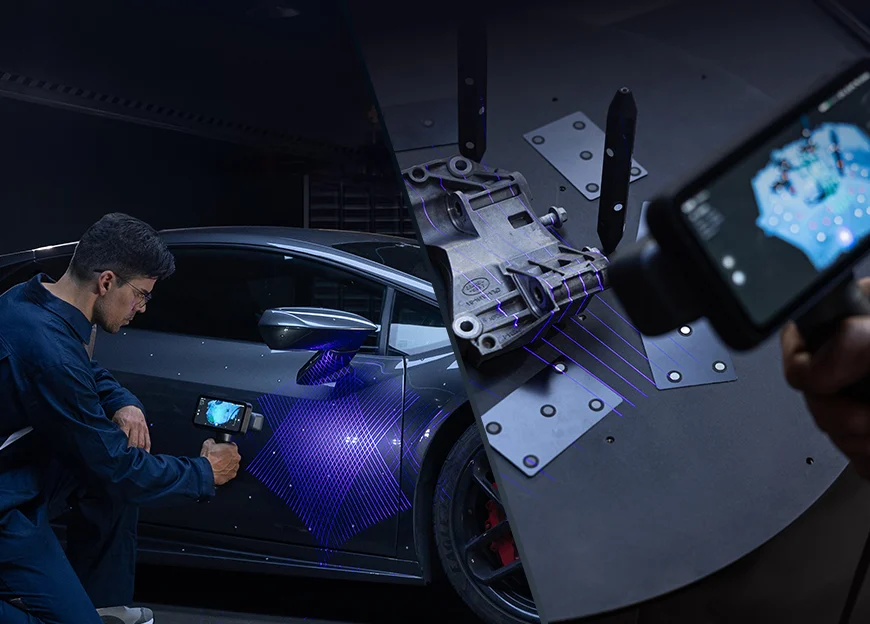

In HD Laser Mode, the Rigil achieves up to 0.04 mm accuracy with 0.05 mm resolution, ideal for capturing fine details in tooling, medical components, or intricate mechanical parts. Sharp edges, engravings, fillets, and small geometries can be digitised without sacrificing fidelity or requiring extensive post-processing.
Full Colour Texture Capture
The built-in colour camera enables texture-accurate scanning for design replication, digital preservation, visualisation, and creative workflows. Colour data is mapped directly to the mesh in real time, supporting industries where appearance matters as much as geometry.
Optimised Hardware Integration
12-Camera Tracking
Rigil’s 12-camera array delivers reliable tracking with or without markers. It stabilises capture on complex shapes and supports handheld scanning with consistent alignment.
All-in-One Integration
Onboard computing and wireless connectivity allow the Rigil to operate independently or as part of a workstation setup.
High-Speed Capture
Large datasets can be acquired quickly without sacrificing geometric stability — ideal for manufacturing, automotive, and field scanning.
EXScan Software Platform
Rigil integrates fully with EXScan for processing, alignment, mesh refinement, and export (STL, OBJ, PLY). EXScan streamlines the workflow while retaining full manual control for advanced users. It pairs naturally with EXModel for rebuilding CAD-ready geometry.
Watch the EinScan Rigil in Action
EXModel Pro — Scan-to-CAD Reconstruction
EXModel Pro provides the tools required to transform scan data from the Rigil into accurate CAD geometry. With advanced sketching, surface creation, feature extraction, and hybrid modelling, it completes the reverse-engineering workflow without requiring external CAD plug-ins.
Streamlined Mesh Preparation
Mesh cleanup includes smoothing, hole-filling, outlier removal, decimation, and topology optimisation. The result is a stable, well-prepared mesh ready for CAD reconstruction.
Automatic Geometry & Feature Extraction
EXModel automatically extracts primitives such as planes, cylinders, cones, spheres, and alignment references. This accelerates the reconstruction of manufacturable geometry while ensuring dimensional consistency.
Advanced Sketching & Surface Tools
EXModel Pro introduces constrained sketching, 3D curve drawing, surface patching, and free-form reconstruction tools. Engineers can rebuild complex curvature or mechanical detail directly on top of scan geometry.
Hybrid Modelling & CAD Export
Hybrid modelling allows parametric features and free-form surfaces to coexist in the same workflow. Completed models export cleanly into standard CAD formats for downstream editing or manufacturing.
What's in the Box
- 1 x Einscan Rigil + EXModel Pro
