Einstar - Powered By Shining3D
The EinStar series from SHINING 3D combines ease of use with professional-grade performance for accurate 3D scanning in design, manufacturing, and education. Each model utilises advanced blue-laser or hybrid-light systems to ensure precise surface capture on complex, reflective, or textured objects. From the EinStar 2’s wireless mobility to the Rockit’s deep-hole scanning and the Vega’s full-colour capture, the lineup provides dependable tools for reverse engineering, prototyping, and inspection workflows.

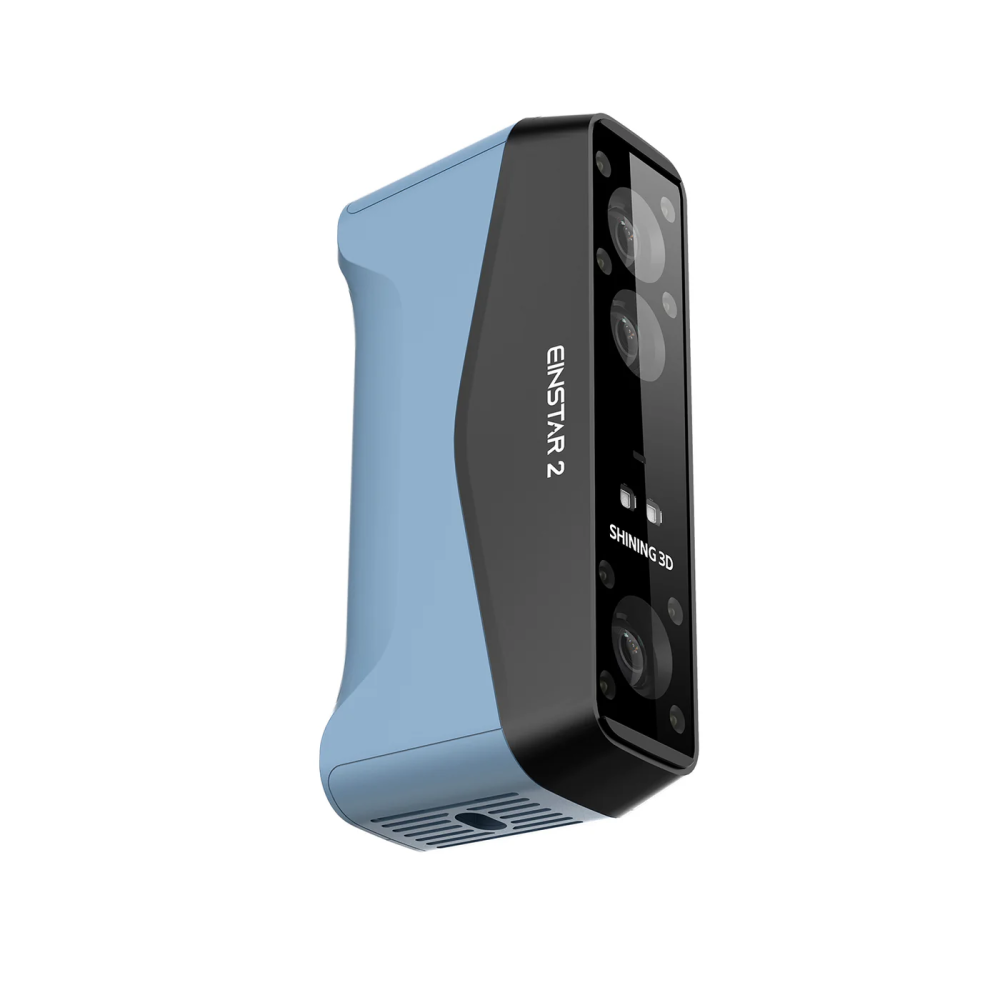

EINSTAR 2 — Wireless Hybrid-Light Handheld Scanner
EinStar 2 combines a blue-laser array for high-detail scanning with an IR VCSEL mode for rapid capture and surface flexibility. Lightweight with a swappable battery, it’s built for mobile workflows across design, inspection, and education.
- Hybrid light: blue-laser (Laser HD) + IR VCSEL (Rapid)
- Stable capture on dark/reflective materials
- Wireless operation with swappable battery
- Sub-millimetre resolution with fast throughput

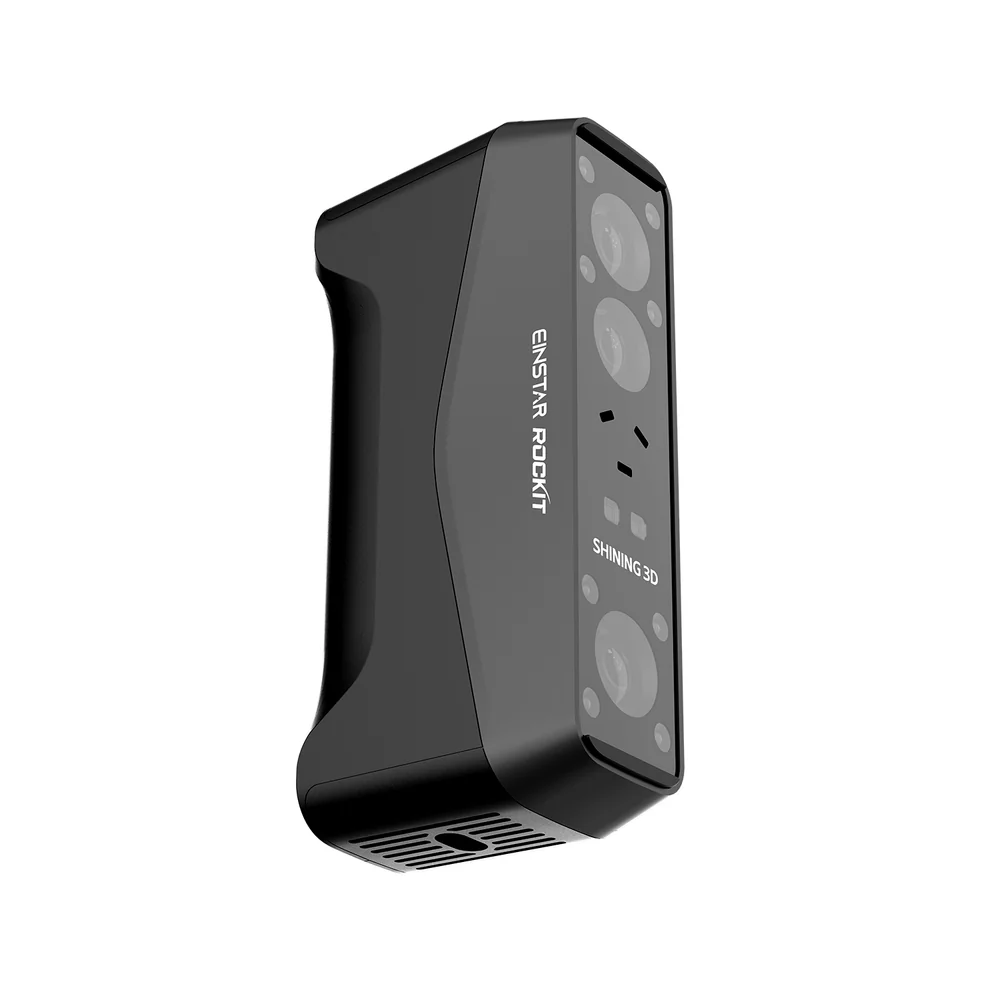

EINSTAR Rockit — Crossed 19×19 Blue-Laser Grid Scanner
Rockit uses a dense 19 × 19 crossed blue-laser grid for robust tracking and detailed reconstruction, especially on black or reflective surfaces. Its optical path and processing are tuned for deep-hole scanning and recessed features.
- 38-line crossed grid (19 × 19) for dense surface coverage
- Optimised for deep-hole and cavity capture
- IR VCSEL mode for large objects and rapid coverage
- Ideal for reverse-engineering, automotive, and prototyping

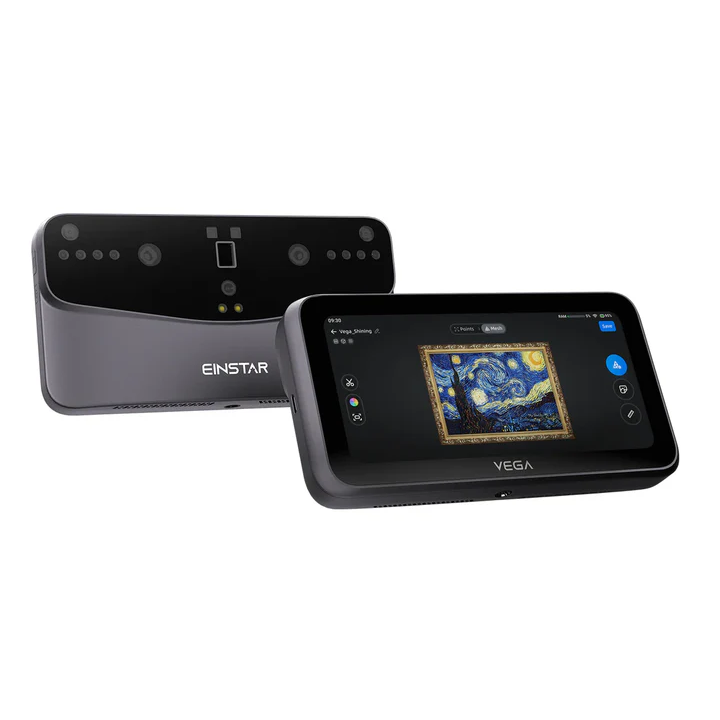

EINSTAR VEGA — Colour Capture & Flexible Range Scanner
VEGA delivers detailed geometry with rich texture capture and an adjustable scan range for different object sizes. A practical choice for visualisation, digital assets, and general-purpose design workflows.
- Accurate geometry with vivid colour textures
- Adjustable scanning distance / FOV for varied parts
- Good results on common industrial and consumer materials
- Straightforward software workflow and export formats

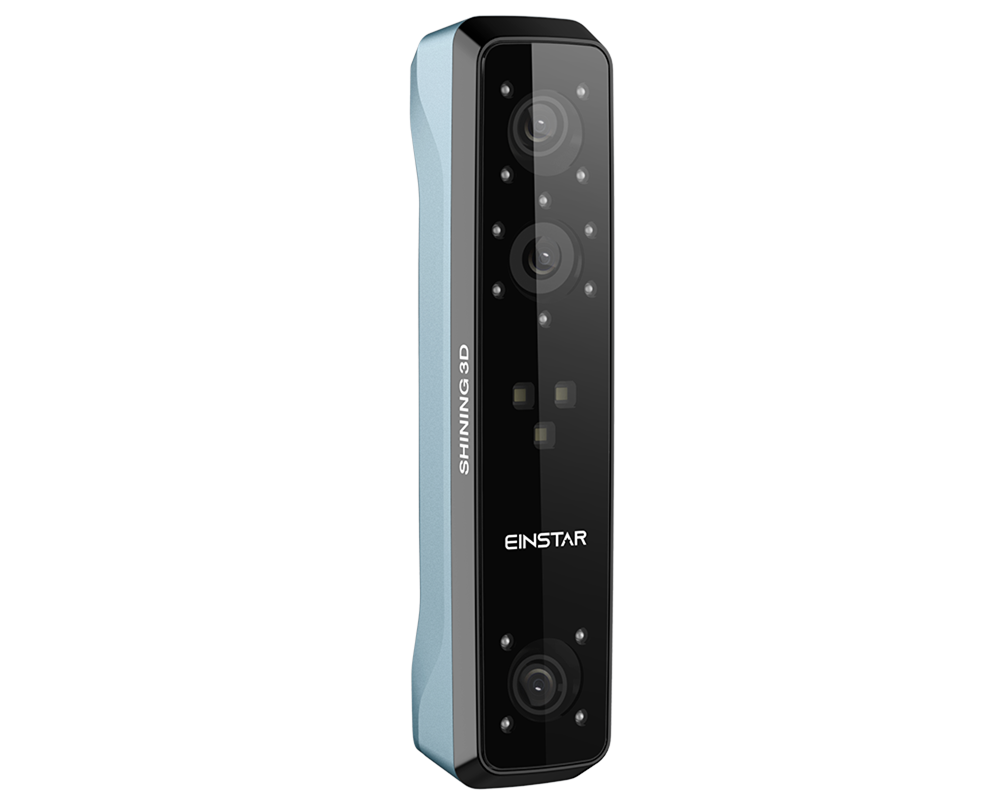

EINSTAR — Original Handheld Scanner
The original EinStar remains a reliable entry into handheld scanning for everyday tasks. It offers accessible operation and solid results for general design reference, education, and light reverse-engineering.
- Good baseline accuracy and point density for common parts
- Stable capture with straightforward setup
- Texture support for asset and visual workflows
- Affordable route into handheld scanning
| Specification | EINSTAR 2 | EINSTAR Rockit | EINSTAR VEGA | EINSTAR (Original) |
|---|---|---|---|---|
| Scan Mode | Laser HD / IR Rapid | Laser HD / IR Rapid | Single Hybrid Mode (Colour Capture) | Structured Light (White LED) |
| Light Source | Laser HD: 17 Blue Laser Lines IR Rapid: IR VCSEL |
Laser HD: 38 Laser Lines (19 + 19 Crossed) 7 Blue Laser Parallel Lines IR Rapid: IR VCSEL |
Blue LED Projection + Colour Camera | Structured White Light Projection |
| Resolution | Laser HD: 0.05 – 10 mm IR Rapid: 0.2 – 10 mm |
Laser HD: 0.05 – 10 mm IR Rapid: 0.2 – 10 mm |
0.1 – 3 mm | 0.1 – 3 mm |
| Scan Speed | Laser HD: 2.5 M pts/s IR Rapid: 1.44 M pts/s |
Laser HD: 2.8 M pts/s IR Rapid: 1.44 M pts/s |
Up to 1.5 M pts/s | Up to 980 k pts/s |
| Working Distance | Laser HD: 100 – 600 mm IR Rapid: 160 – 1400 mm |
19 + 19 Crossed: 100 – 600 mm 7 Parallel: 100 – 400 mm IR Rapid: 160 – 1400 mm |
150 – 700 mm | 160 – 1400 mm |
| Max Field of View | 490 × 580 mm (Laser HD) 1170 × 1385 mm (IR Rapid) |
545 × 620 mm (Crossed Lines) 1170 × 1385 mm (IR Rapid) |
780 × 900 mm | 780 × 900 mm |
| Alignment Mode | Global Marker / Markers | Laser HD: Global Marker / Markers IR Rapid: Global Marker / Markers / Features / Texture / Hybrid |
Marker / Feature / Texture Alignment | Marker / Feature Tracking |
| Minimum Scan Volume | Laser HD: 1 × 1 × 1 cm | Laser HD: 5 × 5 × 5 mm IR Rapid: 50 × 50 × 50 mm |
10 × 10 × 10 mm | Minimum 100 × 100 × 100 mm |
| Camera Resolution | 3D: 2 MP × 2 | 3D: 2 MP × 2 | 3D: 2 MP × 2 + 5 MP Colour | 3D: 2 MP × 2 |
| Texture Capture | 5 MP Colour Camera | 5 MP Colour Camera | 5 MP Colour Camera | Yes (Integrated RGB) |
| Output Formats | STL, OBJ, PLY, 3MF | STL, OBJ, PLY, 3MF, ASC | STL, OBJ, PLY | STL, OBJ, PLY |
| Laser Class | Class 2 | Class 2 | Class 1 (LED) | Class 1 (LED) |
| Outdoor Lighting Limit | Laser HD: Below 110,000 Lux IR Rapid: Below 70,000 Lux |
Laser HD: Below 110,000 Lux IR Rapid: Below 70,000 Lux |
Below 100,000 Lux Recommended | Below 100,000 Lux Recommended |
| Operating Temperature | −10 °C ~ 40 °C | −10 °C ~ 40 °C | 0 °C ~ 40 °C | 0 °C ~ 40 °C |
| Interface / Power | USB Type-C / 60 W PD 3.0 Charger Swappable Battery |
USB Type-C / 60 W PD 3.0 Charger 5500 mA Battery (1 pc) |
USB 3.0 / External Power Adapter | USB 3.0 / External Power Adapter |
| Dimensions (H × D × W) | 130 × 37 × 61 mm | 130 × 37 × 61 mm | 130 × 37 × 61 mm | 220 × 46 × 55 mm |
| Net Weight | 420 g (incl. battery) | 420 g (incl. battery) / 348 g (excl.) | 425 g | 500 g |
| Certifications | CE, FCC, ROHS, WEEE, FDA, IP50 | CE, FCC, ROHS, WEEE, FDA, SRRC, IP50 | CE, FCC, ROHS, WEEE, FDA | CE, FCC, ROHS, WEEE, FDA |
| Recommended PC Configuration | Windows 11 64-bit RTX 3060 or above VRAM 6 GB + / RAM 32–64 GB DDR5 USB 3.0 / Intel i7 13th Gen + |
Windows 11 64-bit RTX 3060 or above VRAM 6 GB + / RAM 32–64 GB DDR5 USB 3.0 / Intel i7 13th Gen + |
Windows 10/11 64-bit RTX 3060 or above RAM 16–32 GB USB 3.0 |
Windows 10/11 64-bit GTX 1060 or above RAM 16 GB + |
