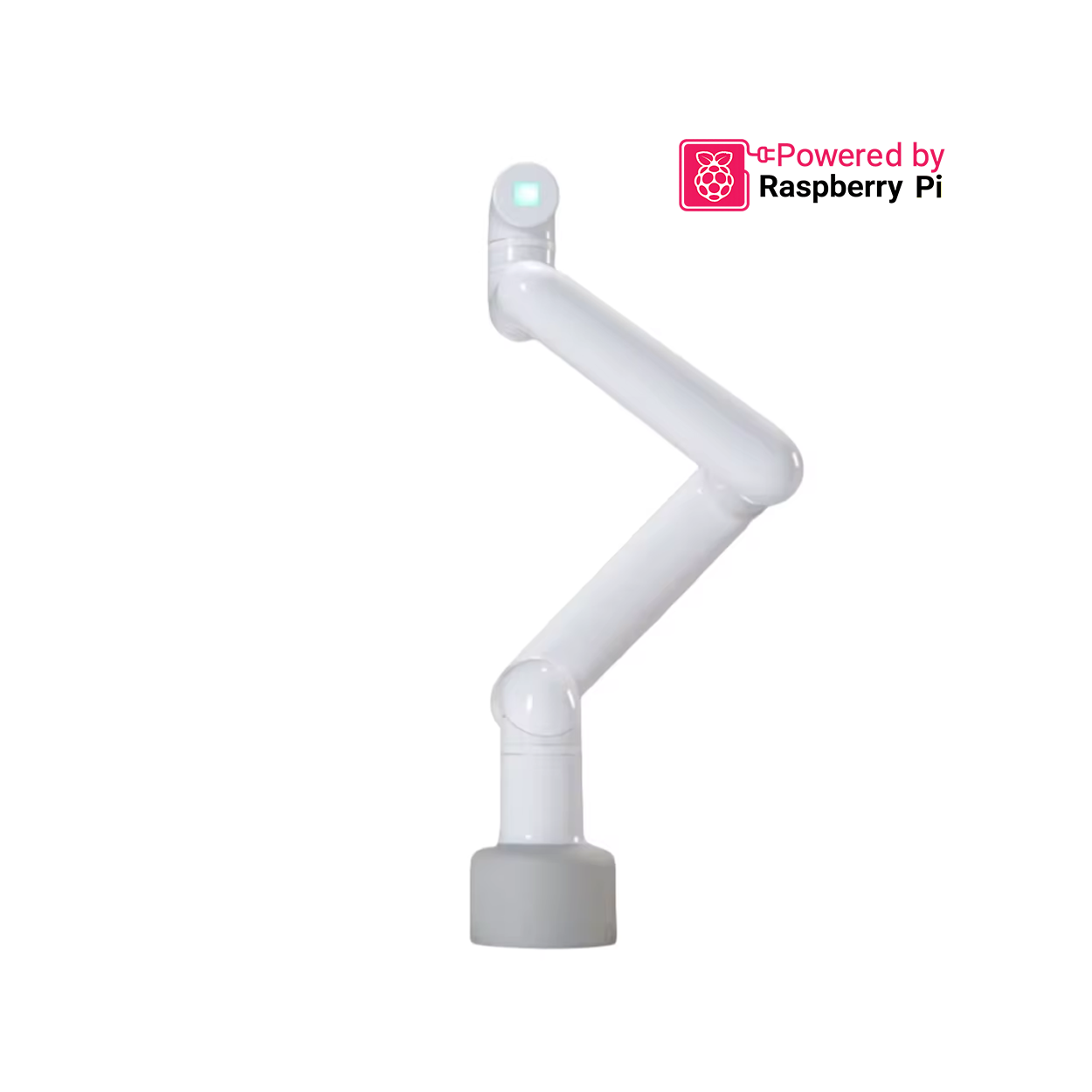

Elephant Robotics myCobot Pro 630
The myCobot Pro 630 is a 6-axis collaborative robotic arm designed for commercial-grade automation and research development. With a 2kg payload, 630mm working radius, and high-precision motion control, it is suitable for advanced industrial applications requiring flexibility, reach, and safety in compact form.
Professional-Grade Payload and Reach
The Pro 630 supports a maximum payload of 2kg and a working radius of 630mm, offering a longer reach and higher load capacity than the 320 series. This makes it a strong candidate for logistics handling, inspection tasks, light manufacturing, and research setups.
Integrated High-Performance Architecture
Industrial Controller
Equipped with a high-performance industrial-grade control system offering faster response, real-time motion control, and enhanced safety protocols.
Custom Joint Modules
Features modular joint design for durability and easy maintenance. Each joint is factory-calibrated for long-term reliability in high-cycle environments.
End-Effector Compatibility
Compatible with standard grippers, vacuum cups, and camera mounts. Built for plug-and-play integration with typical automation tools.
Deployment Versatility
The myCobot Pro 630 is engineered for flexibility in deployment. Whether for AI-based object recognition, repetitive assembly lines, or precision pick-and-place operations, it’s compatible with Python, ROS, and other SDKs, making it ideal for integration into complex automation systems.
Control & Precision
The myCobot Pro 630 achieves a repeatability of ±0.5mm, ensuring reliable precision for tasks such as electronic assembly, quality inspection, and object sorting. Its advanced servo system provides smooth, real-time motion planning with support for both position and torque feedback.

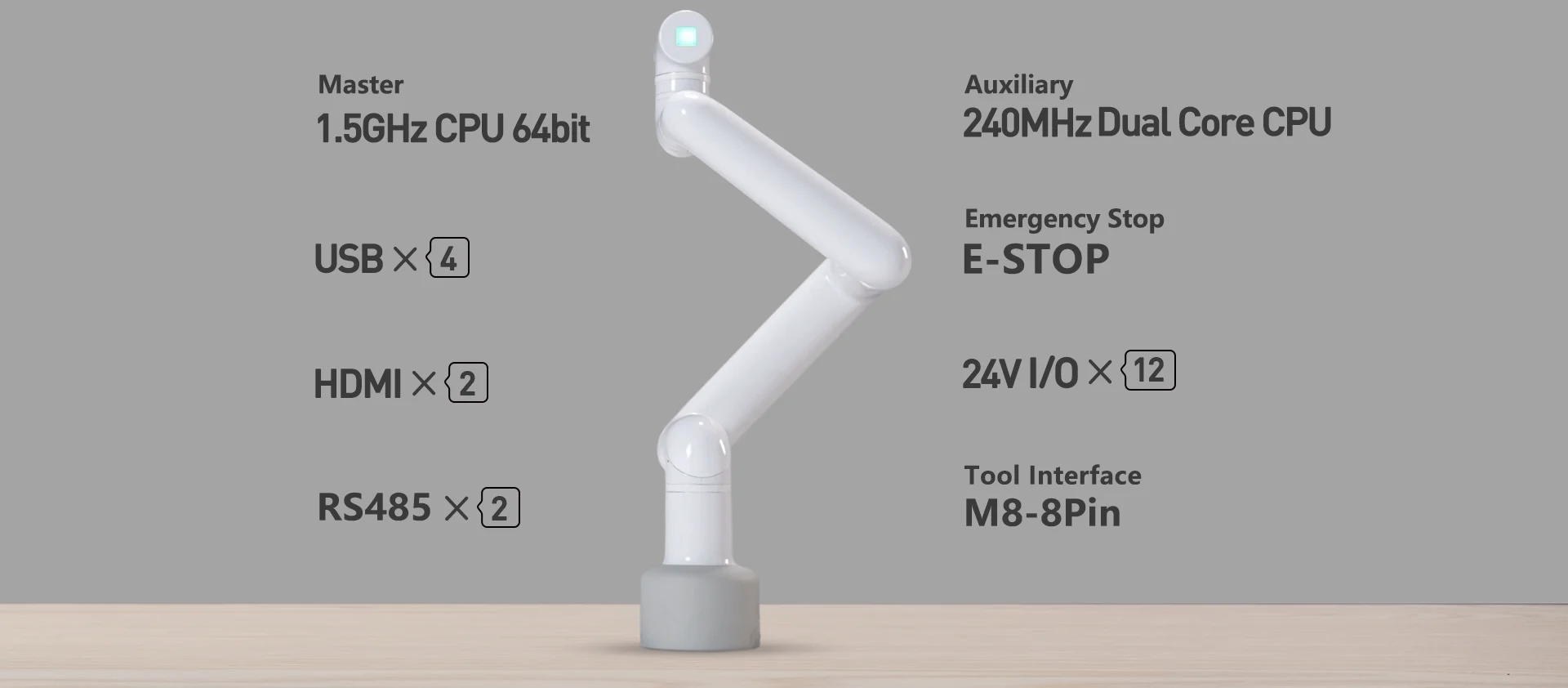

Integrated communication options include USB, GPIO, RS485, and serial, offering flexible connectivity to external systems and devices. Users can also integrate optional modules such as vision sensors or AI cameras to enable visual servoing and perception-based automation.

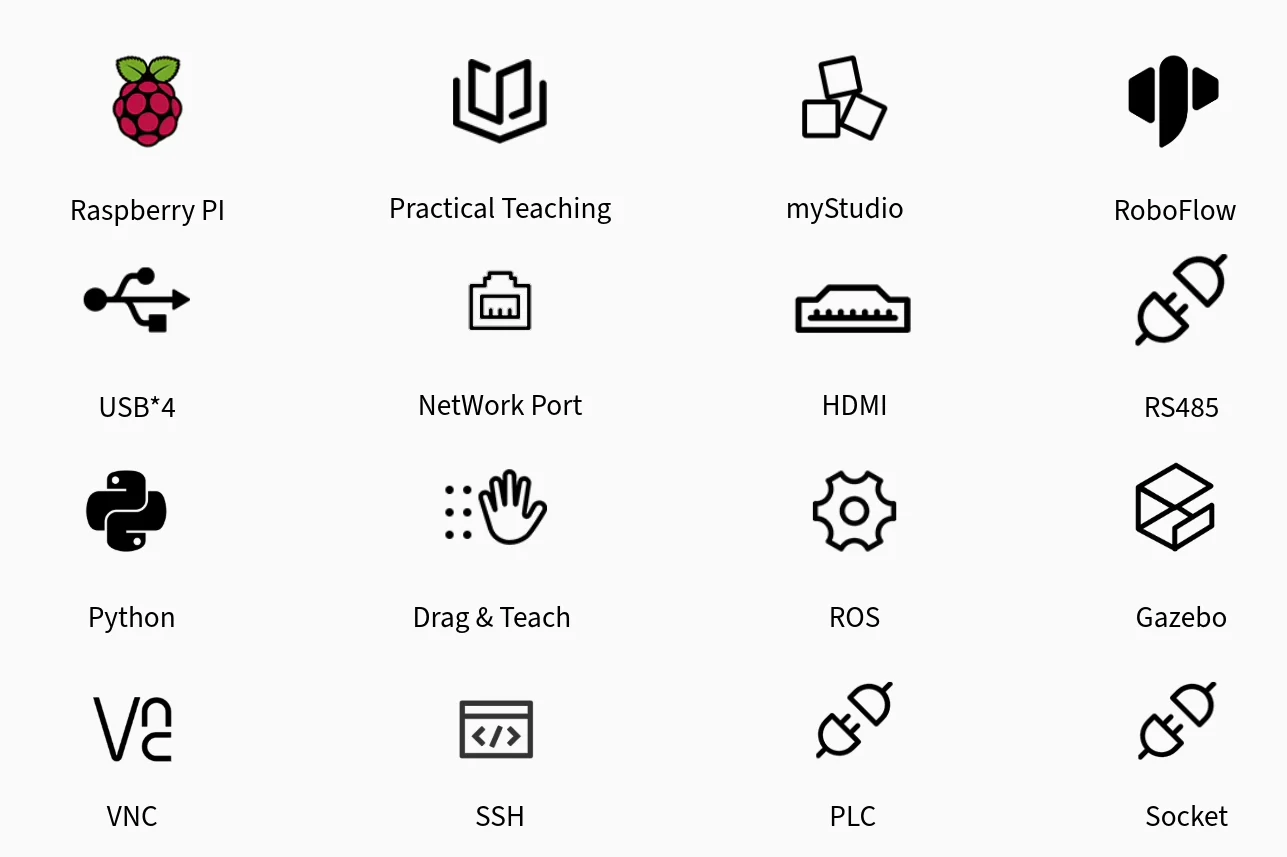

Software & Development Tools
The Pro 630 is compatible with a wide ecosystem of development tools. Python, C++, and ROS provide a solid foundation for script-based and modular control, while RoboFlow and myStudio offer visual interfaces for task configuration and flowchart-based programming. Drag-to-teach functionality allows users to physically guide the robot to desired positions, simplifying path teaching for non-programmers.

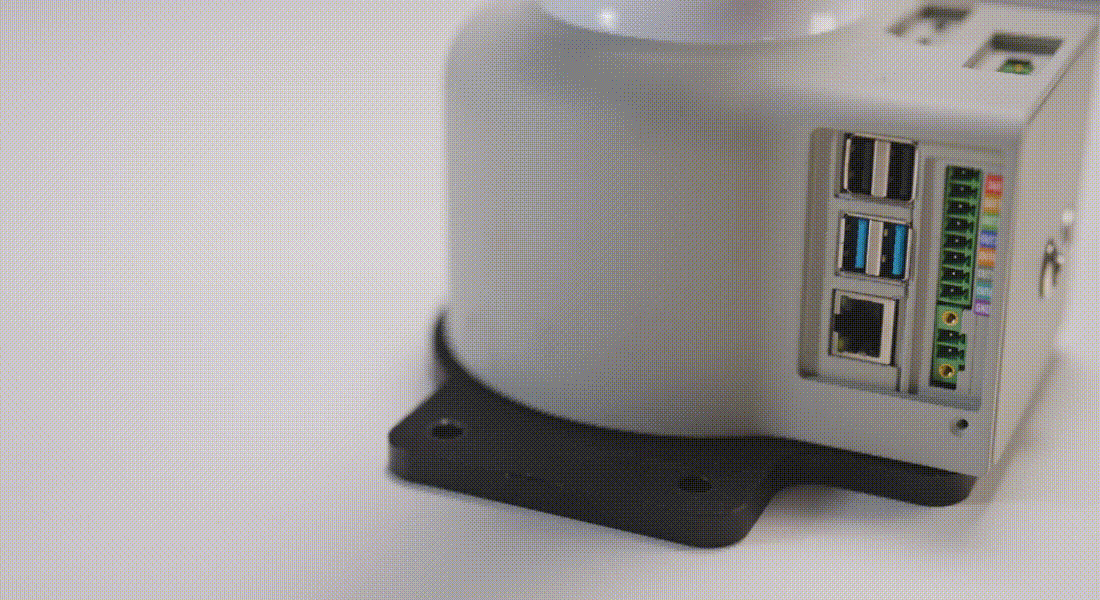

Connectivity is robust, with interfaces including USB, HDMI, RS485, Ethernet, and GPIO. It also supports remote operation via SSH, VNC, and socket connections. Whether you're prototyping new AI behaviours or deploying production logic in a PLC-controlled environment, the Pro 630 provides the platform to scale from research to real-world deployment.

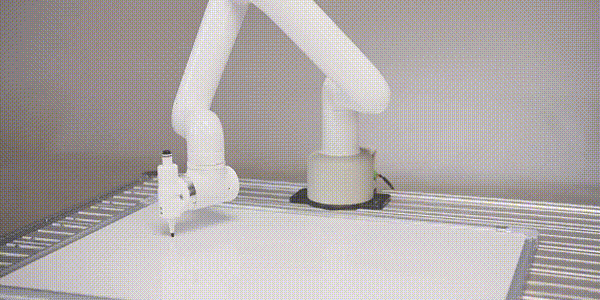

Watch the myCobot Pro 630 in Action
| Technical Specifications | Technical Specifications
|
|---|
What's in the Box
- myCobot Pro 630 Robotic Arm (Assembled)
- 24V Power Supply & Adapter
- USB Type-C Cable
- Base Mounting Plate
- Protective Foam Packaging
- Starter Guide / Documentation
- Tool Kit (Hex keys & Screws)
- Gripper (if included in selected bundle)
- Camera Mount or Vision Module (optional, depending on bundle)
