Elephant Robotics P Series - Industrial 6 Axis Robotic Arm

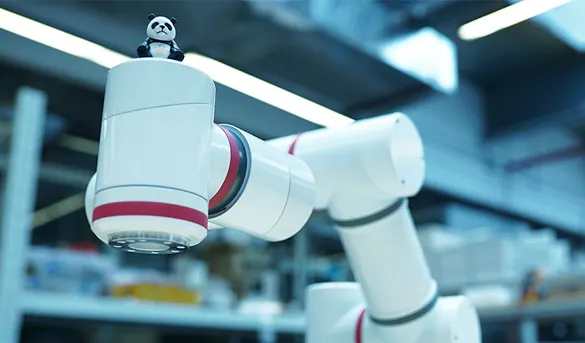

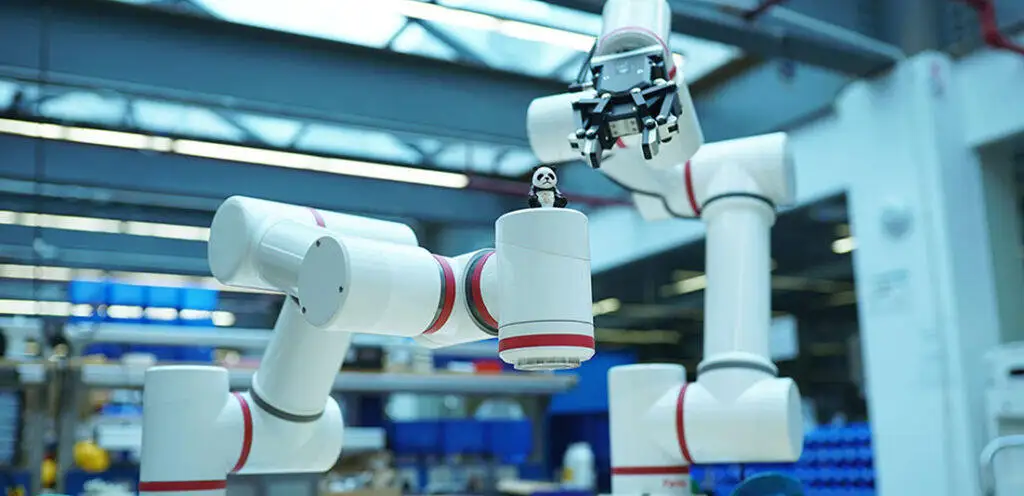

Elephant Robotics P Series Collaborative Robots (P3, P5 & P10)

The Elephant Robotics P Series is a range of 6-axis collaborative robot arms designed for flexible automation across manufacturing, research, and production environments. Available in multiple payload options, including P3 (3kg payload), P5 (5kg payload), and P10 (10kg payload), the series provides a scalable choice for different reach, handling, and integration requirements.

With repeatability of ±0.05mm and working radii of 550mm (P3), 850mm (P5), and up to 1.4m on the P10, the P Series is suited to assembly, handling, inspection, testing, machine tending, and heavier automation tasks. Its compact design and modular architecture allow it to be deployed into existing workflows without major layout changes.

Universal and Agile Automation

The P Series is built for environments where flexibility matters. Its ±360° working range allows full access around the robot, making it suitable for tight production spaces and multi-angle task execution.

The modular joint design reduces the number of spare parts required and simplifies maintenance. This makes it easier to service, upgrade, or reconfigure depending on application needs. With the addition of the P10, users can also select a higher-payload option where heavier parts, larger tooling, or extended reach are required.

• ±360° working range for flexible positioning
• Compact structure for space-efficient deployment
• Modular joints for simplified maintenance and part replacement
• Multiple payload options from 3kg to 10kg

High Quality, Low Operating Cost

The P Series is designed to reduce both upfront and ongoing automation costs. Compared to traditional industrial robots, it offers significantly lower power consumption while maintaining consistent performance across production tasks.

This makes it a practical option for small-to-medium production environments, as well as larger operations looking to scale automation without increasing energy usage or infrastructure complexity. The P3 and P5 are well suited to lighter automation work, while the P10 extends the range into heavier handling tasks where a 10kg payload is required.

• Power consumption as low as 160W–260W on P3 and P5 models
• Lower operational cost compared to traditional robotic systems
• Suitable for continuous production environments
• P10 option available for higher-payload automation tasks

Safe and Collaborative Operation

Built for human-robot collaboration, the P Series includes real-time collision detection that stops motion immediately upon contact. This allows deployment in shared workspaces without requiring full protective enclosures.

Additional safety systems such as LiDAR or light curtains can also be integrated where required for higher-risk environments. For heavier applications using the P10, additional safety planning may be required depending on tooling, operating speed, workspace layout, and the handled load.

• Instant collision detection and response
• No mandatory safety cage in many use cases
• Compatible with advanced safety systems
• Suitable for collaborative environments when correctly assessed and installed

Flexible Programming and Integration

The P Series runs on Elephant Robotics’ RoboFlow operating system, designed for both beginners and experienced developers. Users can quickly configure tasks using graphical programming, or integrate the system into more advanced workflows using API access and SDK support.

This makes the platform suitable for both rapid deployment and long-term automation development. The larger P10 model also supports integration into more demanding production cells where extended reach, higher payload, and external device communication are required.

• Graphical programming for quick setup
• SDK support: Python, C++, Java
• ROS compatibility for robotics development
• Offline programming and modular software updates
• P10 communication support includes USB, Ethernet, and Wi-Fi

Applications Across Industry

The P Series is designed to handle a wide range of automation tasks across multiple industries. Its combination of precision, payload flexibility, and ease of integration makes it suitable for both production and research environments.

With the P10 now available as a 10kg version, the range can support heavier tooling and larger workpieces while keeping the same general focus on collaborative automation, programmable control, and flexible deployment.

• 3C electronics assembly and testing
• Metal processing and part handling
• Automotive production support
• Laboratory automation and research workflows
• Medical and pharmaceutical handling applications
• Packaging, sorting, and heavier pick-and-place tasks with the P10

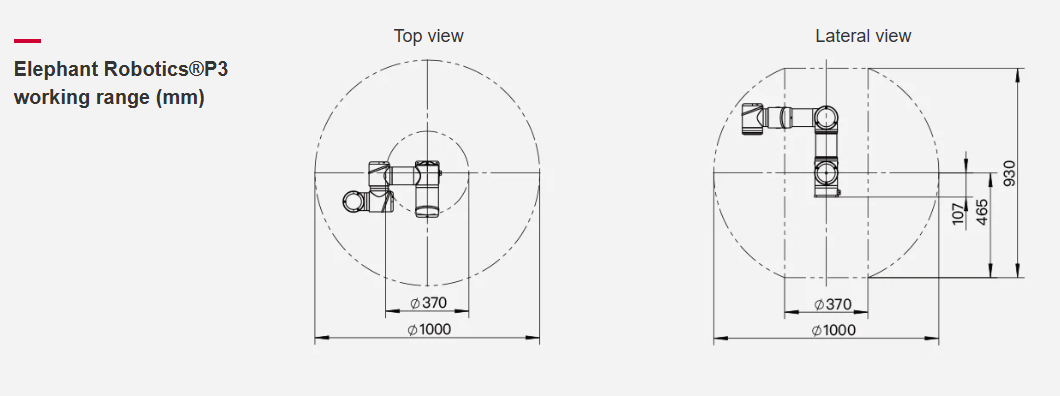

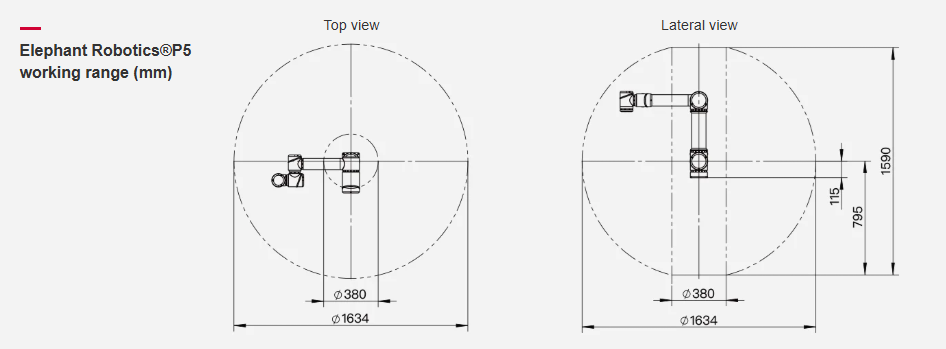

Working Range and Dimensions

The P Series is available in multiple configurations to suit different workspace, reach, and payload requirements:

• P3: 550mm reach, 3kg payload
• P5: 850mm reach, 5kg payload
• P10: 1.4m reach, 10kg payload
• Repeatability: ±0.05mm
• 6-axis movement for full positional flexibility
