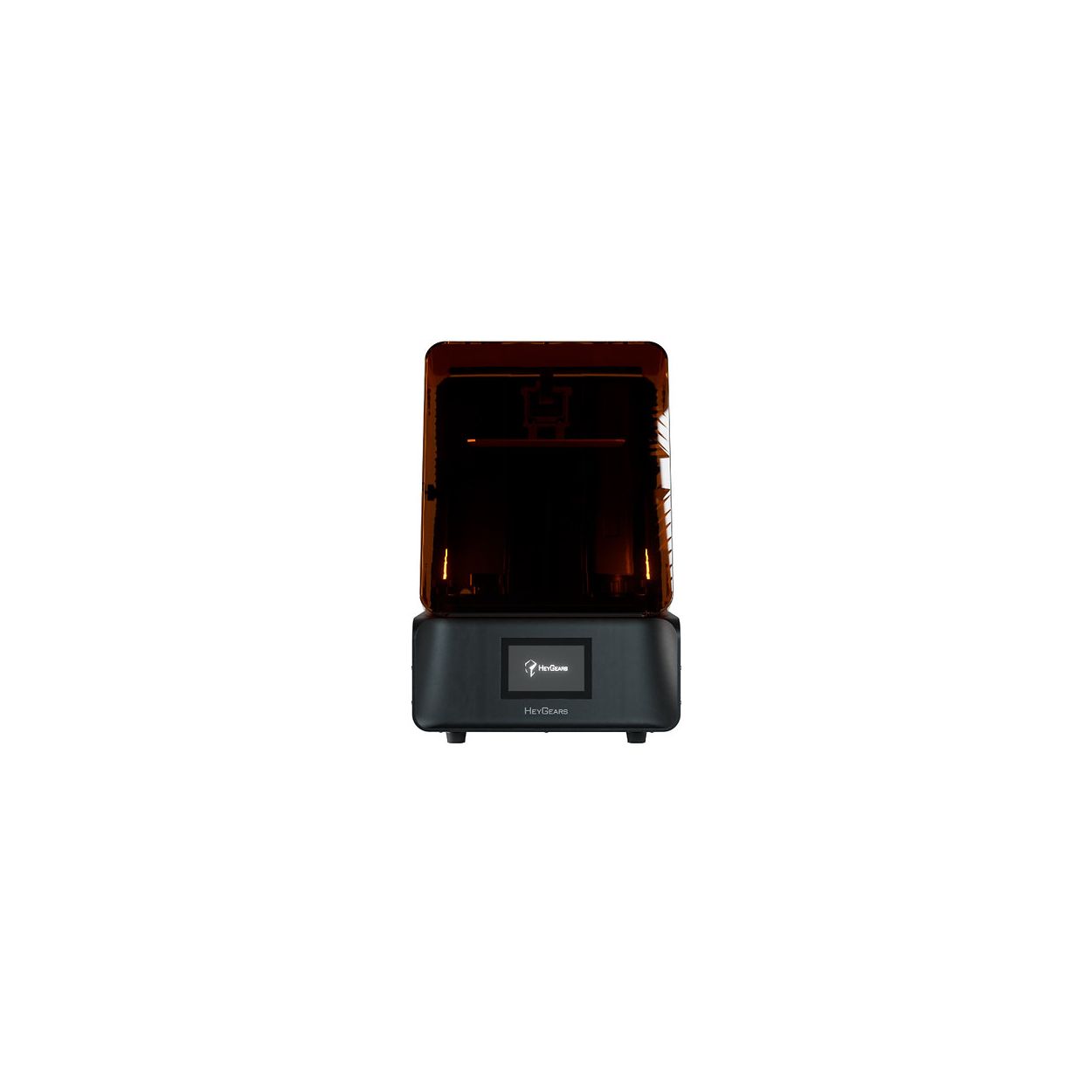

HeyGears UltraCraft Reflex RS
HeyGears UltraCraft Reflex RS
The UltraCraft Reflex RS is a precision-engineered resin 3D printer built for speed, accuracy, and intelligent automation. Designed for professionals working in prototyping, miniatures, dentistry, or manufacturing, the Reflex RS simplifies pre-processing, stabilises Z-axis accuracy, and boosts throughput with auto-heating and refill systems.
Whether you're batch-printing parts for client delivery or prototyping for medical or product design, the Reflex RS helps keep projects moving with minimal downtime or manual input.

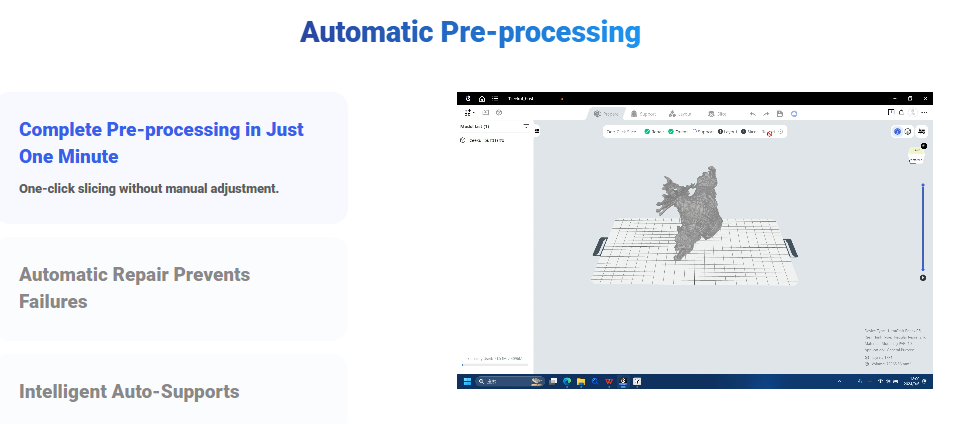

One-Click Automatic Pre-Processing
The Reflex RS streamlines your workflow with fully automated slicing, mesh repair, and support generation — all in under a minute. No manual adjustment required, making it ideal for high-volume environments and complex model geometries.
This is especially useful in production settings where operators need to prepare multiple jobs in a short window, or in educational environments where new users benefit from a simplified slicing process.

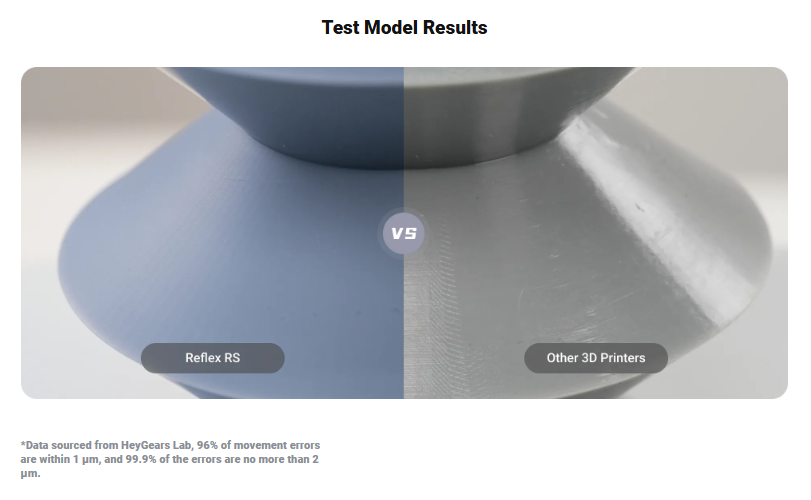

Superior Model Accuracy
Lab-tested output from the RS consistently shows smoother finishes and finer detail retention compared to other desktop resin printers. With 96% of movement errors under 1μm, and 99.9% under 2μm, the RS delivers visibly crisper results for even the most demanding prints.
This level of precision is ideal for jewellery masters, dental impressions, figurines, or any application where visual quality and fitment accuracy are critical.
C5 Z-Axis Accuracy for Stable Layering
Featuring a C5-grade Z-axis module, the RS maintains ±2μm positioning accuracy even under a 50kg load across 10,000 layers. This level of stability eliminates layer shift and banding, delivering clean, professional-grade results across long-duration prints.
This is essential for tall prints or mechanical parts, where dimensional consistency across the Z-axis can make or break your tolerances and part functionality.

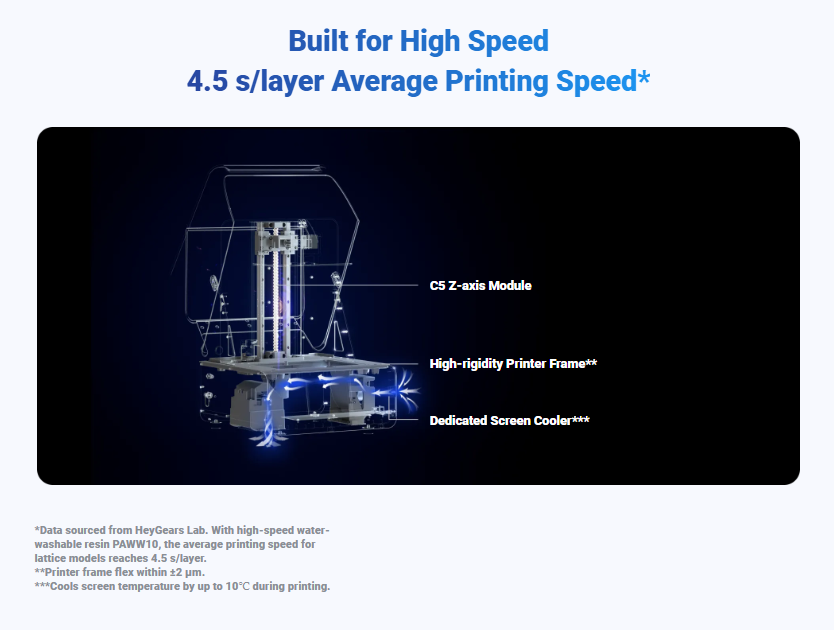

Built for Speed Without Compromising Quality
With an average speed of 4.5 seconds per layer using high-speed resin (PAWW10), the RS combines structural rigidity, thermal stability, and mechanical precision for consistently fast, high-quality output. The dedicated screen cooler drops temps by up to 10°C for longer screen life.
This means you can get more parts out in less time, whether you're printing high-detail miniatures or functional parts that need to be delivered to clients on a deadline.

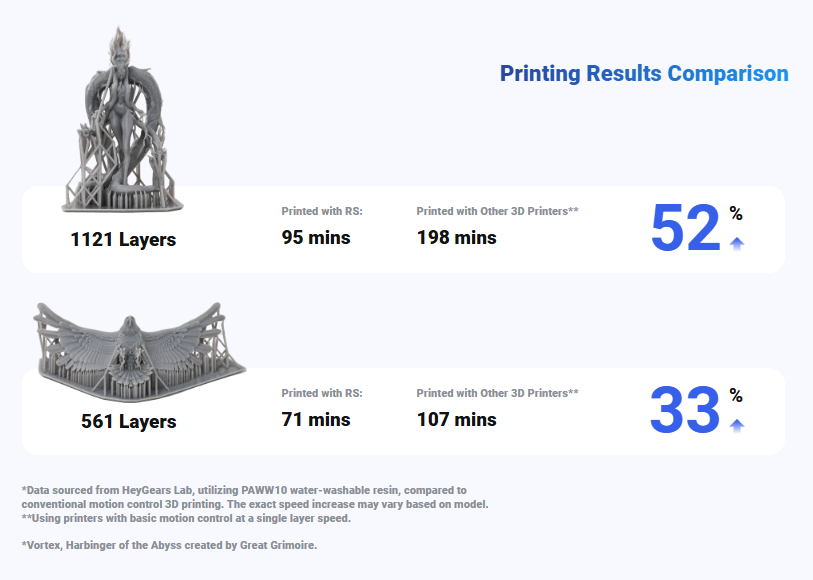

Real Print Time Comparison
When printing with water-washable resin, the RS completed complex models up to 52% faster than other printers. A 1121-layer model was completed in just 95 minutes versus 198 minutes on standard hardware — offering huge time savings for high-volume jobs.
This efficiency is a game-changer for studios, service bureaus, and in-house prototyping teams looking to reduce lead times or run multiple iterations in a single shift.

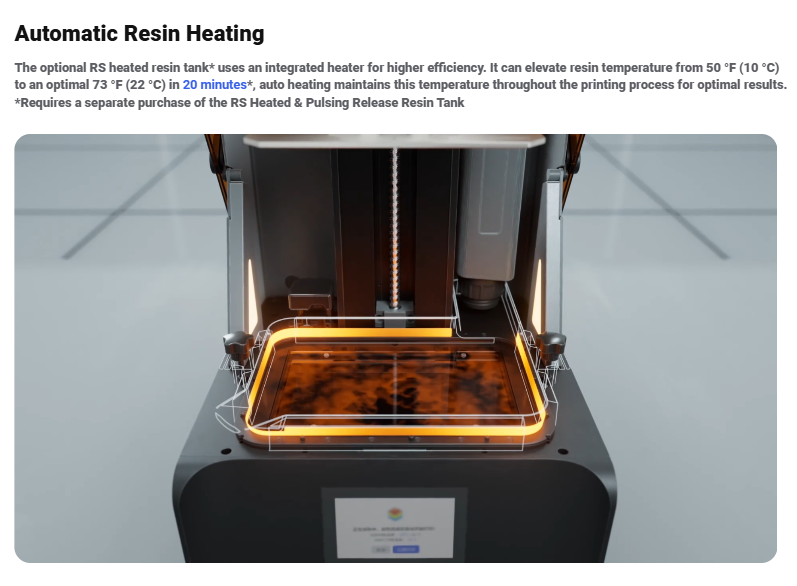

Optional Resin Heating for Consistent Results
The optional RS Heated Resin Tank brings your resin to an optimal 22°C in just 20 minutes, maintaining that temperature throughout the print process. This ensures optimal flow and cure consistency, especially useful in cooler environments or when using sensitive resin formulations.
For dental labs or print farms operating in air-conditioned rooms or warehouses, this feature ensures that resin behaviour stays predictable, regardless of ambient temperature swings.

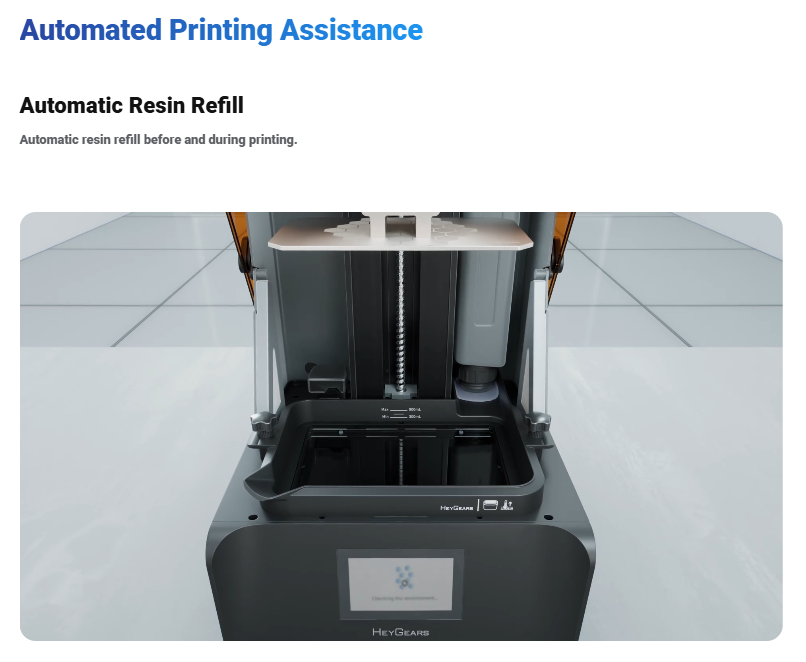

Automated Resin Refill
The RS features a smart resin refill system that detects low levels and automatically tops up resin before and during printing. No more mid-print monitoring or failed prints from running dry — just uninterrupted productivity.
Perfect for overnight jobs or batch production, this system ensures consistent fill levels without manual checks, saving both time and wasted material.

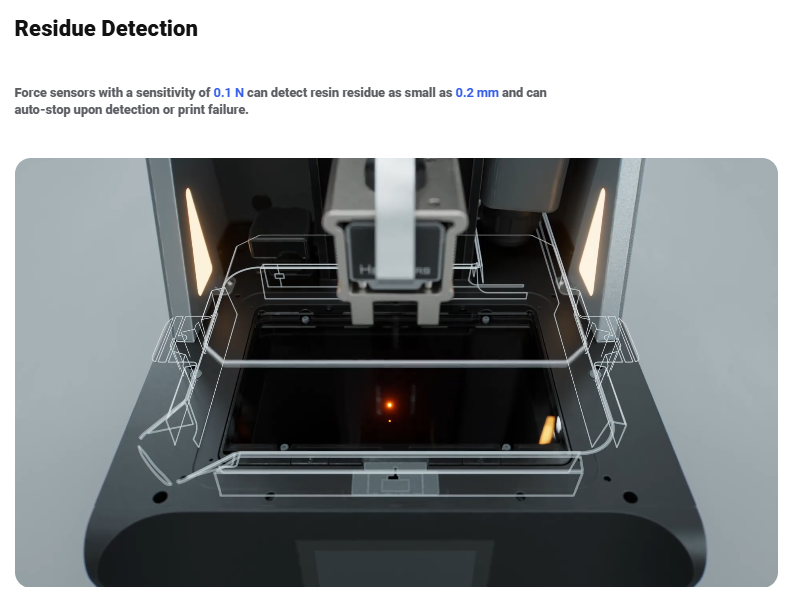

Residue Detection for Print Safety
Using 0.1N force sensors, the RS can detect resin residue as small as 0.2mm on the platform or tank. If residue is detected, the machine can auto-pause or stop the job, protecting your hardware and preventing waste.
This is particularly valuable when printing with filled resins or recycled materials, where minor obstructions can go unnoticed but may impact the next layer or lead to failures.
| Technical Specifications | Technical Specifications
|
|---|
What's in the Box
- 1 x HeyGears UltraCraft Reflex RS
