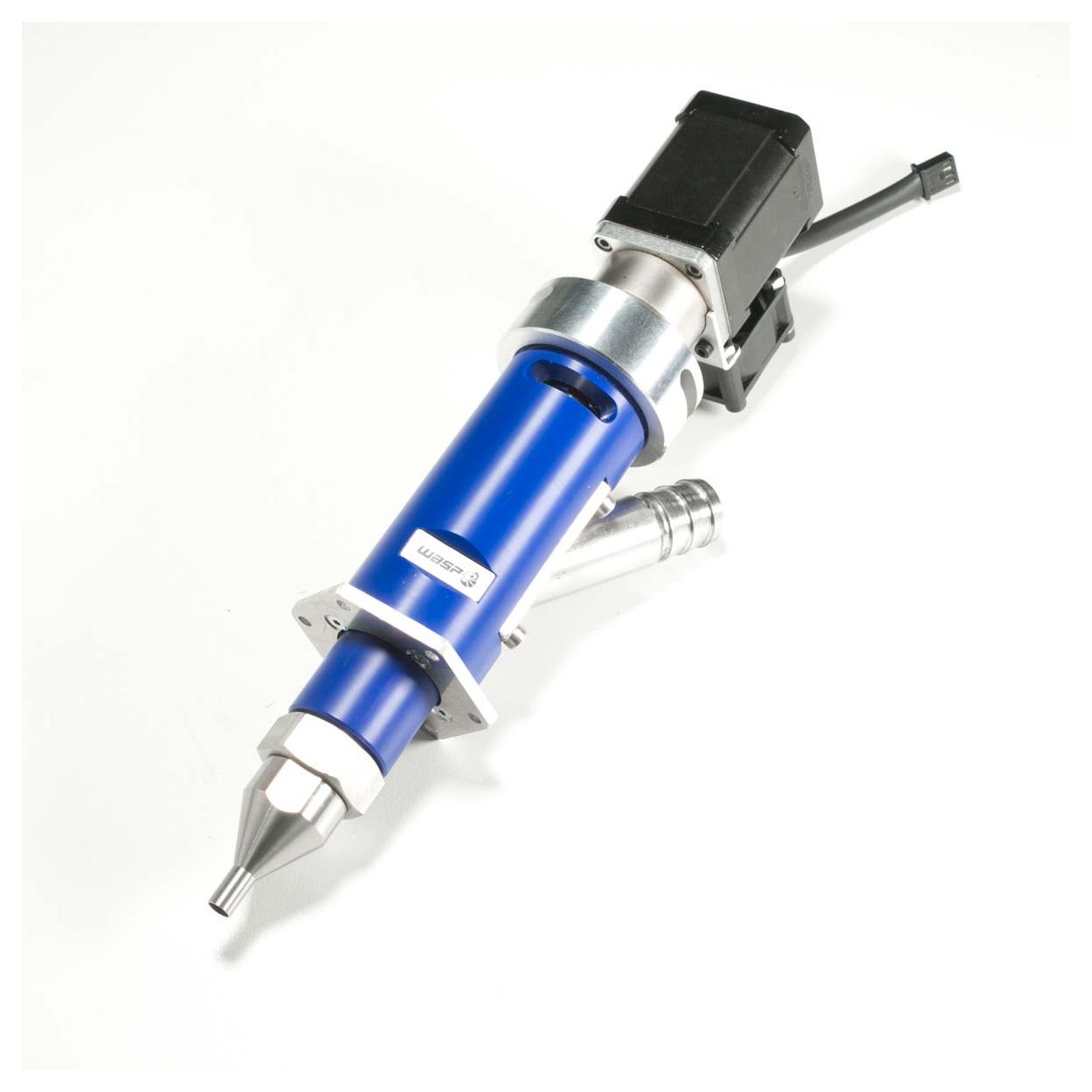

LDM WASP Extruder XL 3.0

WASP creates a new extruder to 3D print harder and faster fluid-dense ceramic materials: LDM (liquid deposition modelling) WASP Extruder XL 3.0.


- Degassing extruder, avoids air bubbles in the dough.
- Extrusion control with the possibility of retraction.
- High torque motor for moulding hard mixes - nozzles up to 8mm in diameter.
- Extruder body in technopolymer easier to clean.
- Connection pipe internal diameter 20mm.


LDM (liquid deposition modeling) WASP Extruder XL 3.0 is the name of the new extruder for the Delta WASP 40100 Clay that allows fast, precise, large prints with hard doughs. Thanks to the new technopolymer extruder body, the cleaning procedure is reduced in a few moments.

WASP has always focused its work on the development of 3D printing systems that allow the use of fluid dense materials.

The motor reducer allows to increase the torque in order to print harder mixtures and therefore faster prints by exploiting the entire printing volume of the Delta WASP 40100 Clay.

More Information
Technical Specifications


Technology : LDM

Maximum grain size : 1mm

Available nozzles : 4mm, 6mm, 8mm

Maximum consumption : 40W

Voltage : 12v

Connector : MODO

Structure : Aluminium and Delrin

Extra : Conical plastic nozzle

Write Your Own Review
You're reviewing:LDM WASP Extruder XL 3.0
  • 1 x LDM WASP Extruder XL 3.0
  • Connecting pipe from cap to extruder
  • Conical plastic
  • Three stainless steel nozzles with diameters: 4mm, 6mm, 8mm
