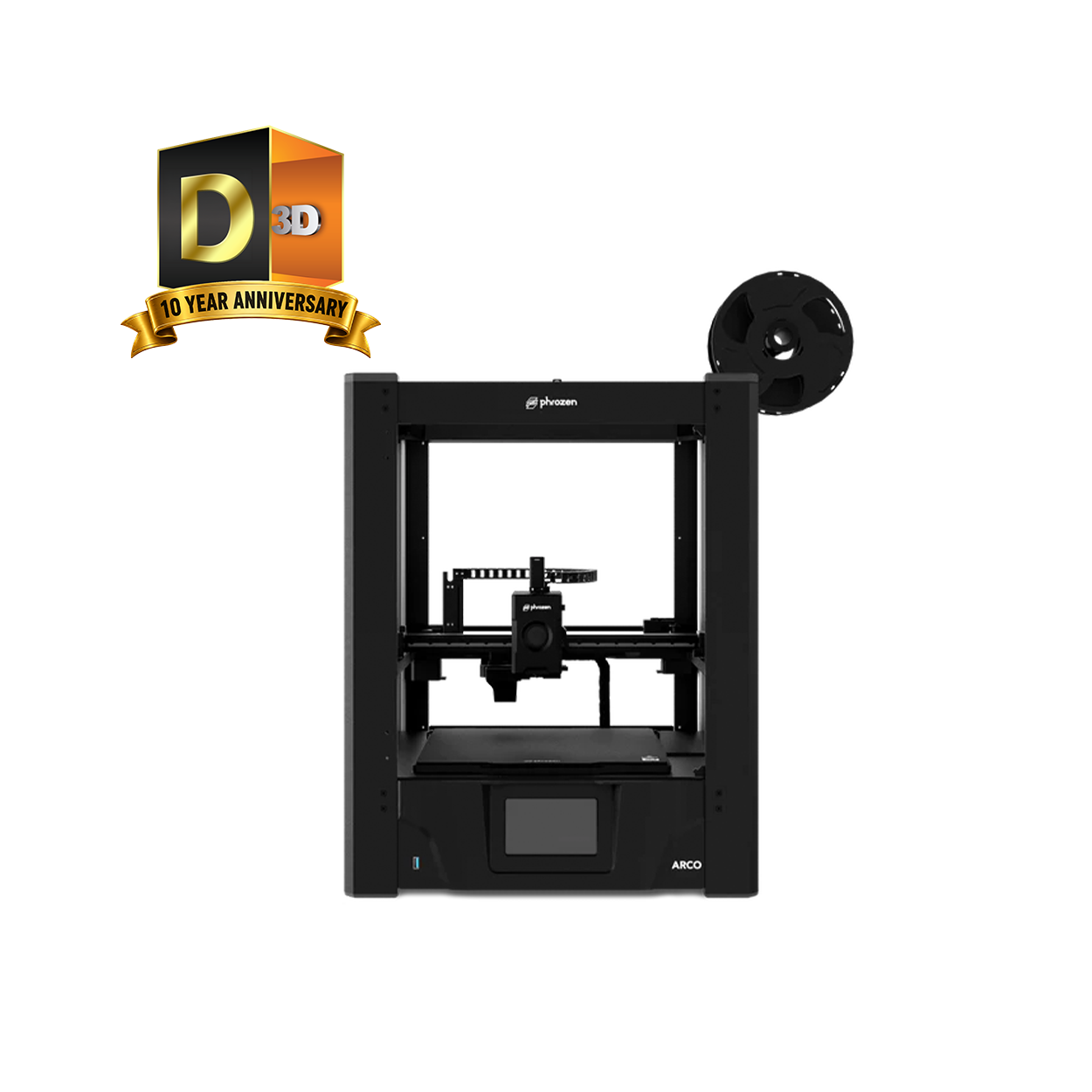

Phrozen Arco FDM 3D Printer
The Phrozen Arco is designed for users who need fast, repeatable results in both prototyping and light production environments. Its Klipper-based control system, rigid aluminium frame, and high-speed extrusion hardware make it suitable for applications where motion stability, throughput, and material versatility matter. This page outlines the machine’s core functionality in a practical, engineering-focused way to help experienced users evaluate how it fits into their workflow.
High-Speed Motion System
The Arco uses a lightweight motion system paired with Klipper firmware to maintain stability at high speeds. Its dual-gear extruder and 40,000 mm/s² acceleration allow it to operate beyond traditional FDM velocity limits while maintaining consistent extrusion flow.
- Print speeds up to 1,000 mm/s with controlled acceleration profiles
- Dual 18 mm metal gears for reliable filament grip during rapid motion changes
- Reduced ringing and ghosting thanks to Klipper pressure advance and motion tuning
Multicolour Workflow Support

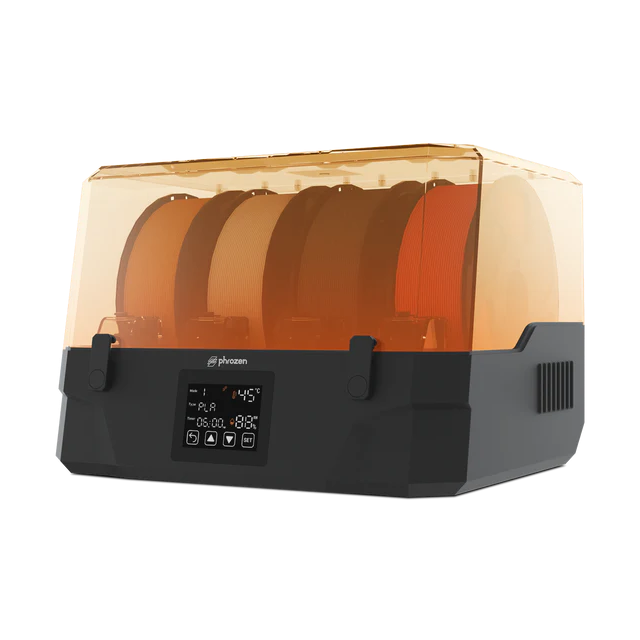

With the optional Chroma Kit, the Arco supports multicolour and multi-material workflows without complex toolheads. This makes it suitable for signage, figurines, branding prototypes, and prints requiring colour segmentation or gradients.
- Supports 4- or 8-colour filament input through a purge-and-feed system
- Humidity-controlled storage keeps nylon, TPU, and other moisture-sensitive materials stable
- Compatible with PIXUP and third-party slicers for flexible toolpath creation
Full-Body Aerospace Aluminium Frame
Built from 6000-series aluminium with reinforced columns and four T-type lead screws, providing rigidity needed for high-speed movement and maintaining consistent tolerances during long print cycles.
One-Piece Flying Gantry with XY Linear Rails
The all-metal gantry integrates precision linear rails, offering smoother axis travel and improved repeatability compared to conventional wheel-based systems.
4-Layer Heated Bed with >90% Heat Uniformity
Reaches 100°C in roughly two minutes and distributes heat evenly across the build plate, helping reduce warping on larger footprints and improving first-layer bonding.
Automation and Calibration Features
The Arco reduces setup time through automated calibration routines. These systems help operators maintain reliable first layers and compensate for mechanical changes during extended use.
- Auto-levelling and adaptive Z-offset correction
- PID thermal calibration for stable temperature control
- Vibration detection stabilises print quality at high speeds
Material Versatility
With its 300 × 300 × 300 mm build volume and 300°C hotend, the Arco supports a broad range of common and engineering-grade filaments. This makes it suitable for users who want one machine capable of handling multicolour PLA through to more functional materials.
- PLA: 190–210°C nozzle, 50–60°C bed. Works well at high speeds due to low viscosity and minimal warping.
- PETG: 230–250°C nozzle, 70–85°C bed. Benefits from slower cooling to reduce stringing and improve layer bonding.
- ABS: 230–250°C nozzle, 100–110°C bed. Performs best with an enclosure and steady airflow control to minimise warping.
| Technical Specifications | Technical Specifications
*More colours will potentially be made available with future upgrades. |
|---|
What's in the Box
- 1 x Phrozen ARCO FDM 3D Printer
