The Phrozen Sonic Mighty Revo is now available in ultra-high-resolution 16K, delivering even finer detail, sharper surfaces and exceptional print quality. Combining its 10.1-inch 16K LCD with smart monitoring, auto-levelling, built-in heating and advanced failure detection, the Mighty Revo 16K is designed for precise, reliable resin 3D printing.
Phrozen Sonic Mighty Revo 16K Resin 3D Printer
The Phrozen Sonic Mighty Revo 16K is a high-resolution mid-format resin 3D printer designed for users who need exceptional detail, dependable consistency and a practical workflow for daily production. Whether you are printing miniatures, jewellery prototypes, display pieces, concept parts or small-batch commercial work, it is built to deliver highly refined results with less trial and error.
At the heart of the system is a 10.1-inch 16K monochrome LCD with a native resolution of 15120 × 6230 and an ultra-fine 14 × 19 μm XY resolution. Compared with the previous Mighty Revo 14K, the smaller pixel size produces sharper edges, smoother surfaces and finer textures, helping even small features come through more clearly.
Phrozen combines that print quality with smart protection and workflow upgrades, including a built-in 30°C chamber heater, dual smart failure detection, Phrozen GO remote monitoring, assisted levelling and a rigid 6000-series aerospace-grade aluminium frame. The result is a resin printer that not only prints beautifully, but is also easier to manage in real-world workshop and studio use.
16K Precision with Smarter Workflow Features
With a 10.1-inch 16K LCD, 14 × 19 μm XY resolution, 2,000+ hour LCD lifespan and a 211.68 × 118.37 × 235 mm build volume, the Sonic Mighty Revo 16K is built to give professional-grade detail while also making resin printing more reliable, more stable and easier to manage.
Ultra-Fine 16K Print Quality
The Sonic Mighty Revo 16K uses a 10.1-inch monochrome LCD with a native 15120 × 6230 resolution and a 14 × 19 μm XY pixel size. This gives it noticeably finer output than the previous 14K model, whose 16.8 × 24.8 μm pixel size is larger and less refined.
Phrozen highlights that this reduction in pixel size helps produce finer surface detail, smoother finishes and cleaner edges on small-scale prints. For miniature painters, jewellery designers, studios and professional model makers, that means less visible pixelation and less post-processing before the part is ready to use, paint or present.
The Mighty Revo 16K is especially well suited to miniatures, figurines, jewellery master patterns, collector display parts and detailed concept prototypes where accuracy and surface finish matter just as much as build size.

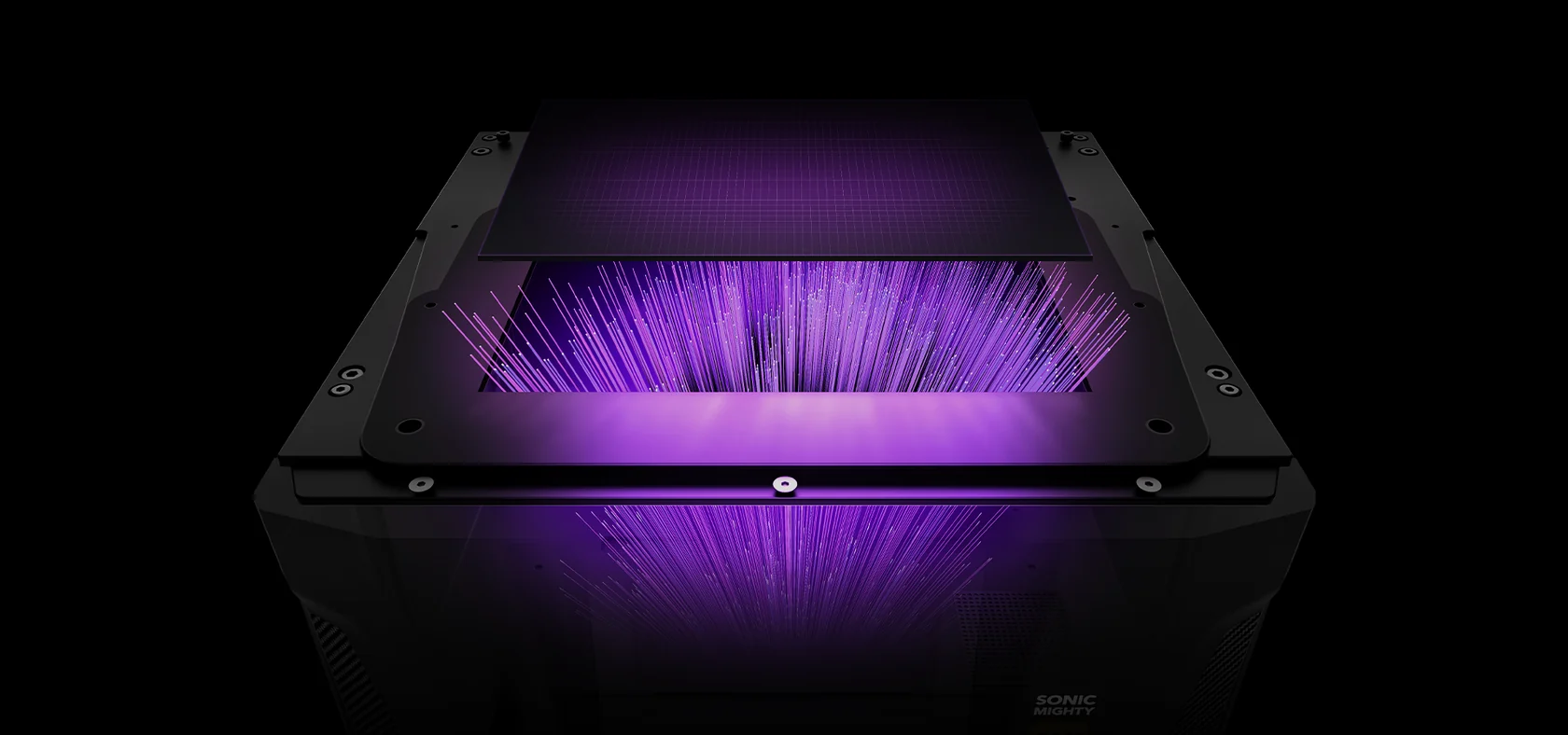

2,000+ Hours of LCD Panel Life
Phrozen states that the upgraded LCD panel is designed for heavy use, with an average lifespan of more than 2,000 hours. It is engineered for higher light transmission, improved heat resistance and better uniformity, helping maintain more consistent print quality over time.
For users running prints regularly, that longer LCD life adds real value. Phrozen estimates that 2,000+ hours works out to more than 8 months of use when printing for around 8 hours a day, making it a strong option for busy hobbyists, studios and print services alike.
Combined with its fine resolution, this also helps the Revo 16K keep delivering sharp detail and smooth results print after print.
Dual Smart Failure Detection
The Sonic Mighty Revo 16K includes dual smart failure detection to help protect the printer and reduce wasted resin and print time. Its monitoring system can identify foreign objects or cured resin on the LCD and pause the job to help protect the release film and core components.
Phrozen also includes part detachment detection. If the printer detects an abnormal loss of peel force over consecutive layers, it can trigger an alert so you can intervene before a full print run is wasted.
This makes the Revo 16K particularly useful for longer prints, overnight jobs and production work where a failed print could otherwise waste hours of machine time and material.
Built-In 30°C Chamber Heater
Temperature consistency plays a major role in successful resin printing, especially in colder workshops, garages or during winter use. The Sonic Mighty Revo 16K features a built-in chamber heater that warms the chamber to 30°C in around 30 minutes and then maintains that temperature during printing.
This helps keep resin viscosity more stable, allowing layers to cure more consistently and reducing the chance of temperature-related failures. Instead of relying on room temperature alone, the printer creates a more predictable environment around the print itself.
For users printing in less controlled environments, the built-in heater can help improve print consistency and reduce seasonal variation in resin behaviour.

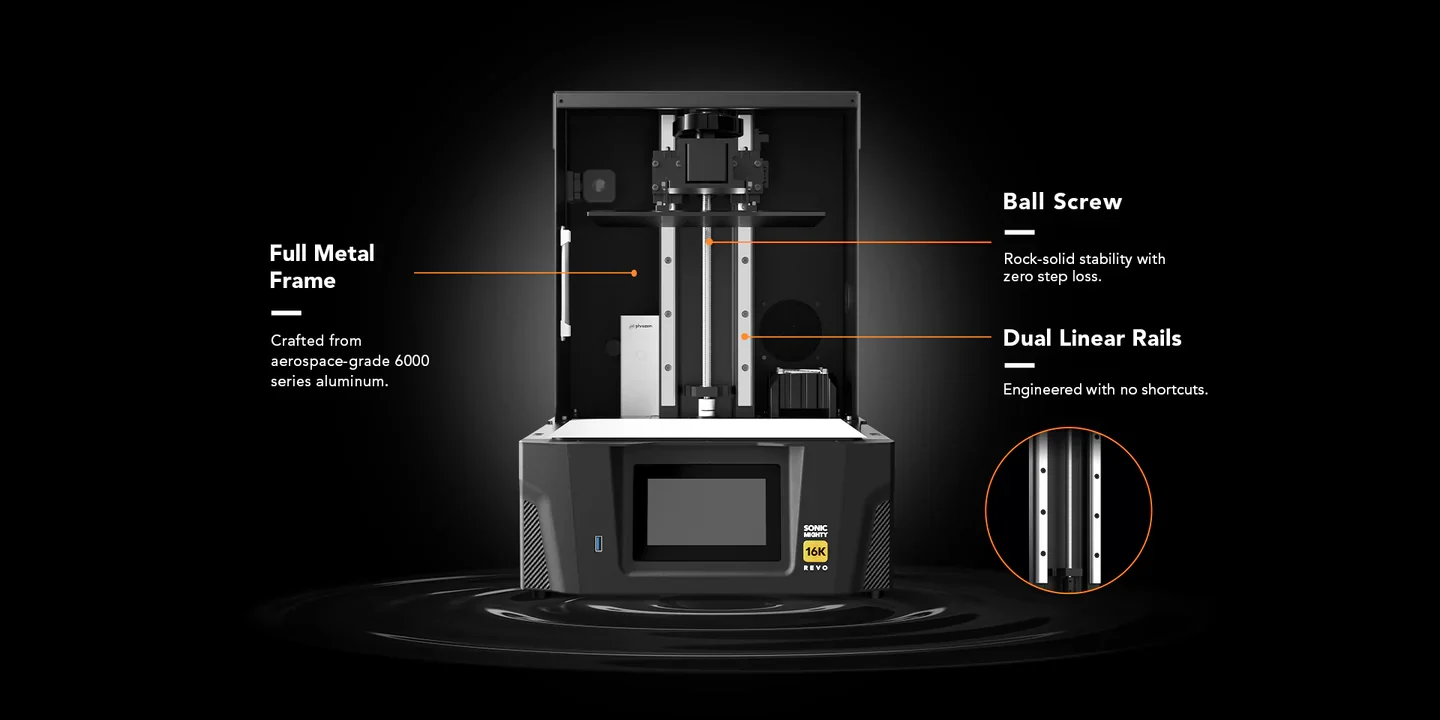

6000-Series Aerospace-Grade Aluminium Frame
The Sonic Mighty Revo 16K is built around a rigid 6000-series aerospace-grade aluminium frame, supported by dual linear rails and a ball screw Z-axis system.
This rigid structure helps keep movement stable and layers aligned during long print jobs. Phrozen specifically highlights its stability during 12+ hour prints, making it well suited to taller models, heavier parts and extended production runs.
For users who need dependable dimensional consistency, the combination of a rigid metal chassis, dual rails and ball screw motion provides a solid mechanical foundation for high-resolution printing.
Phrozen GO Remote Monitoring and Management
With support for the Phrozen GO App, the Revo 16K gives users a convenient way to keep an eye on their machine without standing next to it all day. Phrozen GO provides real-time printer status, failure alerts and time-lapse recording, helping you stay on top of ongoing jobs from your phone.
For users running multiple machines, the app also supports multi-printer monitoring, making it a particularly useful feature for resin print farms, creative studios and small-batch production setups.
This helps centralise printer oversight and makes it easier to identify problems quickly before they develop into wasted print time or material.
Assisted Levelling for Easier Setup
Phrozen includes assisted levelling to simplify calibration and make preparing the printer easier before starting a job. This helps reduce the amount of manual adjustment required and can make initial setup more straightforward for both experienced and newer resin printer users.
Correct build plate preparation is essential for reliable first-layer adhesion, so simplifying the levelling process can help reduce failed starts and improve consistency across the build area.
This is particularly useful in busy workshops or production environments where reducing setup time between jobs can make a meaningful difference to overall workflow.
Cleaner, Smarter Resin Printing
Phrozen has also paid attention to the practical side of resin printing. The Revo 16K includes a flip-up lid for easier access and better space efficiency, built-in LED lighting for clearer visibility and an integrated air purifier to help reduce resin odour during use.
There is also a pre-drilled exhaust port for connecting external ventilation, plus a raised motor and leak-resistant internal design intended to help protect core components from accidental resin spills.
Even maintenance has been considered, with an optimised LCD ribbon cable design intended to make screen replacement quicker and easier when required.
External Ventilation Support
The Sonic Mighty Revo 16K includes a pre-drilled exhaust port that can be connected to suitable external ventilation equipment. This gives users more control over how resin fumes and odours are managed within their workspace.
Combined with the built-in air purifier, this makes the printer easier to integrate into a properly organised resin printing environment, whether that is a home workshop, studio or professional print area.
Large Build Volume for Detailed Production
The Sonic Mighty Revo 16K combines its fine resolution with a substantial 211.68 × 118.37 × 235 mm build volume. This allows larger models to be printed as single pieces while also giving users enough build plate area to produce multiple smaller components or miniatures in the same job.
That combination of detail and capacity makes the Revo 16K a versatile choice for users who do not want to choose between a small high-resolution machine and a larger production-focused printer.
Whether you are producing character models, jewellery prototypes, workshop components or batches of detailed miniatures, the build area provides plenty of flexibility for both one-off and repeated production work.
Phrozen Sonic Mighty Revo 16K Applications
Miniatures and Figures
The fine 14 × 19 μm resolution makes the Revo 16K ideal for tabletop miniatures, character models, busts and detailed display pieces with crisp surface textures and sharp facial features.
Jewellery and Design Work
The printer is well suited to jewellery prototyping, detailed concept parts and design verification models where fine edges, delicate surface detail and a clean finish are essential.
Studios and Print Services
With smart monitoring, longer LCD life, assisted levelling and a robust metal frame, the Revo 16K is also a strong fit for small production environments and professional resin print services.
Large Build Volume, Fine Detail, Smarter Workflow
The Phrozen Sonic Mighty Revo 16K combines a generous 211.68 × 118.37 × 235 mm build volume with genuinely fine 16K detail, allowing users to print larger single-piece models or run multiple smaller parts in a single batch.
With USB, Wi-Fi and Ethernet connectivity, a 5-inch touchscreen, Phrozen GO monitoring, assisted levelling, a built-in heater and a rigid aerospace-grade aluminium structure, it is designed to slot neatly into both enthusiast and professional resin printing workflows.
For users upgrading from the Mighty Revo 14K, the 16K version brings improvements not only in raw resolution, but also in LCD longevity, temperature control, print monitoring and overall day-to-day usability.
| Technical Specifications |
Phrozen Sonic Mighty Revo 14K vs 16K
|
|---|
What's in the Box
- 1 x Phrozen Sonic Mighty Revo 16K Resin 3D Printer
- 1 x Build Plate
- 1 x Resin Vat
- 1 x Air Purifier
- 1 x 310 x 220 mm PFA (nFEP) Release Film
- 1 x USB Drive
- 1 x Metal Scraper
- 1 x Plastic Scraper
- 1 x Plastic Funnel
- 3 x Resin Filter Papers
- 1 x Set of Allen Wrenches
- 1 x Pair of Gloves
- 1 x 1.5 m Power Cable
- Warranty / Information Cards
What is the resolution of the Phrozen Sonic Mighty Revo 16K?
The Phrozen Sonic Mighty Revo 16K features a 10.1-inch 16K monochrome LCD with a resolution of 15120 × 6230 pixels and an XY pixel size of 14 × 19 μm. This ultra-fine resolution allows the printer to reproduce small textures, sharp edges and smooth surface details, making it especially well suited to miniatures, jewellery models, prototypes and other highly detailed resin prints.
What is the build volume of the Phrozen Sonic Mighty Revo 16K?
The Sonic Mighty Revo 16K has a build volume of 211.68 × 118.37 × 235 mm. This gives you enough space to print larger models as single pieces or produce multiple smaller parts and miniatures in one print, while still benefiting from the high level of detail provided by the 16K LCD.
What is the difference between the Mighty Revo 14K and Mighty Revo 16K?
The main upgrade is the higher-resolution 16K LCD, which delivers a finer 14 × 19 μm XY pixel size compared with the larger pixels of the previous Mighty Revo 14K. The Revo 16K also features a built-in 30°C chamber heater and retains the Mighty Revo's smart monitoring, failure detection and connected printing features, giving users improved detail alongside a more controlled resin printing environment.
Does the Phrozen Sonic Mighty Revo 16K have a built-in heater?
Yes. The Sonic Mighty Revo 16K includes an integrated chamber heater designed to maintain a temperature of approximately 30°C during printing. Keeping the resin at a more consistent temperature helps stabilise resin viscosity and can improve printing reliability, particularly in colder workshops or during winter.
Does the Sonic Mighty Revo 16K have automatic levelling?
The Mighty Revo 16K includes an assisted levelling system designed to simplify build plate setup and calibration. This helps users achieve consistent first layers without relying entirely on manual levelling, making the printer easier to set up and helping reduce print failures caused by incorrect plate positioning.
What resin can I use with the Phrozen Sonic Mighty Revo 16K?
The Sonic Mighty Revo 16K uses 405 nm UV-curable resin and is compatible with a wide range of standard, high-detail, tough, engineering and specialist 405 nm resins. Resin exposure settings vary between materials, so it is recommended to begin with the manufacturer's suggested profile and carry out a calibration print before starting larger or more detailed jobs.
Can I monitor the Mighty Revo 16K remotely?
Yes. The Phrozen GO App allows compatible Mighty Revo 16K printers to be monitored and managed remotely. Users can keep track of print progress and printer status from a smartphone, while workshops operating several compatible Phrozen printers can use the platform to make multi-printer monitoring more convenient.
Which slicer software works with the Phrozen Sonic Mighty Revo 16K?
The Sonic Mighty Revo 16K is designed to work with resin 3D printing slicers such as CHITUBOX, with profiles and settings available for compatible materials. When changing resin or printing particularly detailed models, it is worth running a calibration test first, as exposure times and support settings may need adjusting for the specific resin and print geometry.
