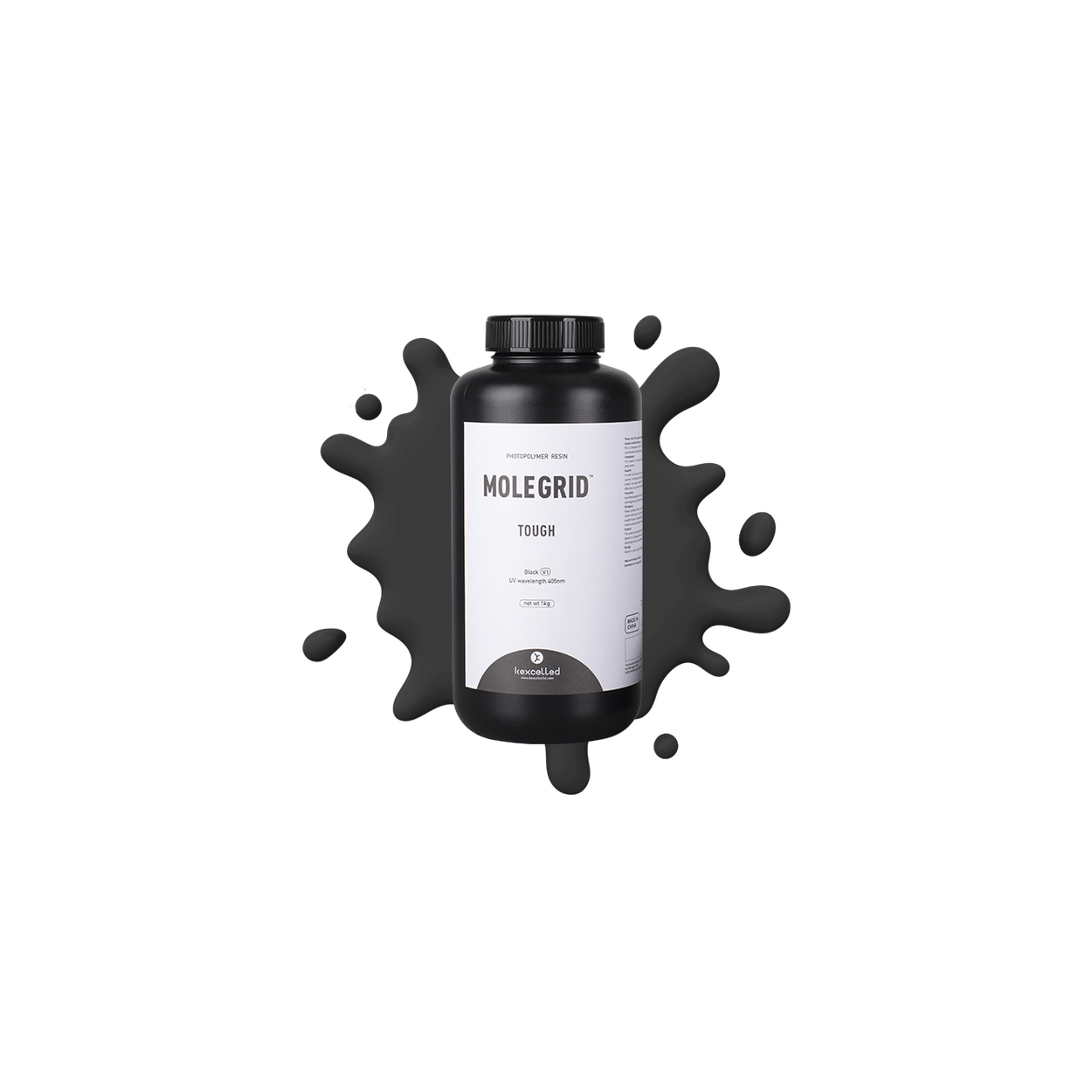

Kexcelled MOLEGRID™ Tough 0.5kg

Kexcelled MOLEGRID™ Tough LCD Resin – 0.5kg

Kexcelled MOLEGRID™ Tough LCD Resin is a high-performance photopolymer resin engineered for functional parts that require greater durability and mechanical strength than standard resins. Designed for LCD and MSLA 3D printers operating at 405nm, this resin delivers excellent toughness, improved impact resistance and reduced brittleness.

The advanced MOLEGRID™ formulation provides reliable curing behaviour and controlled shrinkage, helping maintain dimensional accuracy when producing mechanical prototypes and engineering components. This makes it an ideal material for users who need stronger, more durable prints for testing and functional applications.

Benefits:

• High toughness with reduced brittleness
• Improved impact resistance for functional prototypes
• Strong mechanical performance compared to standard resins
• Low shrinkage for dimensional accuracy
• Reliable curing behaviour for consistent print success
• Compatible with most 405nm LCD and MSLA 3D printers

Typical Applications:

MOLEGRID™ Tough Resin is designed for parts that must withstand handling, testing or light mechanical loads. Its balanced strength and flexibility make it suitable for engineering and product development workflows.

• Functional engineering prototypes
• Mechanical housings and enclosures
• Snap-fit components
• Connectors and fixtures
• Wear-resistant structures
• Concept testing parts

Printer Compatibility:

This resin is compatible with most 405nm LCD, MSLA and DLP resin 3D printers including popular systems from manufacturers such as Phrozen, Elegoo, Anycubic and similar desktop resin printers.

Recommended Printing Parameters:

• Layer Height: 0.05 – 0.10 mm
• Normal Exposure Time: 2.4 – 3.4 seconds
• Bottom Exposure Time: 35 – 50 seconds
• Bottom Layers: 6 – 8
• Lift Distance: 7 – 9 mm
• Lift Speed: 50 – 80 mm/min

Why Choose MOLEGRID™ Tough Resin?

Standard photopolymer resins can often be brittle and unsuitable for functional parts. MOLEGRID™ Tough Resin is formulated to provide a stronger and more durable alternative, offering the toughness required for mechanical prototypes and stress-bearing components while maintaining the fine detail expected from resin 3D printing.

The 0.5kg bottle provides an efficient solution for engineers, designers and hobbyists who require reliable materials for functional testing and durable prototype production.
