Dobot Magician Educational Robot Arm

£1,438.84 £1,199.03
SKU
DOBOT-MAG

For Dobot Compare Models page, Click Here.

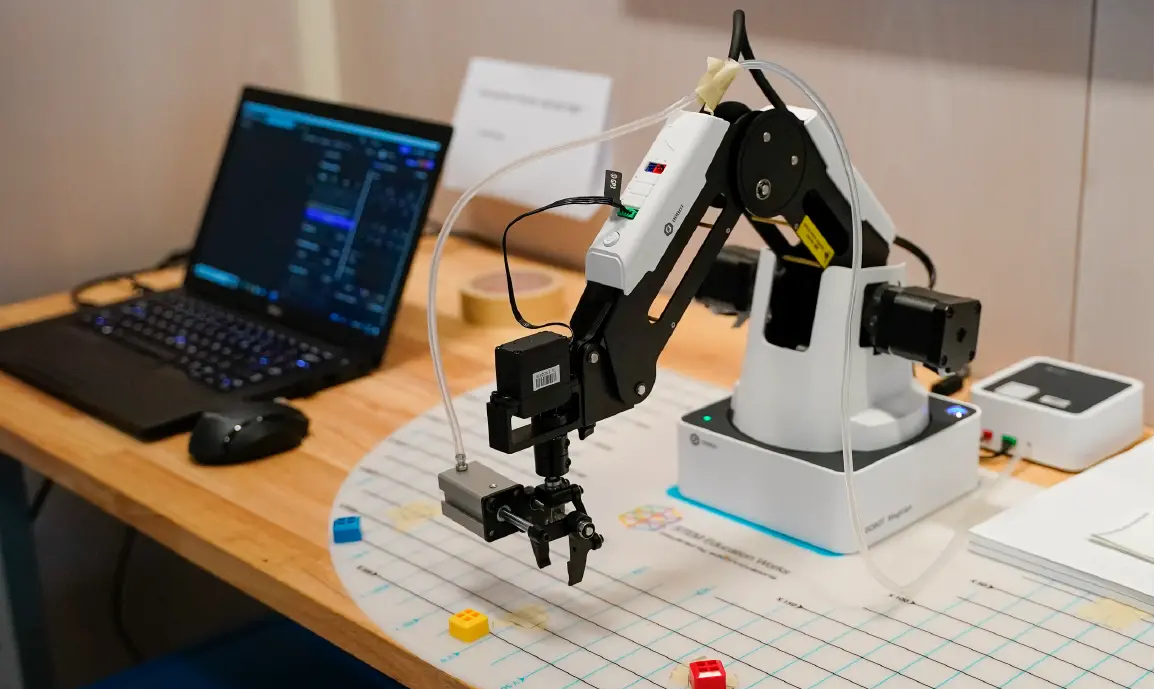

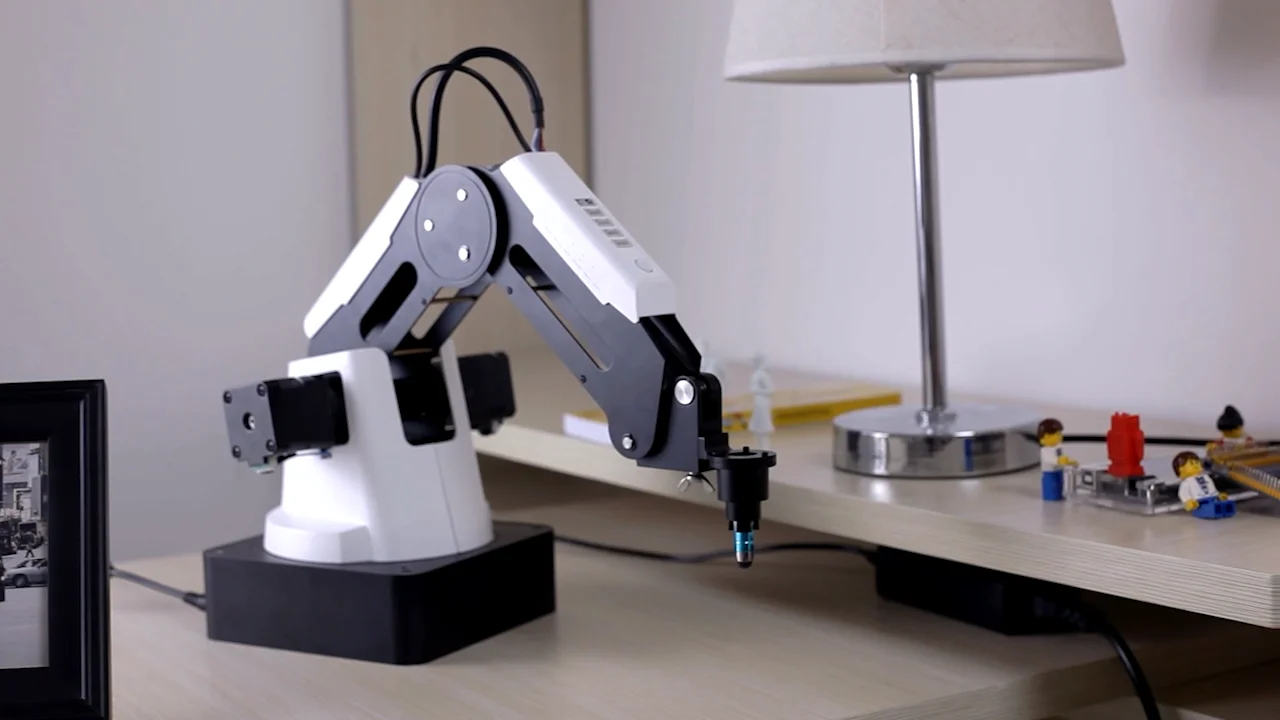

Dobot Magician

Meet the Dobot Magician Robotic Arm – it is a multifunctional desktop robotic arm for practical training in education. Loaded out with different end tools, the DOBOT Magician Robotic Arm has incredible accuracy and repeatability making it perfect for things such as 3D printing, writing, and drawing. It supports secondary development with 13 extensible interfaces and over 20 programming languages, which allows you to surpass your own boundaries of creativity and imagination, making room for limitless possibilities.


The Dobot Magician Robotic Arm control software is called DobotStudio. It has an abundance of integrated features including Teach and Playback mode which doesn’t require knowledge of any coding but instead uses graphical programming via Blockly and text programming. Dobot can be controlled via a PC, remote control, gesture control or programmed to operate as a standalone unit.


Dobot's movements are so accurate that it is an excellent way to learn about control, automation and how industrial robots work without the need for large machinery.


As a part of the Educational bundle, you receive WiFi and Bluetooth modules that provides many more ways to communicate with the robotic arm and a Joystick Kit that provides an additional unique way to control the arm.


The Dobot Magician Robotic Arm comes at just a fraction of the size and cost of its industrial equivalent making it ideal for the learning environment. The Dobot Magician Robotic Arm also offers a large amount of flexibility through its Extended Input and Output (EIO) ports which allow users to connect their own sensors, motors, servos, or additional microcontrollers.


More Information
RM 48 shipping rule No
Technical Specifications
  • Number of Axes: 4
  • Payload: 500 g
  • Max. Reach: 320mm
  • Position Repeatability (Control): 0.2 mm
  • Communication: USB /WIFI */ Bluetooth
  • Power Supply: 100V - 240 V, 50/60 Hz
  • Power In: 12 V / 7 A DC
  • Consumption: 60W Max
  • Working Temperature: -10°C-60°C
  • Net Weight: 3.4 kg
  • Gross weight ( Standard Version): 7.2 kg
  • Gross weight ( Education Version): 8 kg
  • Base Dimension (Footprint): 158 x 158 mm
  • Materials: Aluminium Alloy 6061, ABS Engineering Plastic
  • Controller: Dobot Integrated Controller
  • Robot Mounting: Desktop
  • Packing Size (L x W x H): 307 x 224 x 330 mm
  • Carton Size for Standard Version (L x W x H): 340 x 300 x 400 mm
  • Carton Size for Education Version (L x W x H): 345 x 290 x 485 mm
Write Your Own Review
You're reviewing:Dobot Magician Educational Robot Arm

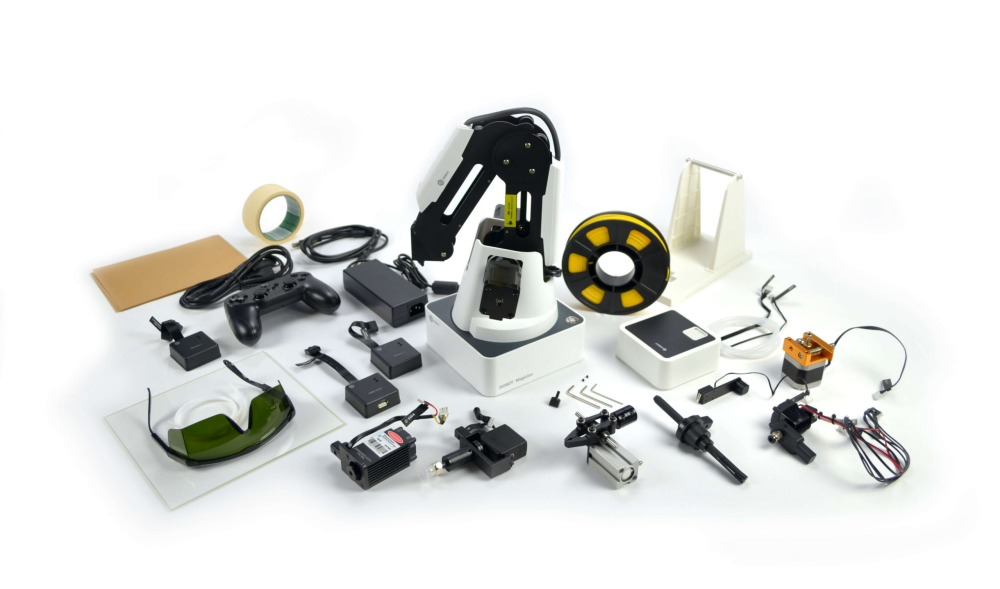

Basic Bundle

  • Robot Arm
  • Suction cup
  • Gripper
  • Air Pump
  • Writing and drawing kit
  • 3D printing kit

Additions for Education Bundle

  • Bluetooth module
  • Wi-Fi module
  • Joystick control kit
