Dobot Magician Lite

£1,198.84 £999.03
SKU
DOBOT-MAG-LITE

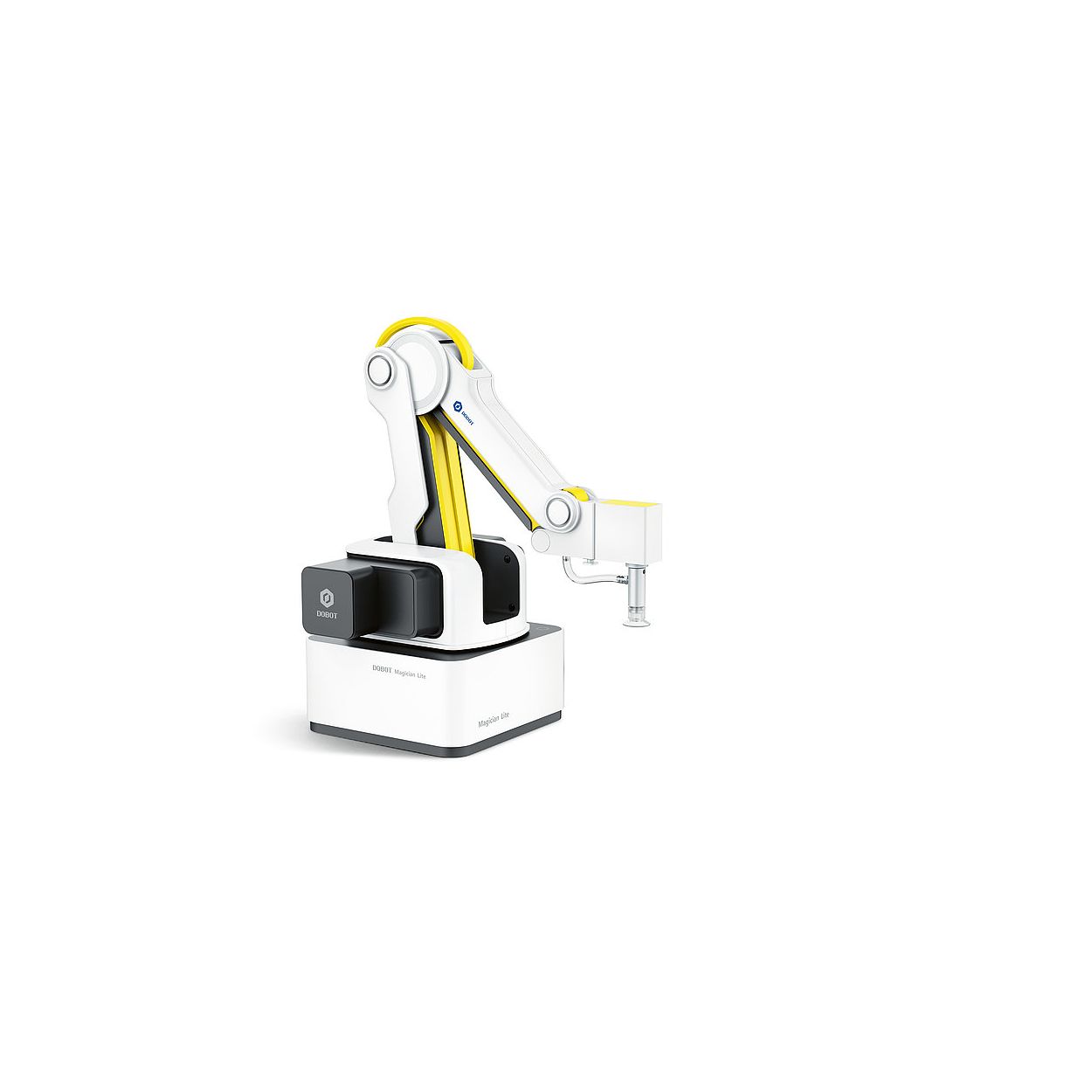

DOBOT Magician Lite Robotic Arm

DOBOT Magician Lite, a multi-functional lightweight intelligent robotic arm, is one of the core products in DOBOT’s K12 customized artificial intelligence education ecosystem. Dobot Magician Lite enjoys numerous software and hardware interaction methods and expansion interfaces to maximize students’ freedom to create.


Through building and playing, students can learn how artificial intelligence and mechanics work. They will be also introduced to a world of rudimentary knowledge of robotics and how they can be used in the real world.


Additionally, the DOBOT hosts robotics competitions to stoke students’ interest in robotics and get more of them to be involved. At the competition, students work together as a team to address challenging tasks by designing, creating, and programming their own robots. This means that these students not only can put what they have learned to the rigid test but also get to celebrate their unique talents and achievements. DOBOT robotics competitions strive to provide fertile ground for budding problem-solvers to grow and prosper.


Safety in a classroom is always a top priority. The Dobot Magician Lite is compact and only weighs 2.4kg, making it portable and easy to build an application scenario. Its repeatability positioning is 0.2mm, payload 0.25kg, and radius range 340mm. It supports a soft gripper, suction cup, pen grasper and other changeable end tools. The robot has a collision detection system, making it safe for children to be around.

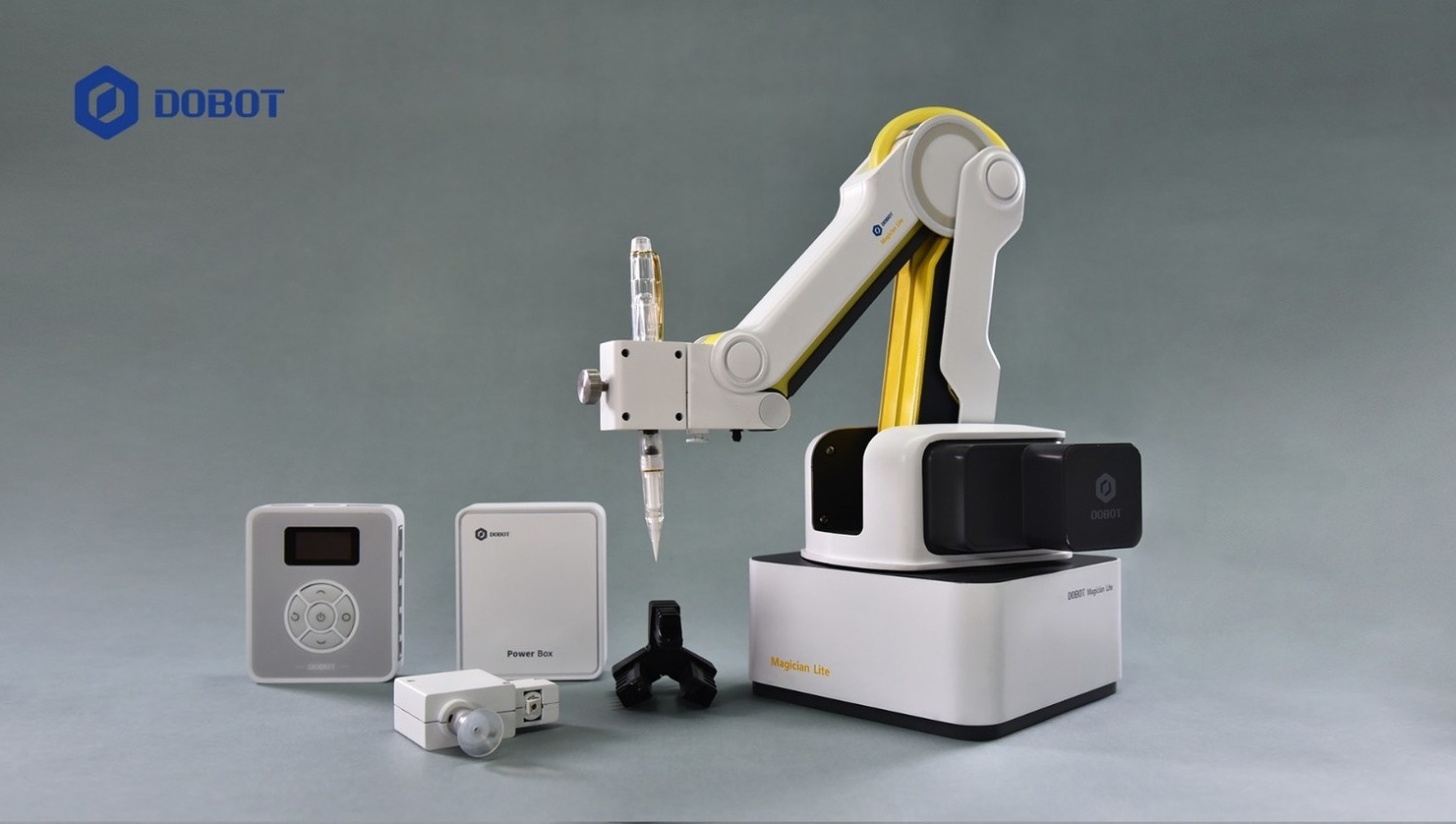

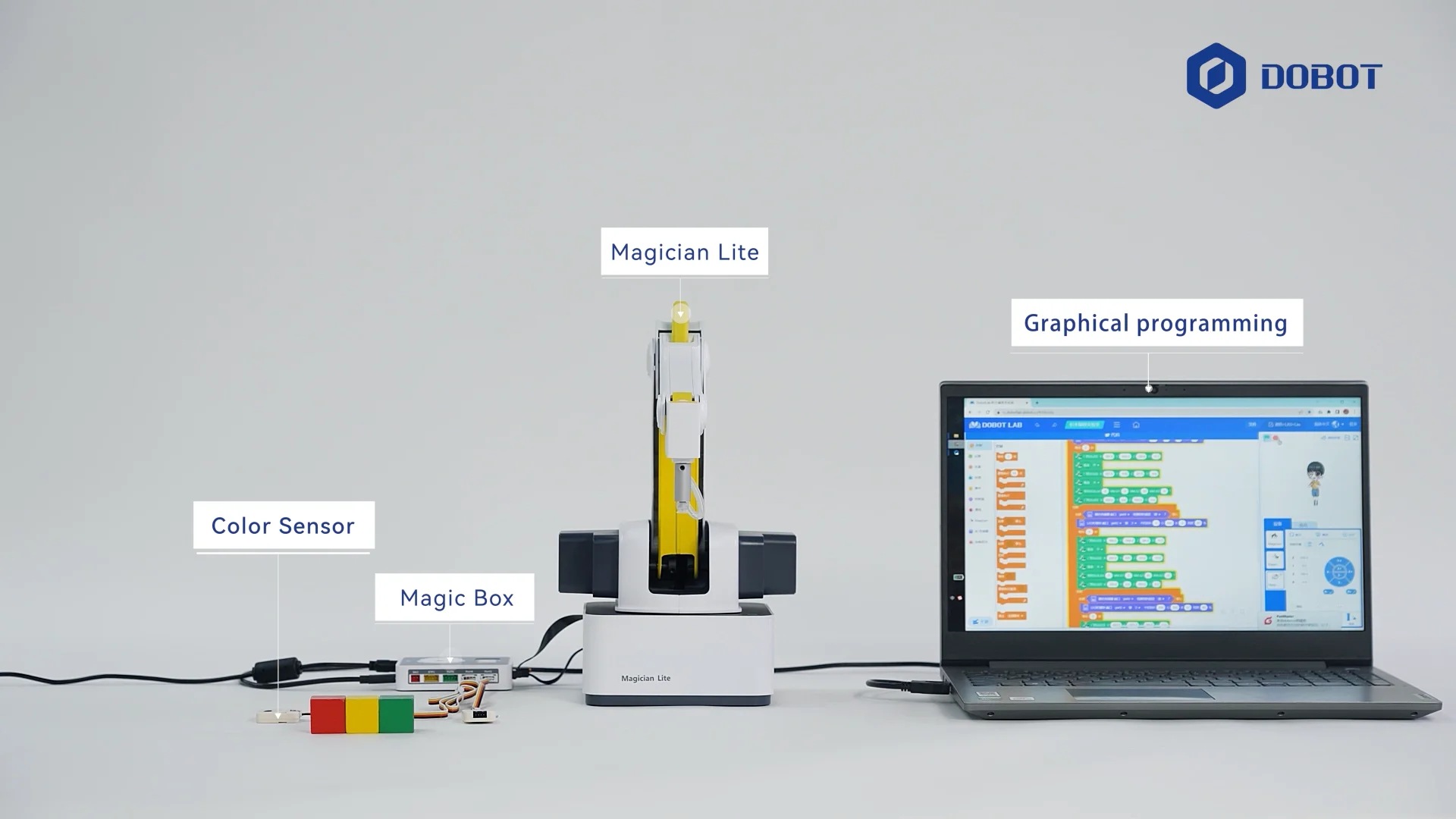

The Dobot Magician Lite features an external controller called “Magic Box” that separates the motion control algorithm and user tasks to allow more convenience for programming and creating. The robot supports Bluetooth and Bluetooth connections. 12 expansion interfaces ensure maximum openness and compatibility.

More Information
Technical Specifications

DOBOT Magician Lite

  • Degree of Freedom: 4
  • Max Load: 250g
  • Max Reach: 340mm
  • Repeatability: ±0.2mm
  • Voltage: 100V-240V AC,50/60 Hz
  • Power Input: 12V ~ 5A DC
  • Working Environment: -5°C ~ 45°C
  • Power: 60W Max
  • Communication: USB Virtual Serial Port / Serial Port
  • Software: DobotStudio/DobotBlock
  • Weight: 2.4KG
  • Rear Arm/Forearm: 150mm
  • Base Size: 146mmx146mm

Magic box

  • MCU: ARM 32-bit Cortex-M4
  • Main Frequency: 168MHz
  • Working Environment: -5°C ~ 45°C
  • Power: 60W Max
  • Communication: USB Virtual Serial Port/Serial Port/Bluetooth
  • Programming Language: MicroPython
  • Software: DobotStudio/DobotBlock
Write Your Own Review
You're reviewing:Dobot Magician Lite
  • 1 x DOBOT Magician Lite Robotic Arm
  • 1 x Suction Cup Kit
  • 1 x Soft Gripper
  • 1 x Writing and Drawing Kit
  • 1 x Camera Kit
  • 1 x Power Box
  • 1 x Magic Box Controller
  • RobotLAB Start-up Instructions and Support
