3DMakerpro 3D Scanners and LiDAR Scanning Systems
3DMakerpro develops accessible 3D scanning systems for applications ranging from professional surveying and large-scale reality capture to reverse engineering, product design, digital archiving and everyday 3D printing. The range includes long-distance LiDAR scanners for buildings, construction sites and outdoor environments, alongside compact handheld scanners for components, sculptures, collectables and detailed physical objects.
Professional users can choose from the Raven, Hawk and Eagle LiDAR platforms, which combine mobile mapping, SLAM positioning and long-range point-cloud capture. Makers, designers, educators and small businesses can instead choose from the Fox, Moose and Seal handheld scanners, with options covering affordable object capture through to high-resolution blue-light scanning.
Whether the requirement is recording an entire building, creating an engineering reference model or preparing a small object for 3D printing, the 3DMakerpro range provides a scanner suited to the scale and level of detail required.
3DMakerpro LiDAR Scanners
The 3DMakerpro LiDAR range is designed for mobile scanning of rooms, buildings, streets, construction areas and other large environments. These systems combine long-range laser measurement with SLAM tracking, integrated displays and colour imaging to create point clouds, digital twins, site records and visual reconstructions.

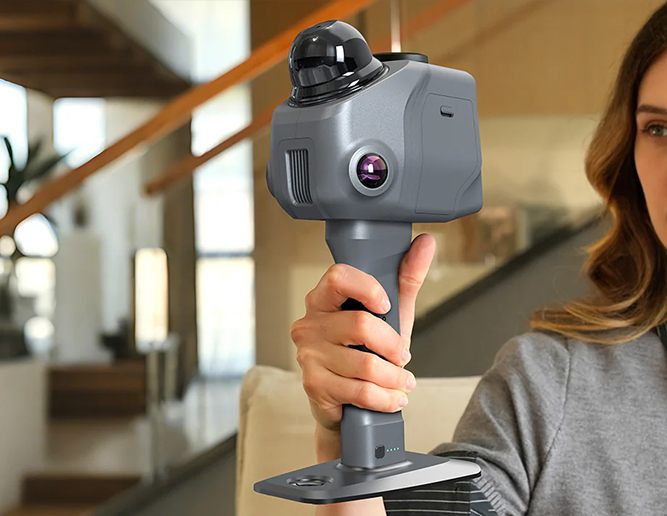

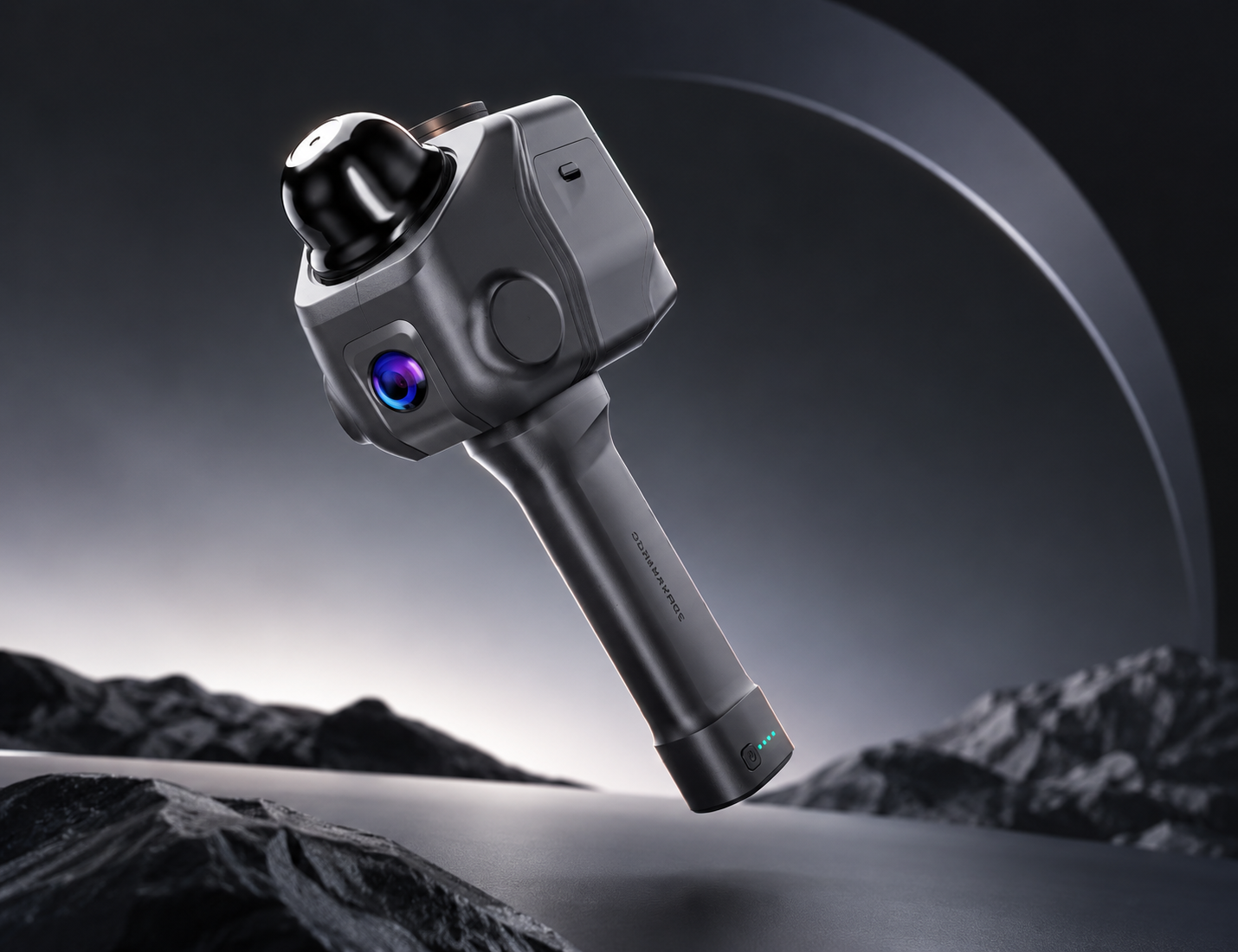

3DMakerpro Raven LiDAR 3D Scanner
The 3DMakerpro Raven is a portable handheld LiDAR scanner for capturing buildings, interiors, outdoor sites and other large physical environments. It combines SLAM positioning, a wide 360° field of view and integrated colour imaging to support point-cloud capture, digital-twin creation, construction documentation and spatial visualisation.
Raven is available in Standard, Max and Max RTK configurations. Raven Standard includes one 12MP colour camera, while Max adds a second 12MP camera for broader visual coverage. Max RTK also adds real-world positioning for projects that require georeferenced scan data.
- Scanning range: 80–100m
- Point-cloud frequency: 150,000 points per second
- Battery life: Up to 2 hours
- Weight: Approximately 1.1kg

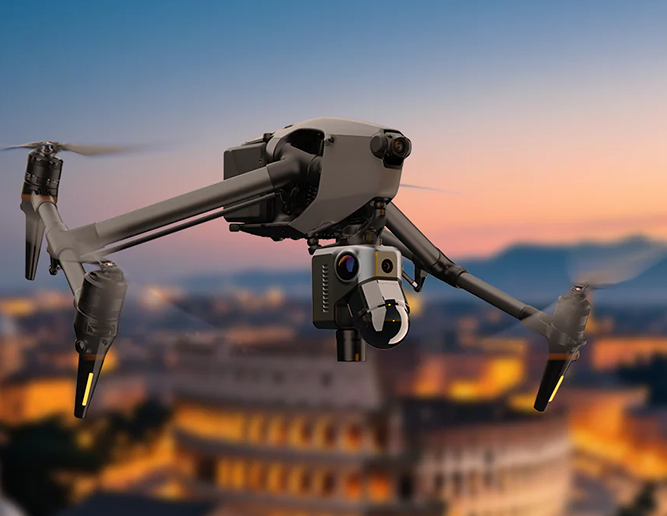

3DMakerpro Hawk Professional LiDAR Scanner
The 3DMakerpro Hawk is a professional mobile mapping system for surveying, construction, industrial inspection and large digital-twin projects. Its hybrid solid-state LiDAR engine captures dense spatial data while dual 13MP colour cameras and NIR visual tracking improve colour coverage and positioning across complex environments.
Hawk is suited to professional workflows where capture density, environmental protection and flexible mounting are important. It can be operated by hand or integrated with compatible tripods, vehicles and other mobile platforms.
- Scanning range: 80–140m
- Point-cloud frequency: 480,000 points per second
- Battery life: Up to 1 hour per battery
- Weight: Approximately 900g

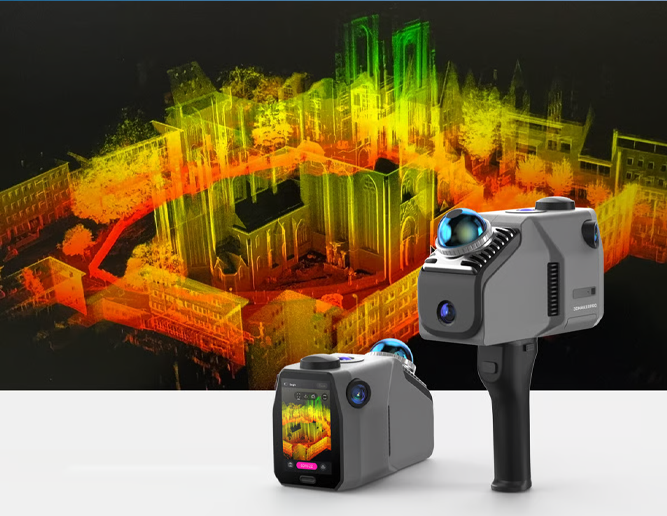

3DMakerpro Eagle LiDAR 3D Scanner
The 3DMakerpro Eagle combines long-range LiDAR capture with high-resolution panoramic imaging. It is designed for architectural documentation, virtual tours, construction monitoring, digital twins, film production and other projects that require both measurable geometry and detailed colour information.
Eagle Standard uses one 48MP fisheye camera, while Eagle Max uses four 48MP cameras for more complete 8K panoramic coverage. RTK-equipped versions are also available for projects that require positioning data and alignment with real-world coordinates.
- Scanning range: 80–140m
- Point-cloud frequency: 200,000 points per second
- Battery life: Up to 1 hour
- Weight: Approximately 1.5kg
Handheld 3D Scanners for Objects and Components
The Fox, Moose and Seal scanners are designed for digitising individual objects rather than buildings or large environments. These compact scanners cover applications including reverse engineering, personalised products, product design, education, digital archiving, collectable scanning and preparing models for FDM or resin 3D printing.

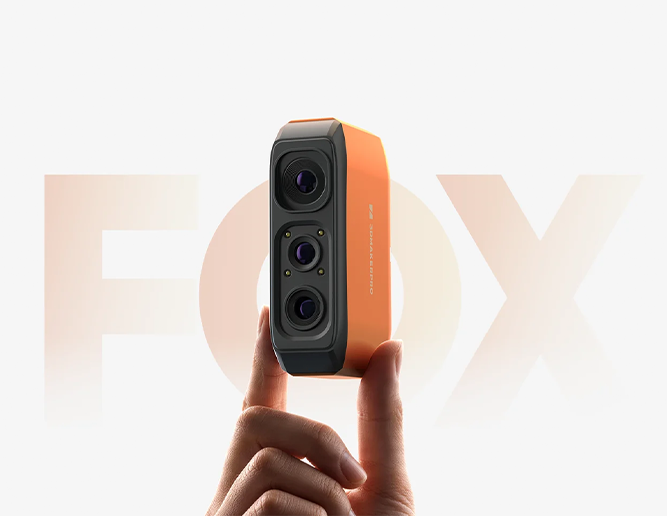

3DMakerpro Fox Handheld 3D Scanner
The 3DMakerpro Fox is an accessible handheld NIR scanner for makers, educators, small businesses and general 3D-printing users. It is suited to figurines, mechanical parts, footwear, sculptures, hands, faces and other small-to-medium objects where a straightforward scanning workflow is more important than ultra-fine industrial precision.
Fox weighs only 210g and works with the free JMStudio software for live capture, point-cloud alignment, mesh processing and model export. Its wide supported object range makes it a practical all-round scanner for everyday digitisation projects.
- Resolution: 0.10mm
- Recommended object size: 40–1,200mm
- Battery life: USB powered
- Weight: Approximately 210g

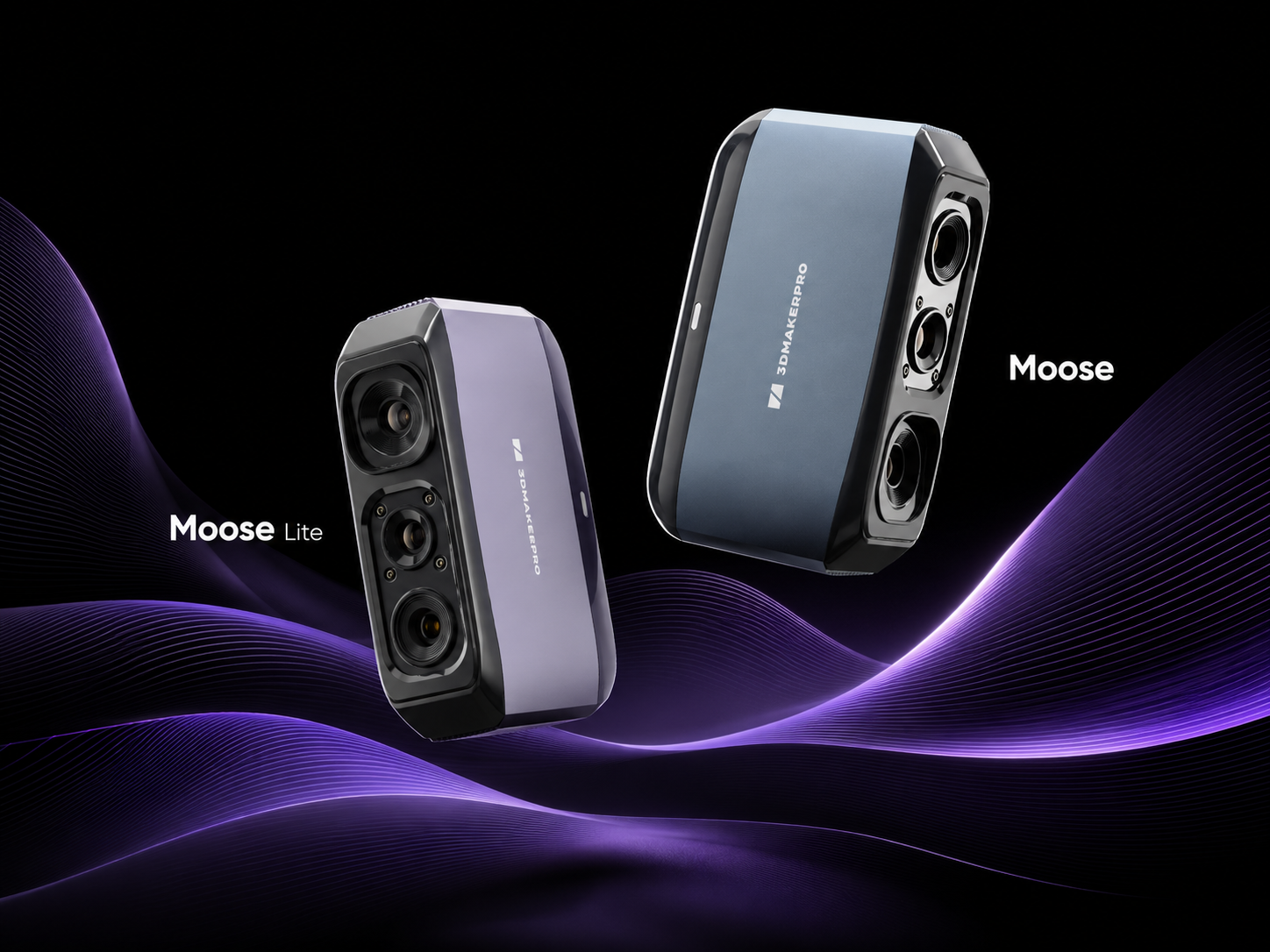

3DMakerpro Moose High-Precision 3D Scanner
The 3DMakerpro Moose is a blue-light scanner for users who need greater accuracy and surface detail across small and medium-sized objects. It is well suited to reverse engineering, product development, automotive components, sculptures, footwear, props and detailed 3D-printing projects.
Moose combines 0.03mm accuracy, AI visual tracking and 24-bit colour capture. Standard, Premium and Luxury packages are available, with higher packages adding accessories such as a turntable, tripod, carry bag and Smart Grip.
- Resolution: 0.07mm
- Recommended object size: 15–1,500mm
- Battery life: USB powered; mobile use requires Smart Grip
- Weight: Approximately 280g

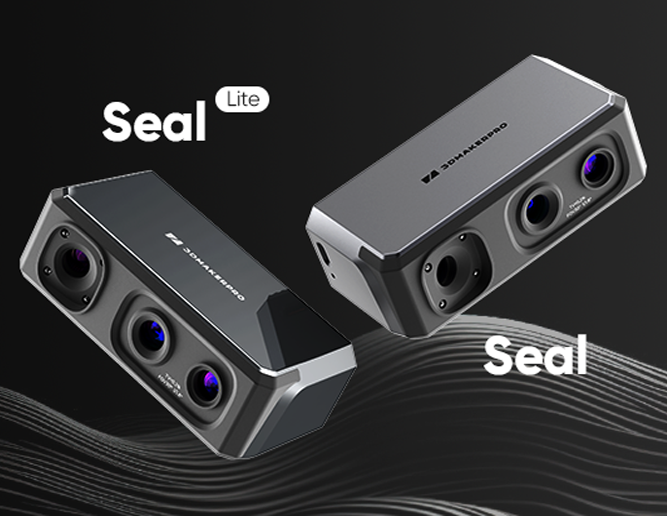

3DMakerpro Seal High-Precision 3D Scanner
The 3DMakerpro Seal is designed for highly detailed scanning of small objects, miniatures, collectables, prototypes, mechanical components and textured models. Its blue structured-light system provides accuracy of up to 0.01mm and a minimum point spacing of 0.05mm.
Seal also captures 24-bit colour texture, allowing both geometry and visible surface details to be preserved. It is the most detail-focused handheld scanner in this comparison and is best suited to controlled scanning of smaller objects where fine edges, engravings and surface features matter.
- Resolution: 0.05mm
- Recommended object size: 10–300mm
- Battery life: USB powered; mobile use requires Smart Grip
- Weight: Approximately 254g
The 3DMakerpro scanner range covers everything from lightweight object scanning to professional building and site capture. Fox provides an accessible entry point for makers and educators, Moose adds higher precision for product and engineering work, and Seal focuses on very small objects and fine surface detail. Raven, Eagle and Hawk extend the range into large-scale LiDAR scanning, supporting construction, surveying, digital twins and mobile mapping.
